Welding Table Clamps
Material:steel
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Blacken/Nitrided
Size:φ28
Brand:Lemar
Contact Us:Eva(+8615995269947/Email:evasummer@lemarmetal.com)
Precision 90° Fixation for Professional Welding Operations
[Get Factory Price →Eva summer]
✔️ 3,500+ Welding Tables Shipped Globally ✔️ 2-Year Cast Iron Warranty
WUXI LEMAR
Product Overview

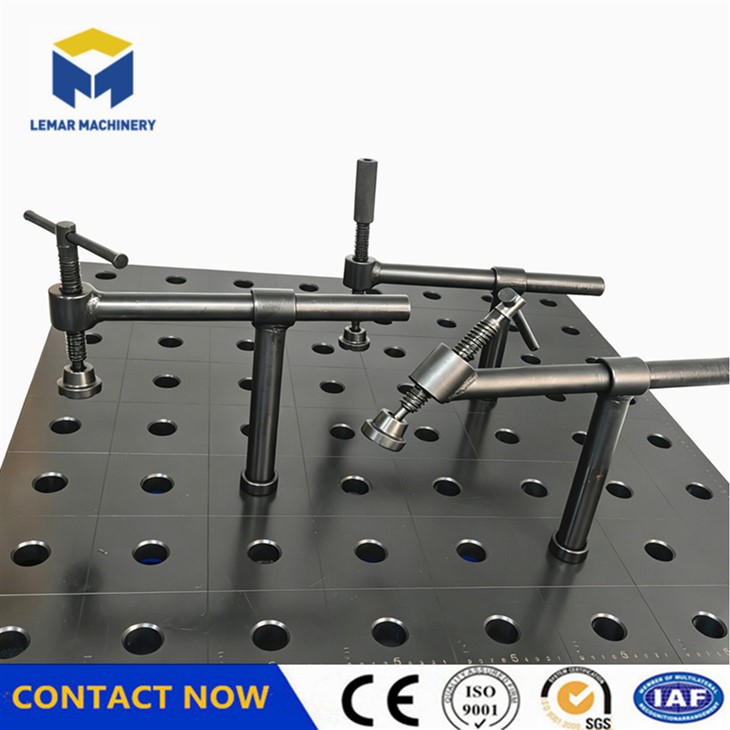

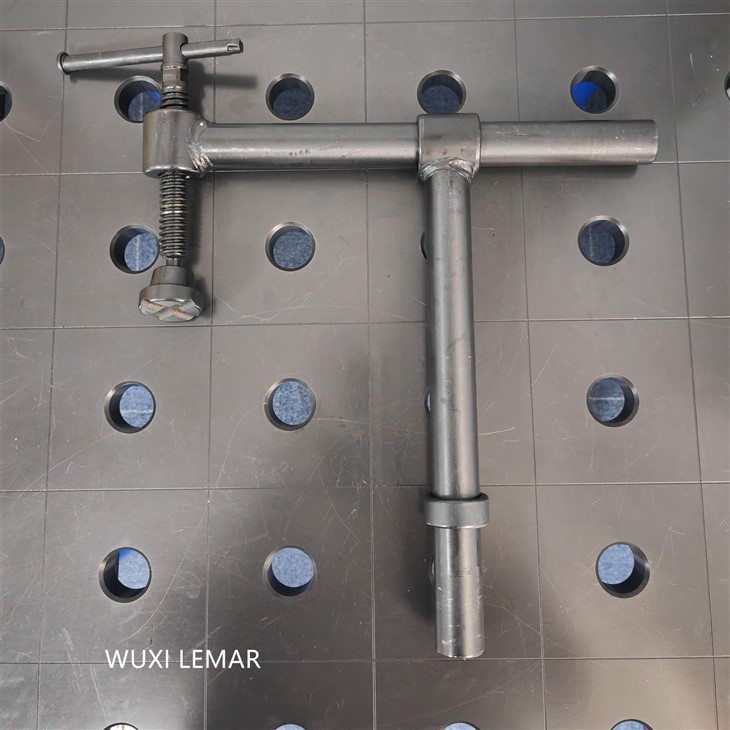

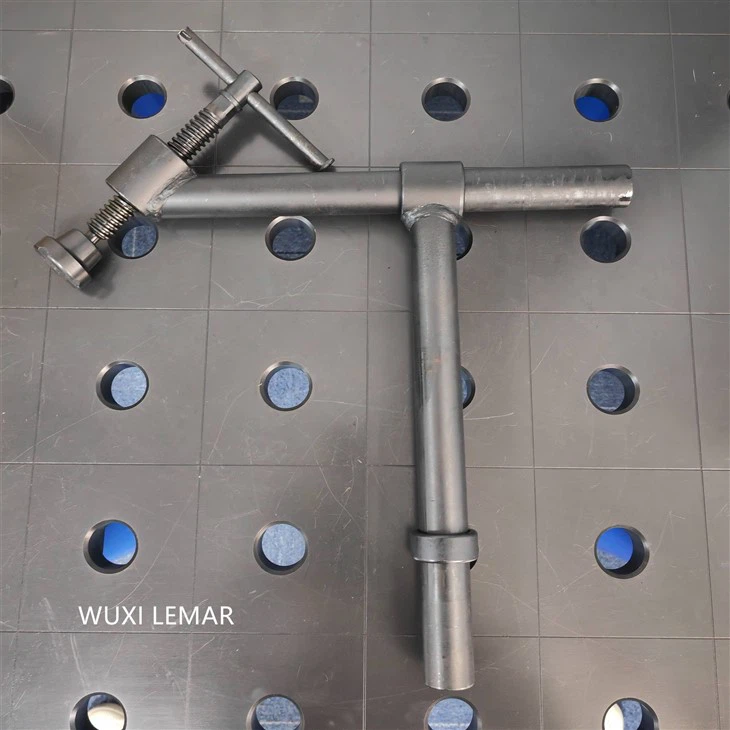

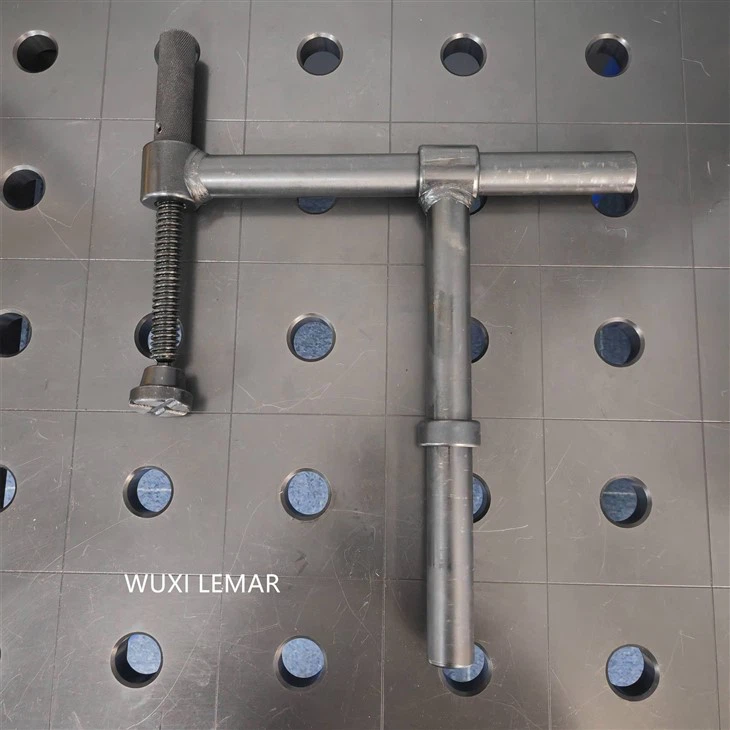

The D28 Welding Clamping and Locating Angle is a heavy-duty, precision-machined tool designed to hold metal workpieces at an exact 90-degree angle during welding, assembly, and drilling. The "D28" designation refers to the diameter of the compatible clamping hole (28mm) and the robust structural thickness, making it suitable for medium-to-heavy fabrication tasks.
It functions as both a corner clamp and a positioning jig, ensuring that two parts remain perfectly perpendicular while you tack or seam weld. Constructed from high-strength steel, it eliminates distortion and rework caused by thermal stress or manual misalignment.
Our address:505-1 NO.8 JIEFANG WEST ROAD,LIANGXI DISTRICT,WUXI,CHINA
Phone Number:+86 159 952 699 47(Eva Summer)
Evasummer@lemarmetal.com
Products Parameters
| Name | Pictures | Size(mm) |
| Frame support seat |  |
75x50x75 |
| Positioning angle ruler |  |
175x50x75 |
| Positioning angle ruler |  |
175x50x175(Hole/Hole) |
| Positioning angle ruler |  |
175x50x175(Slot/Slot) |
| Positioning angle ruler |  |
175x50x175(Hole/Slot) |
| Positioning angle ruler |  |
275*50*175 |
Tell us size of locking pins you need, we will immediately provide you with an accurate quotation!
Products Application
Welding Fabrication Shops – Box sections, frames, brackets, and chassis assembly.
Pipe & Tube Welding – Positioning round/square tubes perpendicular to flat plates.
Automotive & Trailer Repair – Aligning roll cages, trailer hitches, and subframes.
DIY & Metal Art – Gates, railings, furniture, and sculpture frameworks.
Vocational Training – Teaching proper fit-up technique in welding schools.
Compatible with: Any standard welding table with 28mm holes (or 22-30mm via adapter sleeves). Works with magnetic clamps, toggle clamps, and G-clamps.
Products Usage
Usage Steps
Step 1: Prepare the Workbench
Secure the D28 locating angle to your welding table using 28mm locating pins or T-bolts through the base holes.
Step 2: Position Workpiece 1
Place the first metal piece (e.g., a vertical plate) firmly against one face of the angle.
Step 3: Position Workpiece 2
Place the second piece (e.g., a base plate) against the other face of the angle. Ensure both pieces are flush with the reference edges.
Step 4: Clamp
Use F-clamps, locking pliers, or the side threaded holes to secure both pieces to the angle block. Do not rely on magnetism alone for heavy parts.
Step 5: Tack Weld
Weld two small tack welds on opposite corners of the joint. Wait 5–10 seconds for cooling.
Step 6: Remove & Final Weld
Release clamps, lift the angle block, then complete the full weld seam. The part will retain 90° accuracy.
Shipping & Packaging
Secure Packaging: Our welding table fixtures are shipped in a heavy-duty wooden crate with foam padding to prevent movement and damage during transit.
FAQ
Q1.Is the D28 angle left-handed or right-handed?
Q2.Will weld spatter stick to the surface?
A:Minimal. The anti-spatter coating reduces adhesion. For best results, apply a thin layer of anti-spatter spray before use. Spatter that does stick can be removed with a putty knife.
Q3.What is the maximum material thickness this can clamp?
Q4.Does this include clamps or pins?
Q5.Can I use this for aluminum welding?
📞 Contact our sales team today for a customized quote.
📧 Email: evasummer@lemarmetal.com
📞 Phone: +86 159 9526 9947
🌐 Online Inquiry:www.lemarmachine.com/modular-welding-table
*All Lemar products come with a 12-month warranty against manufacturing defects. Bulk and OEM orders are welcome.*
