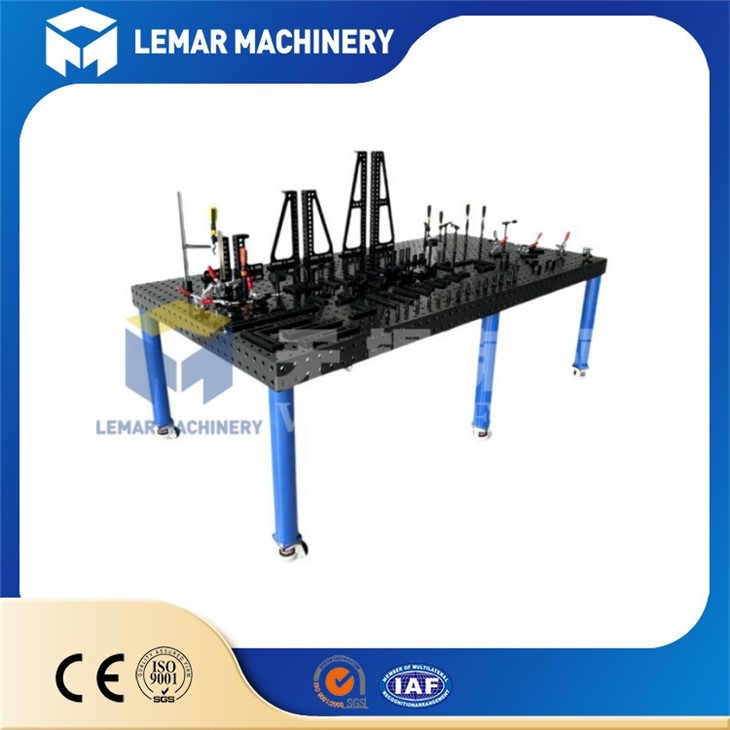

3D Welding Work Table
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
Products Description

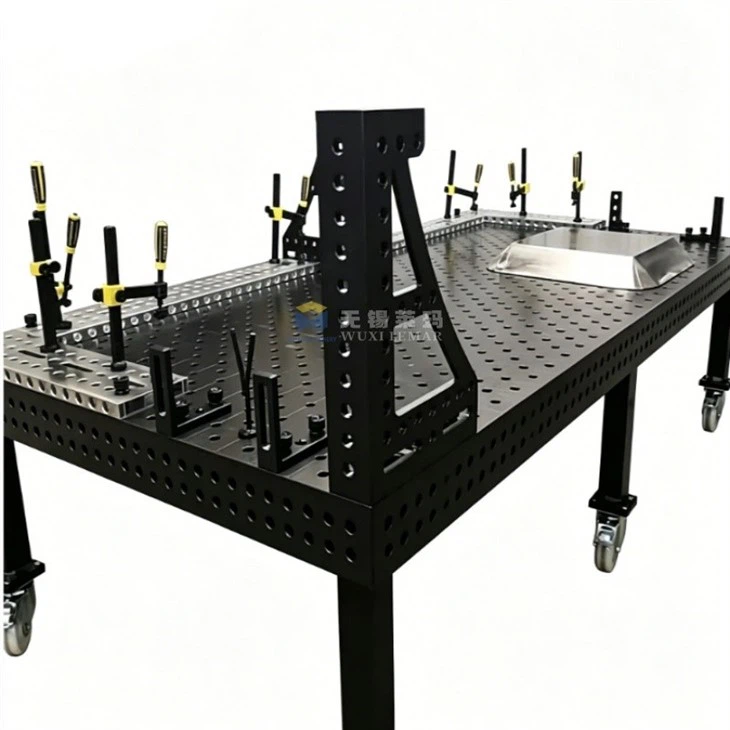

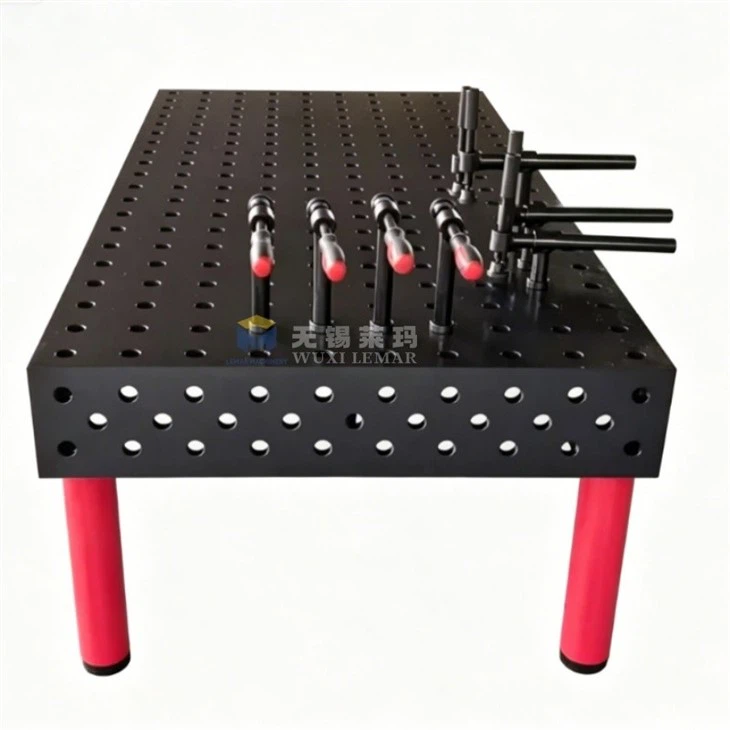

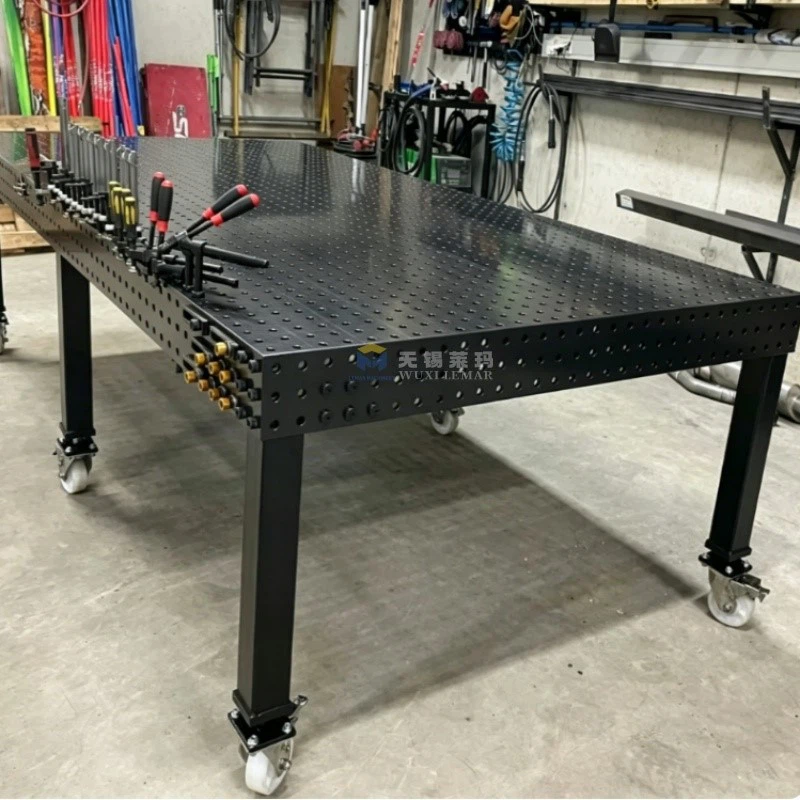

The 3D Welding Work Table is a modular, high-precision, and reconfigurable spatial positioning platform for welding applications. Its core design features precision-machined surfaces on all five sides, integrated with a standardized grid of reference holes; when combined with an extensive array of fixturing components, it enables comprehensive spatial positioning and clamping across the X, Y, and Z axes, thereby replacing traditional "one-fixture-per-workpiece" rigid tooling.
Key Technical Parameters
- Material: HT300 Cast Iron (wear-resistant, low internal stress) or Q345 Steel (high strength); the surface typically undergoes gas nitriding treatment, achieving a hardness of HRC 35–45, offering resistance to welding spatter and deformation.
- Hole System Standards (Two Mainstream Types):
- D28 (φ28mm): Hole spacing of 100 × 100 mm; suitable for heavy loads and large workpieces (heavy machinery, vehicle frames).
- D16 (φ16mm): Hole spacing of 50 × 50 mm; suitable for precision applications and small-to-medium-sized parts (sheet metal fabrication, robotic welding).
- Precision: Flatness of 0.1 mm/1000 mm; hole positioning accuracy of ±0.03 to ±0.1 mm; positioning and clamping are possible on all five faces.
- Dimensions: Standard sizes include 1000 × 2000 mm and 1500 × 3000 mm; the units can be seamlessly spliced together to accommodate oversized workpieces.

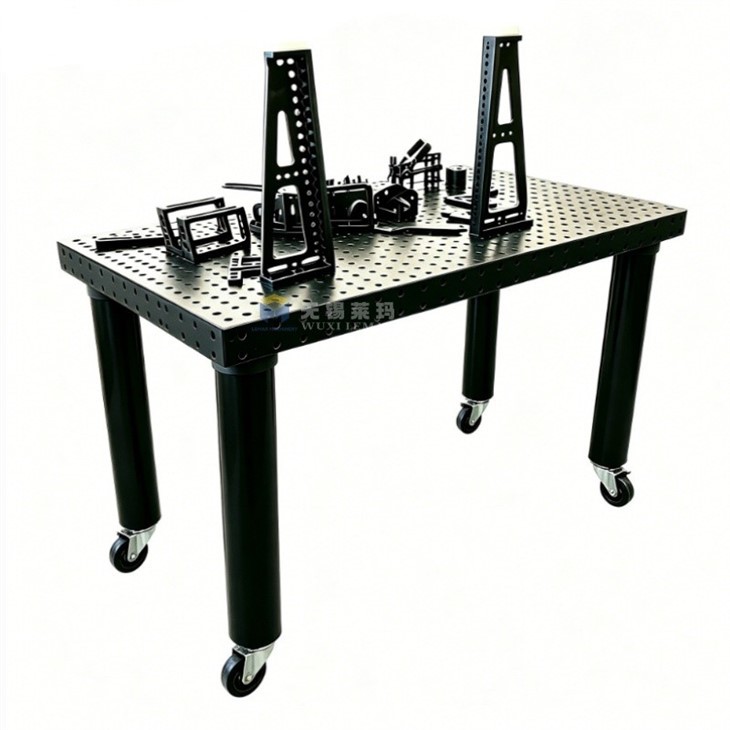

Modular Fixture System

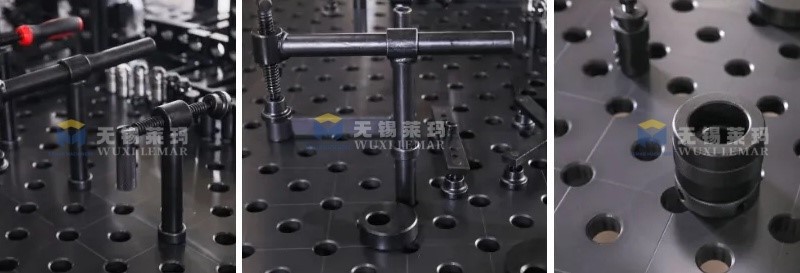

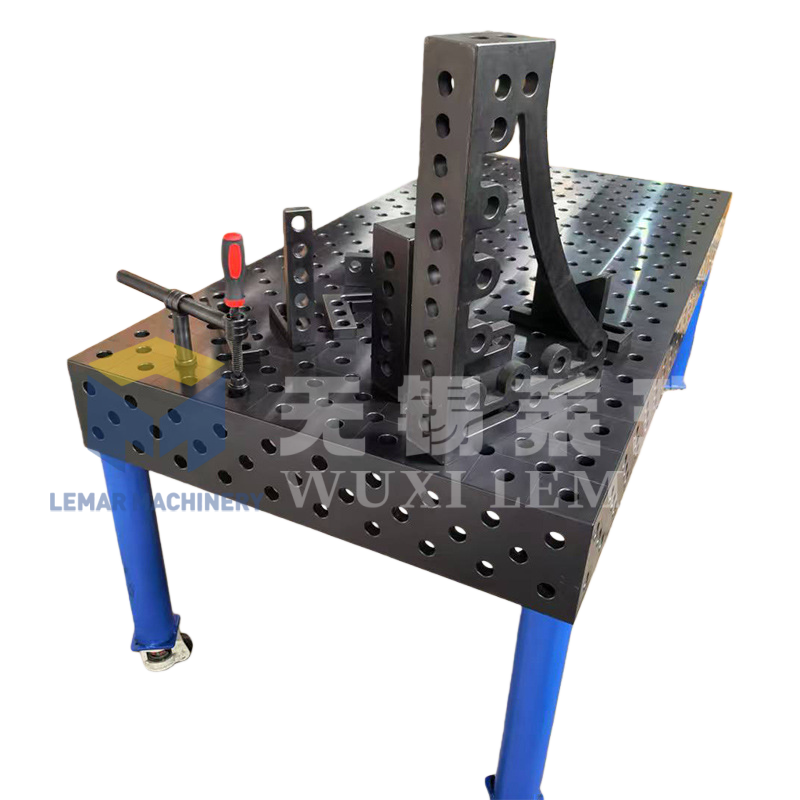

Positioning Components: Locating pins, right-angle blocks, V-blocks, datum angle plates.

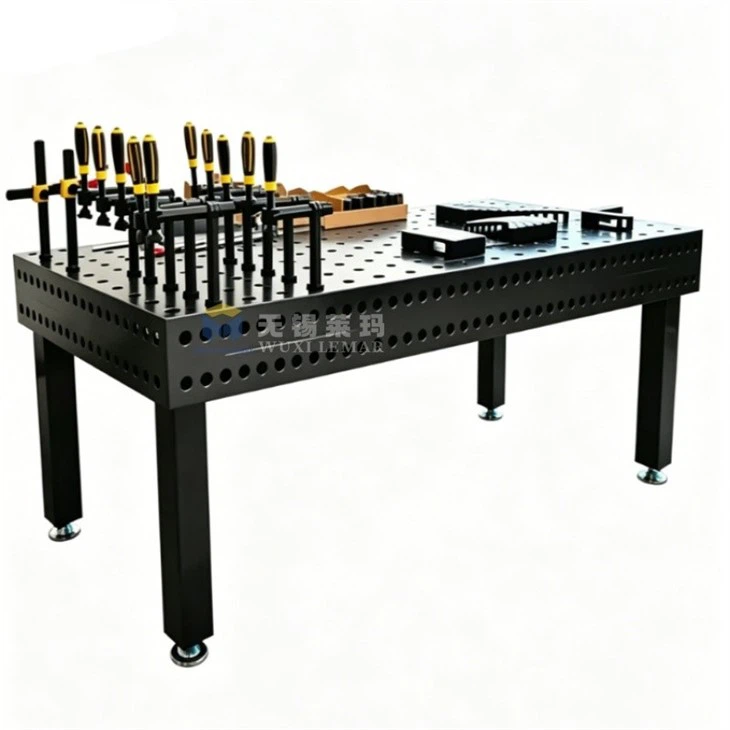

Clamping Components: Quick clamps, screw clamps, hydraulic clamps, chain tensioners.
Support Components: Adjustable support columns, height blocks, extension platforms.
Connecting Components: Heavy-duty locking pins (featuring triple-ball locking for stable, repeatable positioning), connecting rods, corner connectors.
Typical Application Industries

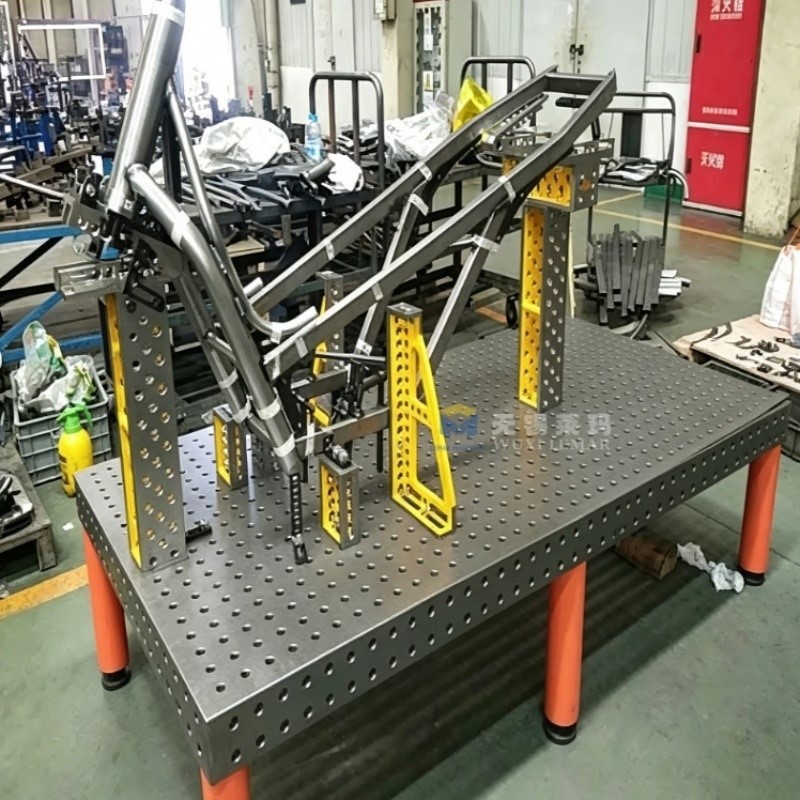

- Automotive / Construction Machinery: Frames, Axles, Cabs, Structural Component Welding.
- Rail Transit: Carbody Frames, Bogies, Seat Frames.
- Aerospace: Precision Frames, Thin-Walled Structures, Jigs & Fixtures.
- Sheet Metal / Enclosures: Cabinets, Racks, Welded Assemblies.
- Robotic Welding: Flexible Workstations, Precision Positioning for Batch Parts.
Quality Certificate
Contact Us
Company profile
Established in 2005, LEMAR MACHINERY is a professional Chinese manufacturer of welding equipment. We began with welding positioners, roller frames and manipulators, and extended our product line to CNC drilling machines, 3D welding tables and flexible tooling in 2008.
We launched global business in 2007 and upgraded products to international standards. Having obtained CE and GS certifications in 2015, we now serve over 30 countries and regions across Europe, America and beyond. Our products apply to automotive, shipbuilding, aerospace, wind power and other sectors. We strive to deliver dependable equipment and full solutions for worldwide clients.
Looking for 3D Welding Work Table? Reach out to us today for a quick quote or more details:
