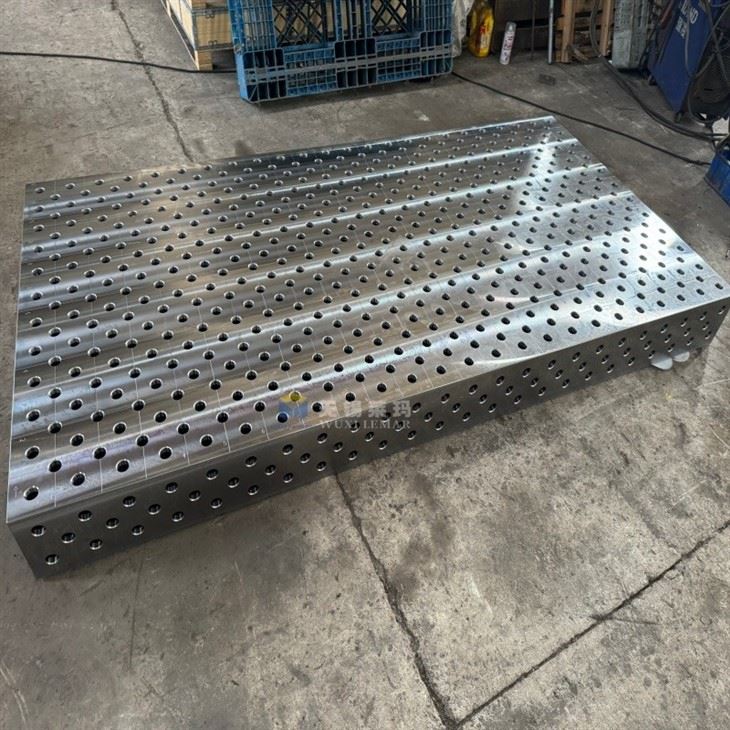

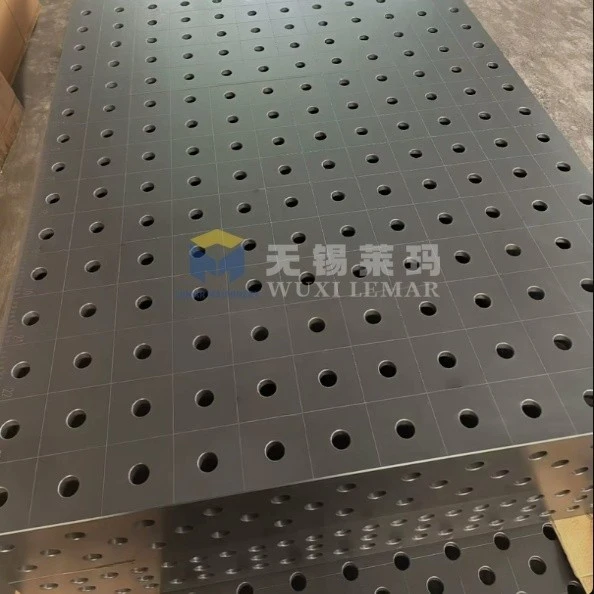

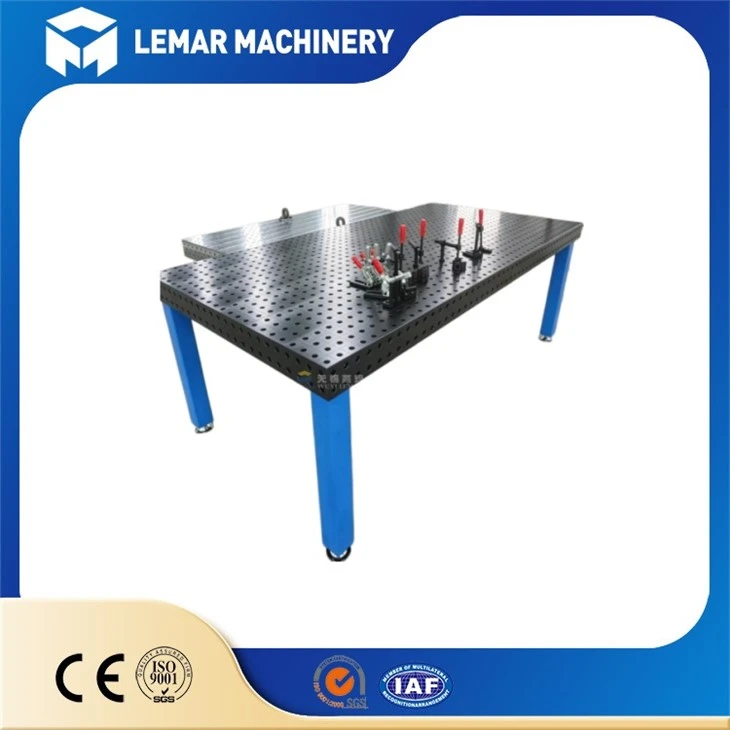

Steel 3D Welding Bench
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
Product Overview

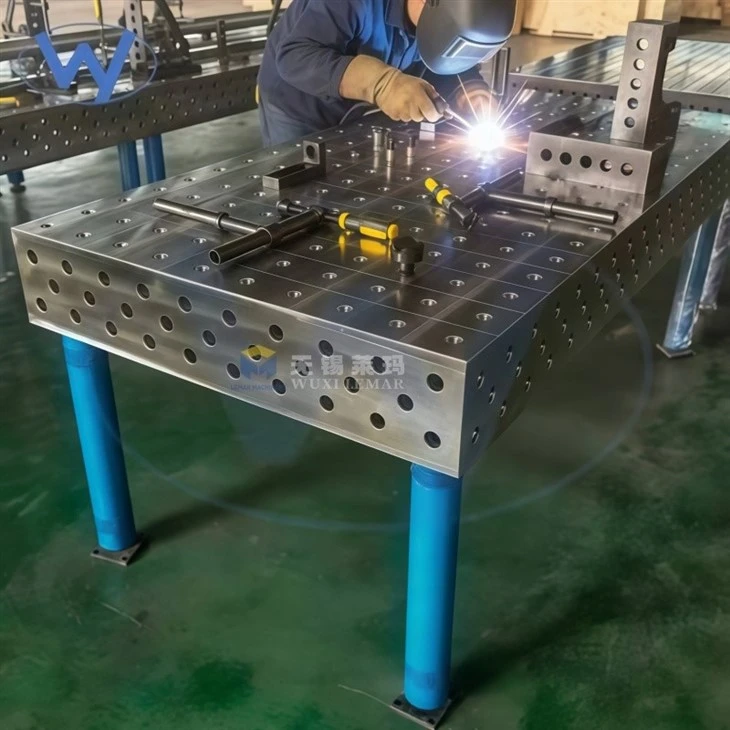

Our Steel 3D Welding Bench is a professional modular welding workstation redesigned for modern metal fabrication workshops. Different from traditional 2D flat welding tables that only support top-surface clamping, this 3D welding table adopts a full five-sided standard hole grid structure, enabling multi-angle, vertical, horizontal and suspended clamping for complex workpieces.
Widely compatible with all standard clamps, positioning pins, angle blocks, V-supports and extension connectors. It perfectly solves the pain points of traditional welding: slow positioning, poor consistency, heavy reliance on worker experience and high rework rate.
Series Specifications
Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
D28 welding table
Hole Diameter: Φ28mm(Tolerance: Φ28.065 ~ Φ28.149mm)
Internal Thread: M16
Standard Grid Pitch: 100×100mm(Tolerance ±0.05mm)
Side Working Height: Fixed 200mm
Grid Laser Scale: 1mm precision engraved
Top Panel Thickness: 25mm
Bottom Reinforcing Rib: 14–16mm
Total Table Body Height: Standard 200mm
Heavy-duty closed box grid structure, anti-bending
D16 welding table
Hole Diameter: Φ16mm(Tolerance: Φ16.065 ~ Φ16.149mm)
Internal Thread: M8
Standard Grid Pitch: 50×50mm(Tolerance ±0.05mm)
Side Working Height: 100mm / optional 200mm
Grid Laser Scale: 1mm precision engraved
Top Panel Thickness: 12mm
Bottom Reinforcing Rib: 12mm
Total Table Body Height: Standard 200mm
Whole Box-type reinforced welded structure
Product dimensions (customizable)
Core Product Advantages
Flexible, versatile, and cost-effective: A single steel welding bench replaces dozens of dedicated fixtures, saving on fabrication costs and storage space.
Stable precision and reduced rework: A unified reference hole pattern minimizes dimensional errors across batches, reducing the need for post-welding corrections.
Significantly improved efficiency: Changeover speeds increase by over 70%, and R&D prototyping cycles are shortened.
Lightweight and scalable steel design: Platforms can be joined to infinitely expand the working area and are easy to assemble and disassemble.
Durable and easy to maintain: The nitrided surface resists weld spatter and wear, while individual damaged sections of the steel plate can be replaced separately.
Products Description
Certification & Factory Inspection
Transport packaging
contact us
Please note when sending inquiry:
I need a platform size: ______ mm × ______ mm,
mainly used for welding ________ (workpiece type).
Enhance your welding efficiency by using our Steel 3D Welding Bench!
Contact Amy directly for more details.
