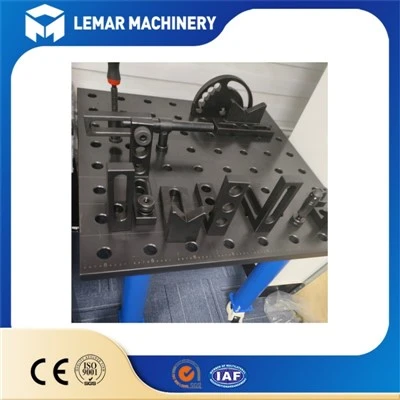

Top Quality Welding Table
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
Products Description
who we are?
Distinguished from ordinary, basic welding benches, our Top Quality Welding Tables feature precision machining combined with specialized steel or cast iron, enhanced by a nitriding surface hardening process. Utilizing a standard grid hole system and a comprehensive suite of modular fixturing components, these tables eliminate the need for custom-fabricated tooling, enabling rapid workpiece clamping while guaranteeing precise welding dimensions and consistent repetitive positioning. They are widely utilized across industries such as precision equipment manufacturing, construction machinery, automotive frame production, custom sheet metal fabrication, and robotic welding production lines.
high quality
Advanced Equipment
Professional Team
One-Stop Solution
Core Material
T300 High-Grade Cast Iron Model
- Manufacturing Process: Integral sand casting → High-temperature stress-relief annealing + Natural aging for over 60 days; this process completely eliminates internal stresses, ensuring the table remains free from deformation or warping under long-term heavy loads.
- Surface Treatment: The surface of this "Top Quality Welding Table" undergoes a nitriding treatment. The surface layer achieves a hardness of HV550–700, providing effective resistance against welding spatter adhesion, rust, and wear-a standard feature for high-end welding tables.
Q355 Low-Alloy Steel Plate (Weldable Grade)
- Base Material: Q355B high-strength steel plate-featuring a fully welded tabletop assembly with thickened, reinforced ribs-specifically designed for heavy-duty steel structures and capable of supporting oversized workpieces (exceeding 3 tons).
- Thickness: 12/25mm thickened panel. Offers superior load-bearing capacity compared to cast iron, along with enhanced impact resistance; the preferred choice for welding applications in heavy industry and mining equipment manufacturing.
High-precision critical parameters
Flatness: ≤ 0.1mm/1000mm (ordinary miscellaneous brands>0.3mm/m, which is a high-quality core distinguishing point)
Hole position accuracy: hole center distance tolerance ± 0.03~± 0.05mm, hole diameter tolerance H7 precision level, fixture pin without clearance, smooth insertion and removal
Mainstream pore system specifications
- D16 system: Φ 16 positioning hole, grid spacing 50mm standard module, lightweight precision small parts, sheet metal, automated fixtures
- D28 system: Φ 28 positioning hole, grid spacing 100mm standard module, heavy-duty steel structure, large frame, engineering machinery
Conventional finished product dimensions (mm): 1000 × 1000, 1200 × 1000, 1500 × 1000, 2000 × 1000, 3000 × 1500. Multiple top quality welding tables can be spliced to expand the large workbench surface
Standard platform height: 630mm, optional adjustable support feet, and a mobile base with rollers.
Company advantages
Quality Certificate
FAQ
Q: Can I customize table size?
A: Yes, all dimensions can be customized based on your workshop requirement.
Q: What trade terms can you accept?
A: We support FOB, CFR, CIF, DDP according to clients' request.
Q: Is after-sales service available?
A: We provide long-term technical guidance and spare parts supply for all purchased products.
Q: Does the order include full set of fixtures?
A: We offer different package options: table only, or table with complete matched clamping accessories.
Q6: How about delivery lead time?
A: Standard stock items ship within 7–15 working days; customized orders take 20–30 days.
