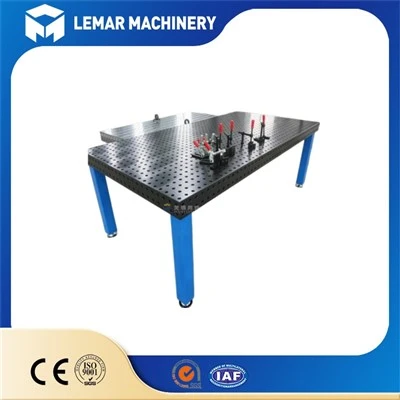

Heavy Duty Welding Worktable
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
product introduction
|
|
The Heavy Duty Welding Worktable (Technical Inert Gas Welding) is a heavy-duty welding worktable specifically designed for MIG (Metal Inert Gas Welding) and TIG (Tungsten Inert Gas Welding). Its core features include providing a stable, high-temperature resistant, and precise clamping platform, suitable for precision and heavy-duty welding scenarios. Applications include: mass production in workshops, equipment maintenance, welding of metal structural components, precision sheet metal processing, and assembly of heavy workpieces.
Large enterprise scale
wide application of technology
high-quality customized services
Product Series
D16 series
Hole Diameter: φ16.065–φ16.149 mm
Grid Pitch: 50×50 mm (±0.05 mm)
Table Thickness: 14–17 mm
Load Capacity: Standard 2T, Frame 5T
Flatness: 0.1 mm/m
Application: Small precision parts, sheet metal, multi-variety small batch
D28 series
Hole Diameter: φ28.065–φ28.149 mm
Grid Pitch: 100×100 mm (±0.05 mm)
Table Thickness: 23–27 mm
Load Capacity: Standard 2–5T, Heavy Duty 10T+
Flatness: 0.1 mm/m
Application: Heavy equipment, large structural parts, robot welding lines
| Dimensions (length × width) | Countertop material | load-bearing capacity | Casters |
| 1000 × 1200mm | HT300/Q355 | 1000 kg–3000 kg | Universal joint with brake (optional) |
| 1000 × 1500mm | HT300/Q355 | 1000 kg–3000 kg | Universal joint with brake (optional) |
| 1000 × 2000mm | HT300/Q355 | 1000 kg–3000 kg | Universal joint with brake (optional) |
| 1200 × 2000mm | HT300/Q355 | 1000 kg–3000 kg | Universal joint with brake (optional) |
| 1200 × 2400mm | HT300/Q355 | 1000 kg–3000 kg | Universal joint with brake (optional) |
| 1200 × 3000mm | HT300/Q355 | 1000 kg–3000 kg | Universal joint with brake (optional) |
| 2000 × 2400mm | HT300/Q355 | 1000 kg–3000 kg | Universal joint with brake (optional) |
| 1500 × 2000mm | HT300/Q355 | 1000 kg–3000 kg | Universal joint with brake (optional) |
| 1500 × 2400mm | HT300/Q355 | 1000 kg–3000 kg | Universal joint with brake (optional) |
| 1500 × 3000mm | HT300/Q355 | 1000 kg–3000 kg | Universal joint with brake (optional) |
| 2000 × 2400mm | HT300/Q355 | 1000 kg–3000 kg | Universal joint with brake (optional) |
| 2400 × 3000mm | HT300/Q355 | 1000 kg–3000 kg | Universal joint with brake (optional) |
| 4000 × 2000mm | HT300/Q355 | 1000 kg–3000 kg | Universal joint with brake (optional) |
Product video
Key advantages
1. Compatible with MIG Welding
- High Load-Bearing Capacity: MIG welding is commonly used for thick plates and heavy workpieces; the worktable can withstand heavy weight and impact.
- Heat Resistance: MIG has a high heat input; the thick steel plate worktable is not easily deformed or warped, ensuring welding accuracy.
- Fast Clamping: Positioning holes/slots are compatible with quick-clamping fixtures for efficient clamping of batch workpieces.
2. Compatible with TIG Welding
- High Precision: TIG welding is precise, thin-walled, and uses stainless steel/aluminum alloys; the flat and rigid worktable ensures uniform welds without deformation.
- Clean Environment: Rust-proof and easy-to-clean worktable reduces impurities, meeting the high cleanliness and gas protection requirements of TIG welding.
- Multi-Angle Operation: The tilting function adapts to complex positions such as flat welding, vertical welding, and overhead welding.
Main functions and configuration
- Height Adjustable: Adapts to different heights and working postures, reducing fatigue.
- Angle Adjustable: 0° flat welding, 30° angled welding, 90° folding for storage.
- Precise Clamping: Positioning holes + T-slots, compatible with various welding fixtures.
- Portable and Movable: Some models are equipped with casters and brakes for flexible movement within the workshop.
- Durable and Rust-Proof: Galvanized/powder-coated surface, corrosion-resistant and long-lasting.
- Additional Functions: Tool tray, welding torch holder, waste bin, grounding terminal (safety grounding).
Company Advantages
Service advantages
- Professional pre-sales service: We recommend suitable models based on the workpiece, welding method (MIG/TIG), and site conditions.
- Comprehensive after-sales service: We provide rapid response to quality issues and offer installation and usage guidance.
- Long-term supply of spare parts (clamps, feet, casters, etc.).
