Hexagon Thin Nut
Nuts Type:Hex Thin Nut
Thread:Insert
Raw Material:Stainless Steel
Products Description
Hexagon thin nut is a nut that is relatively thin and small in design and is usually used in applications where space or weight need to be saved. The main feature of thin nuts is their thin thickness, which is usually used for the fixing of connected parts, but does not take up as much space as traditional nuts.
Products Parameter

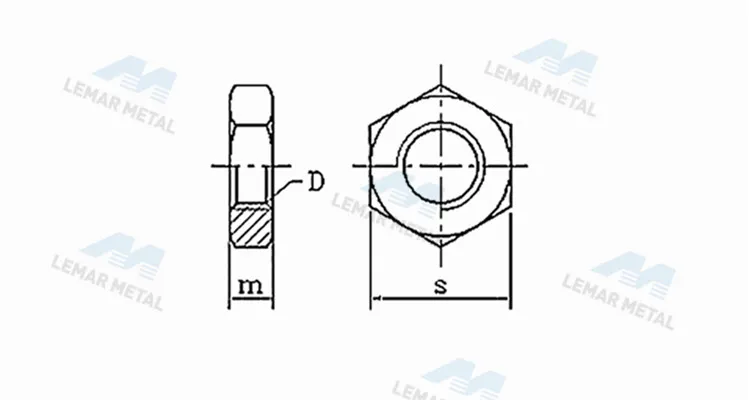

| D | m | s |
| M3 | 1.8 | 5.36 |
| M4 | 2.15 | 6.85 |
| M5 | 2.7 | 7.9 |
| M6 | 3.1 | 9.9 |
| M8 | 3.8 | 12.8 |
| M10 | 4.9 | 16.9 |
| M12 | 5.8 | 18 |
Not all specifications are listed, please contact us for details
Products advantages
It has the following characteristics
High strength and corrosion resistance
Hexagon thin nuts are usually made of 304 or 316 stainless steel material, these materials have high strength and good corrosion resistance, suitable for a variety of harsh environments .
Wide application range
Due to its excellent mechanical properties and corrosion resistance, the nuts are suitable for a variety of industrial and mechanical equipment, such as chemical industry, fertilizer, sulfuric acid, etc.
Easy installation
The installation process of thin nut is relatively simple, does not require complex drilling operation, the success rate is high, and fewer problems encountered in the installation process .
FAQ
What are the different standard for selecting thin nuts?
1. Japanese standard
The Japanese standard thin nut size mainly refers to JIS B1190, and the thin nut with a nominal diameter less than M16 is JIS B1190, and the thin nut with a nominal diameter greater than M16 is JIS B1196.
2. German standard
The German standard for thin nut sizes mainly refers to DIN 936-4 and DIN 439-4. Among them, DIN 936-4 specifies that M1-64-M39 is more than DIN 439-4 M1-64-M16, and the standard thickness is also larger.
3. American standards
The United States standard thin nut size mainly refers to ANSI B18.2.2, where the nominal size of less than 1/2 inch nuts are also called thin nuts.
