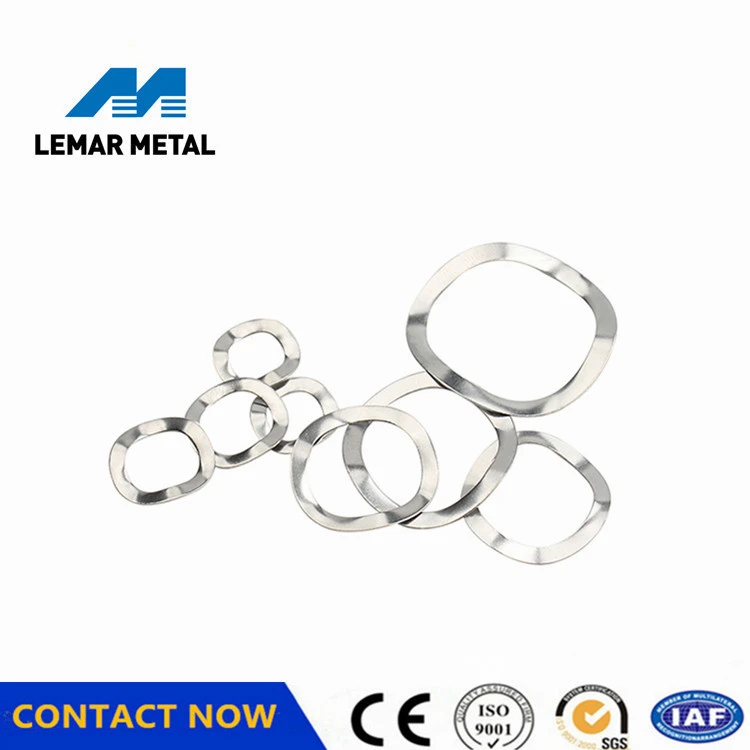

Stainless Steel Wave Washer
Material:304 stainless steel washer
Weight:7g
No.:LM-1113
Products Description
Stainless steel Wave washer is a type of washer with a specific shape. Its main function is to increase the stability of the bolt connection and prevent the bolt from loosening. Stainless steel Wave washer is a type of wave washer. There are other materials, such as carbon steel Wave Washer.
Products application
Stainless steel Wave washer is a mechanical sealing element that is usually used to fill gaps in mechanical assemblies to prevent liquid or gas leakage. They are widely used in automotive, machinery, construction, electronics, medical and other fields.
Products Description
|
Inner D |
Outside D |
Free height h≈ |
Thickness |
|
3 |
6 |
1 |
0.4 |
|
4 |
8 |
1.1 |
0.3 |
|
5 |
10 |
1.4 |
0.3 |
|
6 |
12 |
1-1.5 |
0.3 |
|
8 |
13 |
1.6 |
0.3 |
|
10 |
15 |
1.6 |
0.3 |
|
12 |
18 |
1.7 |
0.3 |
|
16 |
21 |
2 |
0.3 |
|
19 |
25 |
2.7 |
0.3 |
|
23 |
29 |
3 |
0.3 |
|
25 |
31 |
3.6 |
0.3 |
|
27 |
34 |
4 |
0.3 |
|
31 |
39 |
4 |
0.3 |
Material Introduces
Stainless steel Wave washers are usually made of 304 or 316L stainless steel, which not only have good corrosion resistance, but also can maintain stable working conditions under high temperature environments. Among them, 304 stainless steel contains more than 18% chromium, about 8% nickel and a small amount of molybdenum, titanium and other elements. It has good comprehensive performance and can resist corrosion from a variety of media.
If you need to purchase 304 stainless steel corrugated elastic washers, you can contact Wuxi Lemar Metal Products Co., Ltd. We specialize in selling various types of Wave Spring Washers, including imported wave spring washers and high elastic wave washers. Our products are widely known for their excellent quality and provide direct sales services at preferential prices.
Products Description
Hot Tags: stainless steel wave washer, China stainless steel wave washer manufacturers, suppliers, factory, Stainless Steel Wave Washer, Wave Crinkle Spring Washer, wave washer
