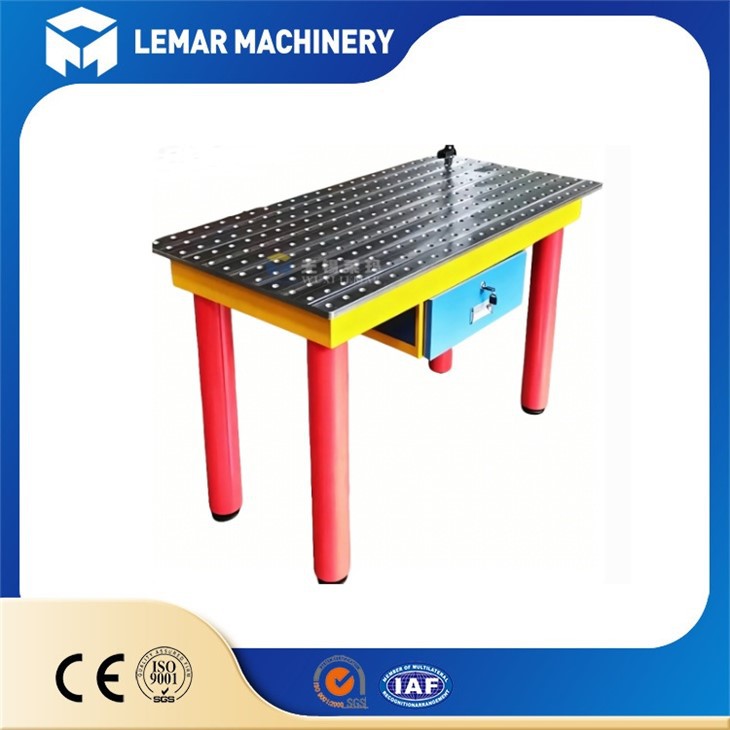

2D Welding Worktable
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
Products Description
About our product

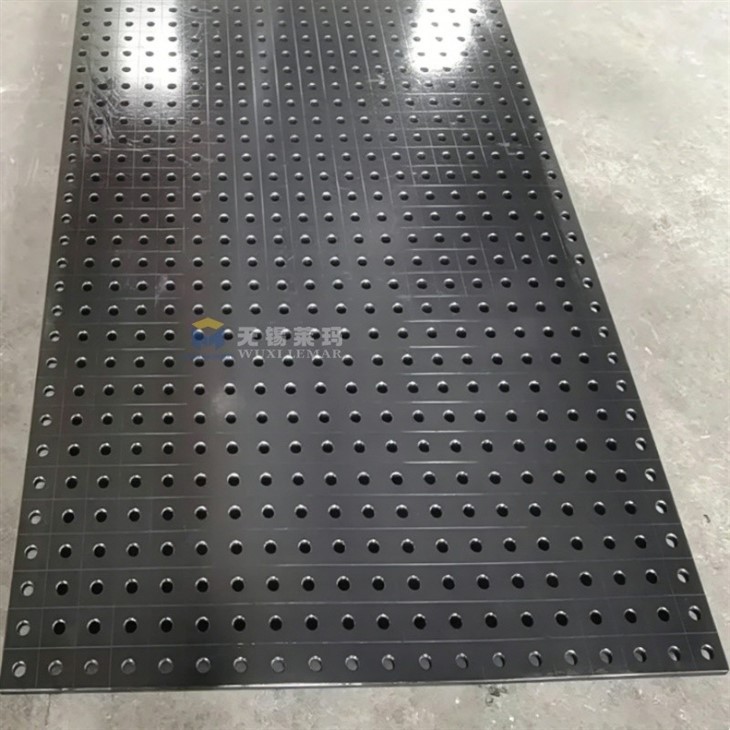

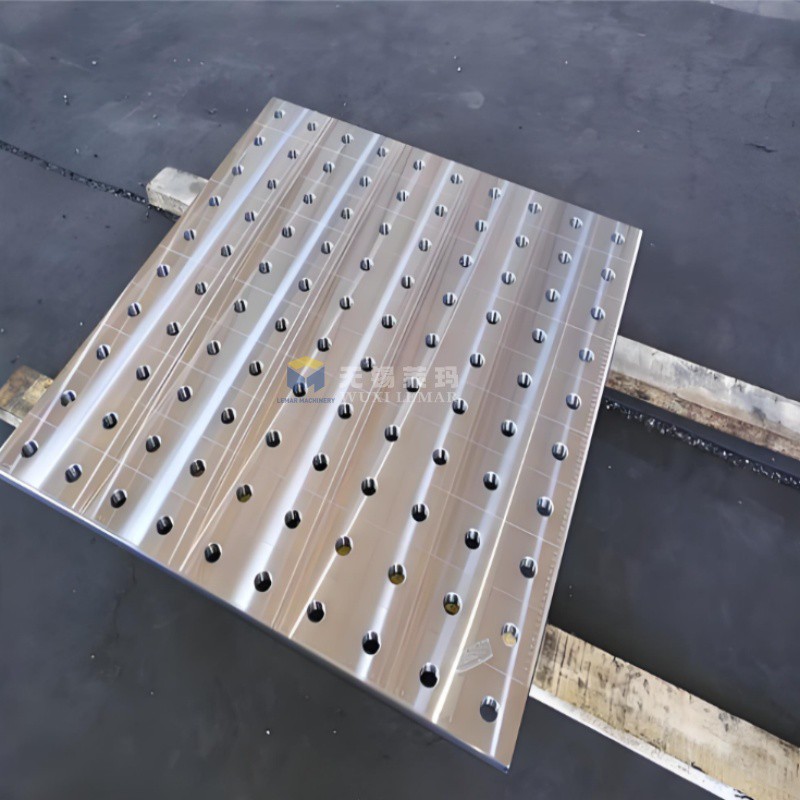

The 2D Welding Worktable is a planar positioning fixture platform designed primarily for the precise positioning and rapid clamping of workpieces within the horizontal X-Y plane. Lacking Z-axis height and spatial angle adjustment capabilities, it is optimized for applications involving planar welding, simple frame assembly, and inspection tasks.

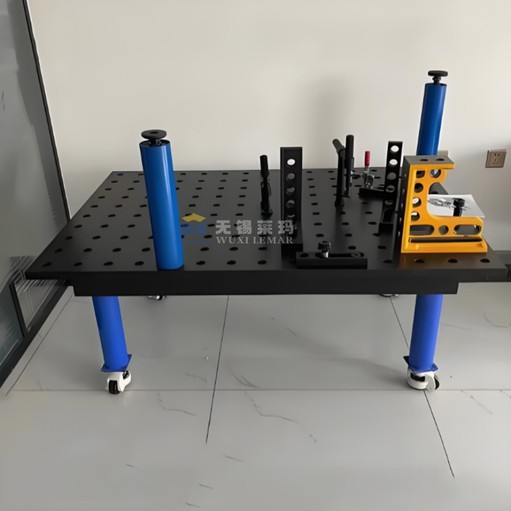

- Planar Grid Positioning: Workpieces and fixtures are precisely positioned within the X-Y plane using a standardized hole pattern, eliminating the need for custom-designed tooling.
- Modular Assembly: Fixtures are assembled using a "building-block" approach; product changeovers require only the reconfiguration of the fixtures, reducing changeover time by over 80%.

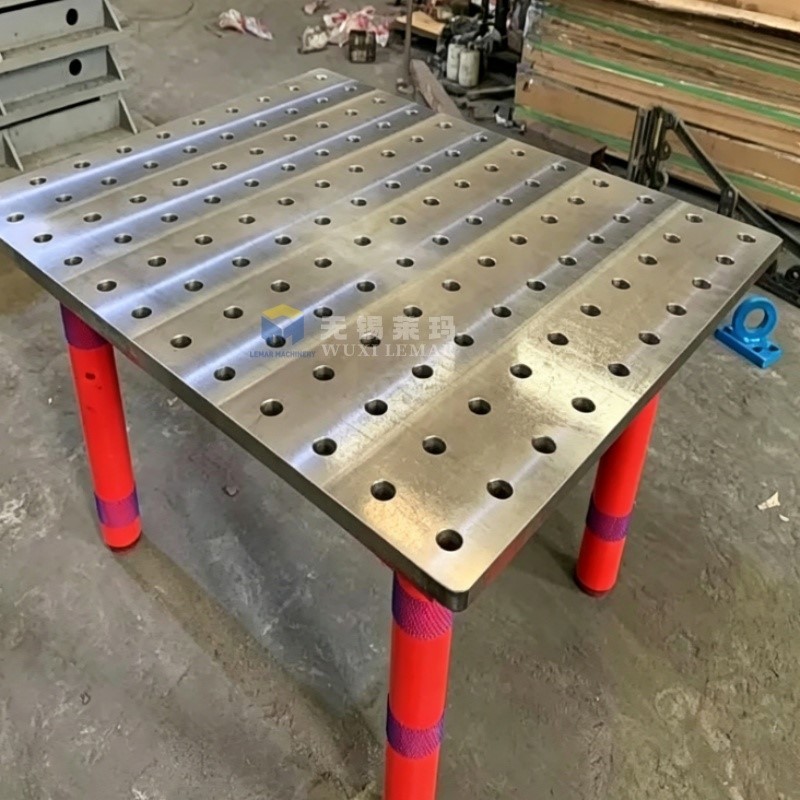

- Rigid Support: A thick work surface combined with a sturdy base effectively suppresses thermal deformation caused by welding and dampens vibrations, ensuring dimensional stability.

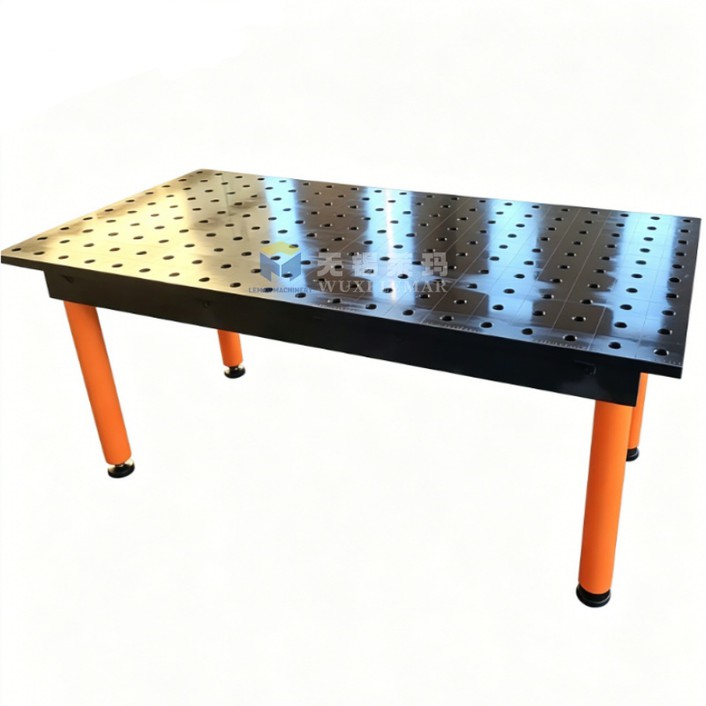

Dimensions and Specifications
- Material: Cast Iron (HT300) or Q355 High-Strength Steel; stress-relieved via aging/annealing to ensure no deformation under prolonged heavy loads or in high-temperature environments.
- Precision: Flatness ≤ 0.05 mm/m; Hole Position Accuracy ± 0.05 mm; features high repetitive positioning accuracy.

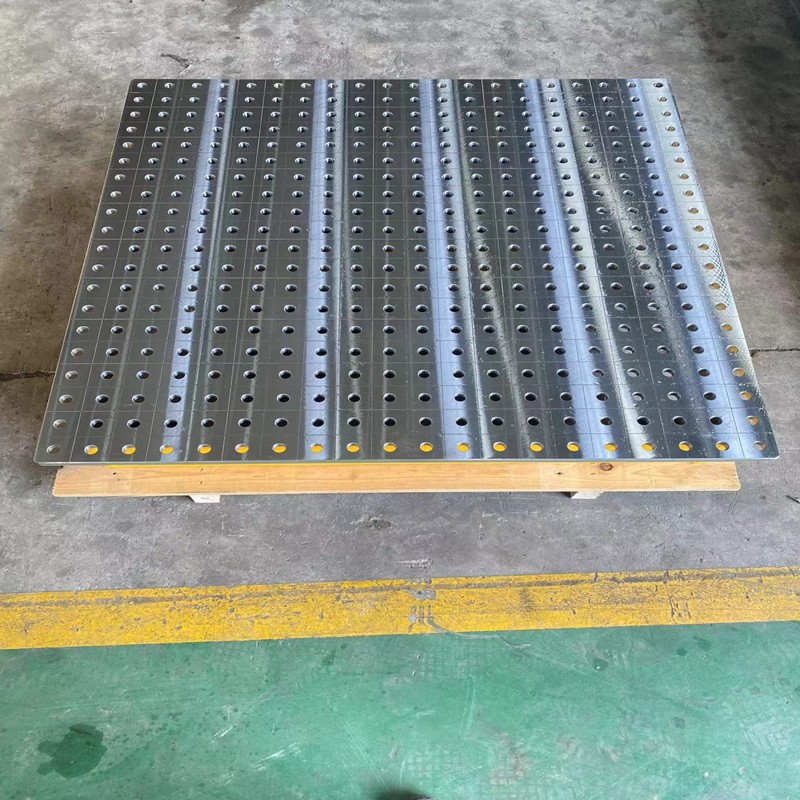

- Surface Treatment: Nitriding / Blackening / Rust Prevention; resistant to weld spatter adhesion and corrosion.
- Load Capacity: 500–5000 kg (varies based on dimensions and material).
| Length × Width (mm) | Table Top Thickness (mm) | Hole System | Static Load Capacity (kg) | |
| 1000×1000 | 150 | D16 / D28 | 1200 - 2200 | |
| 1200×800 | 150 | D16 / D28 | 1200 - 2200 | |
| 1200×1000 | 150 | D16 / D28 | 1500 - 2500 | |
| 1500×1000 | 150/200 | D16 / D28 | 1800 - 3000 | |
| 2000×1000 | 150/200 | D16 / D28 | 2500 - 4000 | |
| 2000×1200 | 150/200 | D16 / D28 | 3000 - 4500 | |
| 2000×1500 | 200 | D28 | 3500 - 5000 | |
| 2500×1500 | 200 | D28 | 4000 - 6000 | |
| 3000×1500 | 200 | D28 | 4500 - 7000 | |
| 3000×2000 | 200 | D28 | 5000 - 8000 | |
| 4000×2000 | 200 | D28 |
|
We supply 2D Welding Worktable in various sizes. Not sure which dimension to choose? Feel free to contact us for the optimal solution.
Scope of Customization Services
Dimensions:Custom lengths, widths, and special tabletop thicknesses.
Functionality:Addition of full-perimeter guardrails, slag collection trays, external grounding bars, and specialized positioning slots.

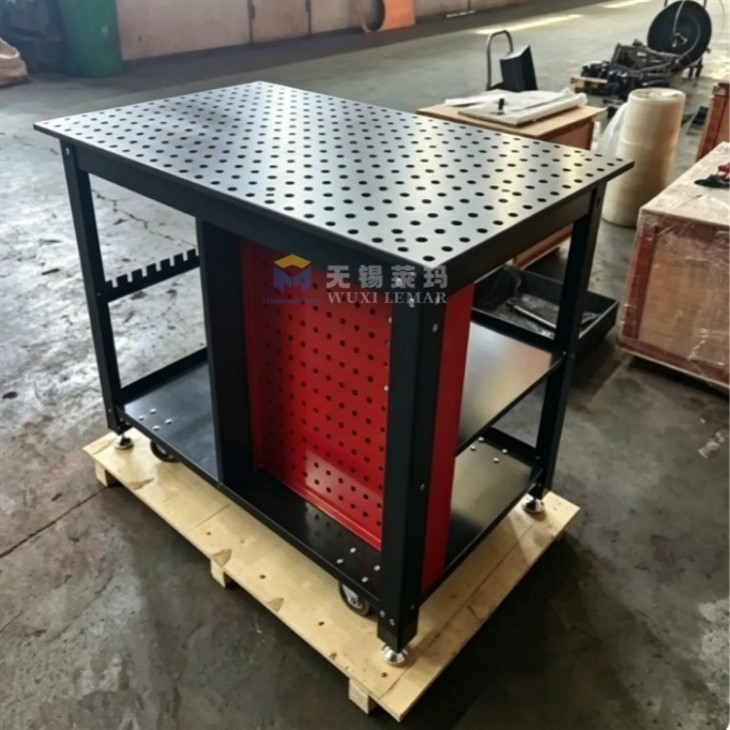

Structure:Adjustable leg height (raised or lowered), mobile caster configuration (with brakes), and fixed steel base plates.
Surface Treatment: Localized nitriding for enhanced durability on 2D welding worktables, specialized anti-rust treatments, and custom laser-engraved client logos.

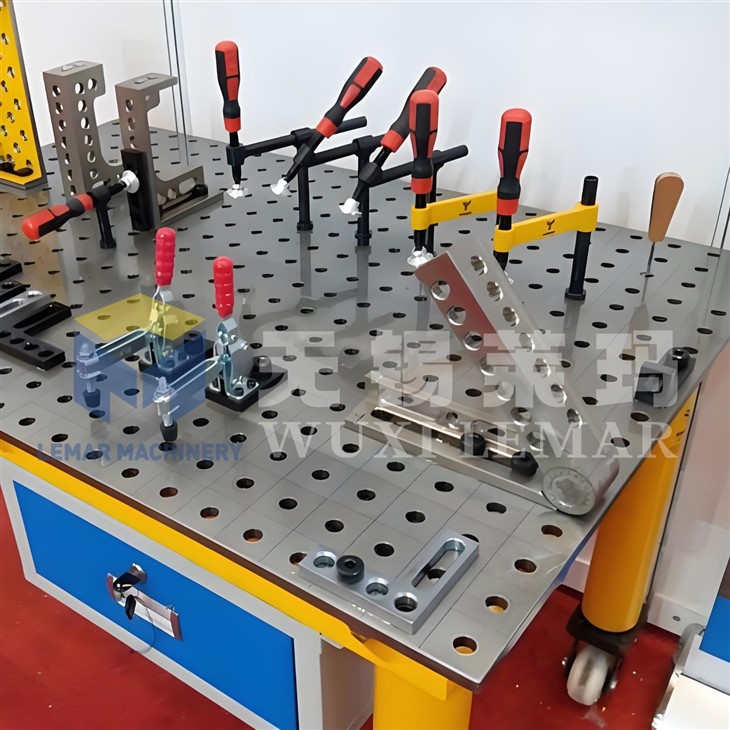

Accessories: Customized fixture kits and tool sets tailored to the client's specific working conditions.
Service Life and Wear Patterns
Normal Operating Conditions (Standard 8-hour daily usage)
- Nitrided Surface Model: Effective precision lifetime of 10–15 years; surface wear-resistant layer lifetime exceeds 12 years.
- Blackened / Standard Coated Model: Precision lifetime of 3–5 years; prone to rusting and rapid wear.
Typical Wear Patterns
- Primary Wear Areas: Hole openings and high-frequency clamping zones. Secondary Wear Areas: Tabletop welding seams. The overall flat surface generally exhibits minimal deformation.
Wear Repair
- Wear Repair: For worn holes on the 2D welding worktable, wear-resistant positioning bushings can be installed; for localized depressions, spot welding and grinding can be performed (suitable for non-precision applications).
