3D Steel Welding Tables
Application:Welding&Assemble
Process:CNC Machining
Surface:Nitrided
More details:Eva(WA:+8615995269947 Evasummer@lemarmetal.com)
Type:3D 5-sides
Certification:CE Passed
3D Steel Welding Tables
– Industrial-grade precision, unlimited expansion –
Product Overview
A 3D steel welding table is a precision-engineered work surface featuring a grid of accurately machined holes across five working faces (top + four sides). This grid system allows you to position clamps, stops, and fixtures anywhere along the X, Y, and Z axes - giving you unlimited setup flexibility for virtually any workpiece geometry.
Built from high-grade Q355B structural steel with precision-machined surfaces, these tables deliver flatness tolerances of ±0.1 mm per meter - accuracy that traditional welded tables simply cannot match.
Our address:505-1 NO.8 JIEFANG WEST ROAD,LIANGXI DISTRICT,WUXI,CHINA
Phone Number:+86 159 952 699 47(Eva Summer)
Evasummer@lemarmetal.com

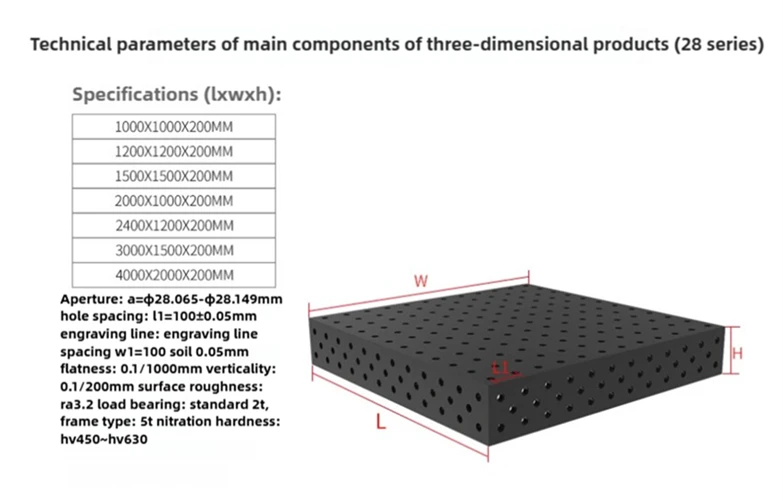

Products Parameters

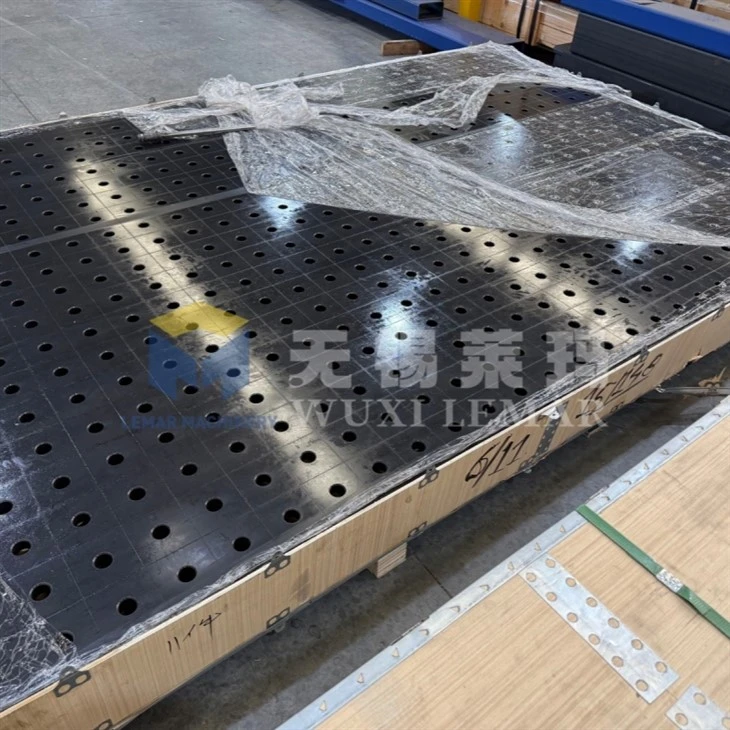

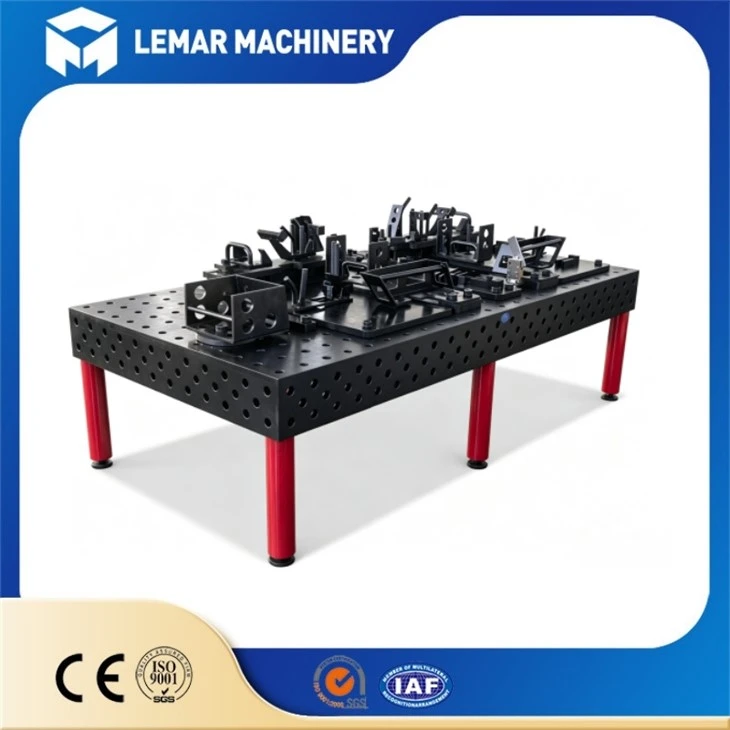

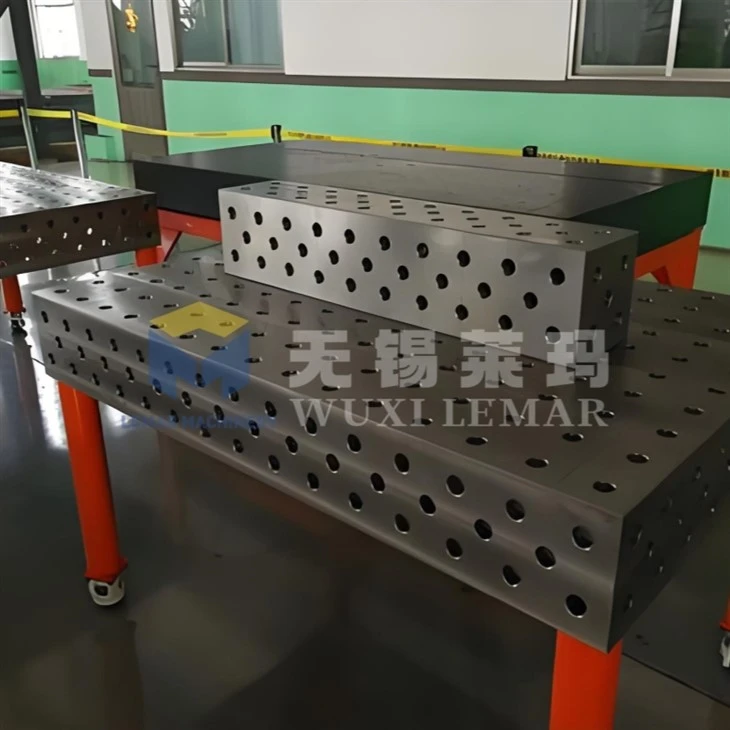

Products Display
Products Features
Key Features That Set Our Tables Apart
🏗️ Industrial-Grade Steel Construction
Material: Premium Q355B structural steel plate (equivalent to S355JR)
Table Thickness: 20mm solid steel top for maximum rigidity
Load Capacity: Up to 2,700 kg static load - handles heavy structural components with ease
Surface Hardness: Nitrided surface option available for enhanced wear resistance and anti-spatter properties

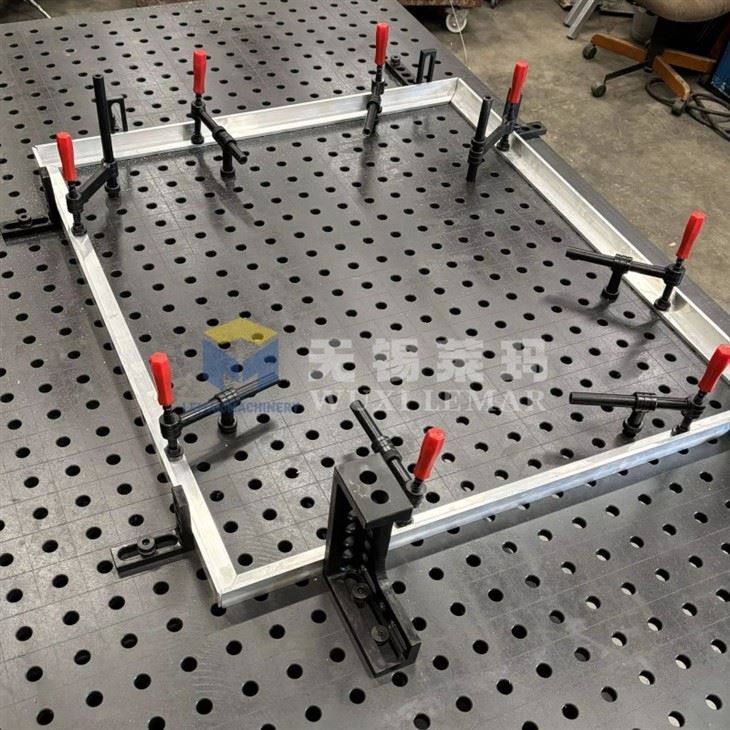

🎯 Precision Machined Grid System
Hole Diameter: D16 (16mm) or D28 (28mm) options to match your clamping system
Grid Spacing: Standard 100mm x 100mm grid with 50mm grid available for fine positioning
Flatness Tolerance: ±0.1mm/m - guaranteed across the entire table surface
Five-Sided Working Surface: Top + four side plates with matching grid pattern for vertical fixturing
🔧 Modular & Expandable Design
Connect Multiple Tables: Join tables end-to-end or side-by-side for larger workpieces
Quick-Connect System: Precision alignment pins ensure perfect table-to-table alignment
Accessory Compatibility: Works with all standard D16/D28 clamping kits, stops, angles, and V-blocks
Retrofit-Friendly: Add extensions or accessories as your needs grow
⚙️ Built for the Real World
Adjustable Legs: Precision leveling feet for perfect alignment on any shop floor
Heavy-Duty Legs: Each leg supports up to 2,000 kg - four legs = 8,000 kg total capacity
Mobility Option: Casters available for shops that need to reposition workstations
Low Maintenance: Steel construction resists weld spatter; grid holes are self-cleaning

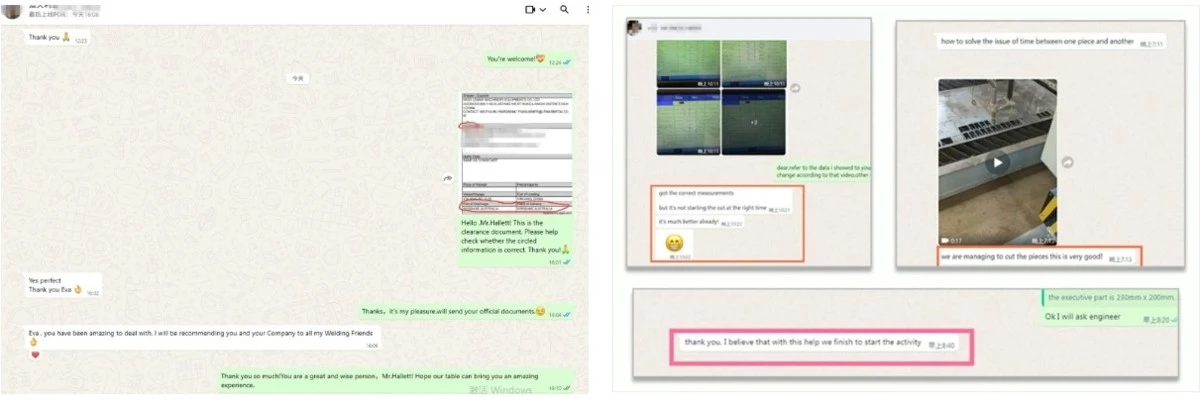

Customer Reviews
FAQ
Frequently Asked Questions
Q1: How does this compare to cast iron welding tables?
+
-
A: Steel tables offer better impact resistance and are less prone to chipping or cracking. They're also lighter while maintaining excellent rigidity. For most fabrication shops, steel provides the best balance of performance and value.
Q2: Can I use my existing clamping tools?
+
-
A: Our tables are compatible with all standard D16/D28 system accessories from major brands. If you already have a clamping kit, it will work with our tables.
Q3: Do you offer installation services?
+
-
A: Assembly is straightforward and can be done by your team with basic tools. We provide detailed instructions and video guides. For larger installations, on-site support is available.
Q4: What about warranty?
+
-
A: We offer a 2-year warranty on manufacturing defects. Our tables are built to last decades with proper care - many of our customers are still using tables purchased 10+ years ago.
🌐 Official website: www.lemarmachine.com/modular-welding-table
📧 Email: evasummer@lemarmetal.com
📞 Phone: +86 159 9526 9947
Online customer service: Click the icon at the bottom right corner of the website to leave a message to Eva Summer.
