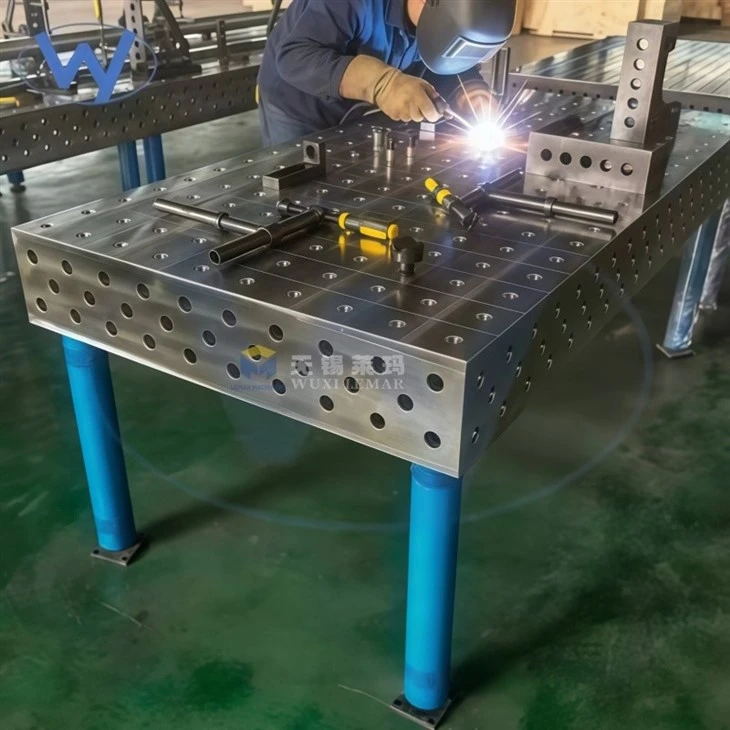

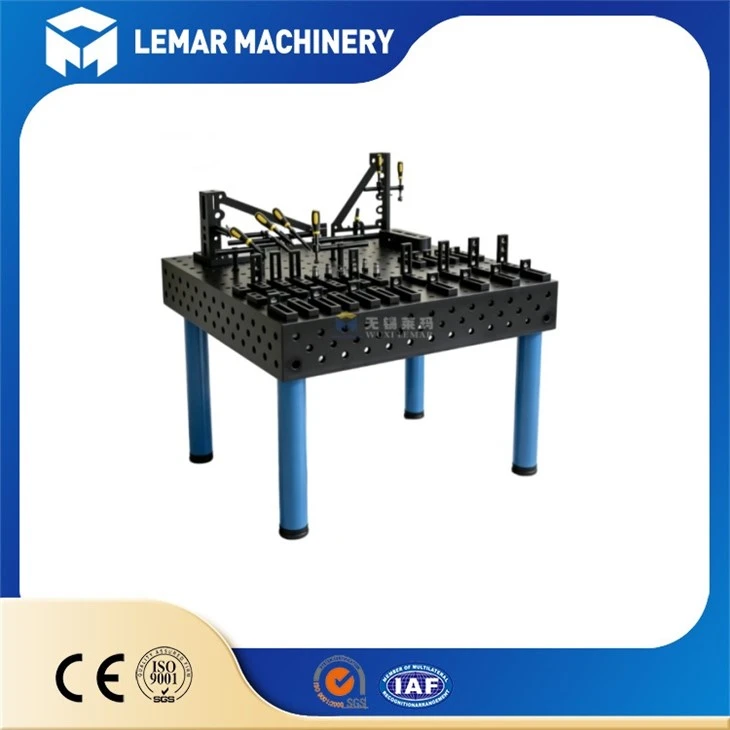

Precision Metal Fabrication Table
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
Product Overview
why choose us
why choose our products
Our Precision Metal Fabrication Table is a professional modular 3D work platform engineered for high-tolerance metal fabrication, welding fixturing, component assembly, and dimensional inspection. Unlike ordinary workshop benches that deform easily after welding, our fabrication tables adopt strict stress-relief treatment, precision CNC machining, and industrial-grade surface hardening, delivering long-term flatness, repeatable positioning accuracy, and extreme stability for high-mix, low-volume to mass production workshops.
Designed with a universal 5-sided grid hole system, the table supports 3D multi-angle clamping and fixturing. All accessories are fully interchangeable, eliminating the need for custom one-off jigs. It drastically cuts setup time, reduces welding deformation and rework, and standardizes your entire metal fabrication workflow.
Material Options

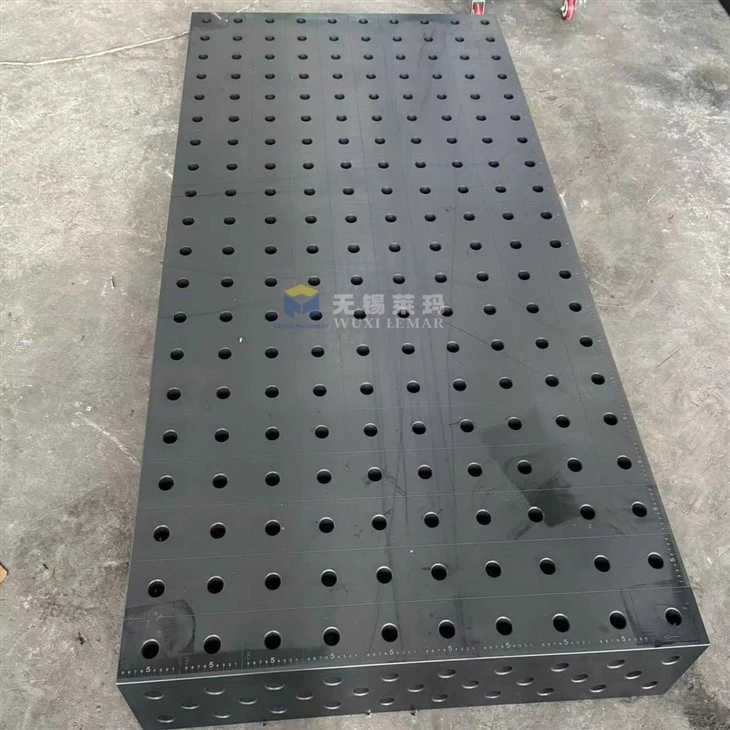

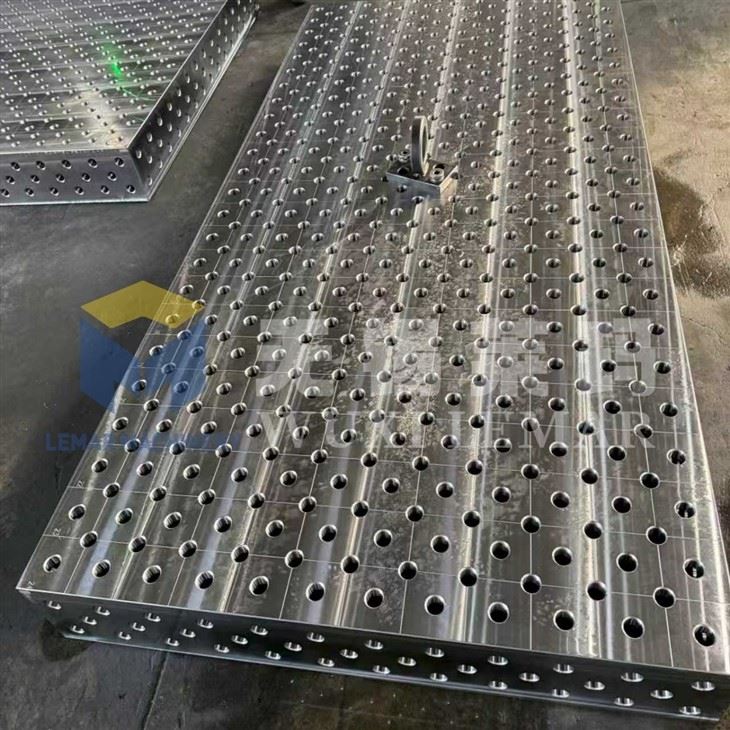

Nitrided Steel Version (Best Seller for Export)
Made of high-strength Q355 steel plate with thickened reinforced frame. After precision CNC milling and deep plasma nitriding treatment, the surface features high hardness, anti-rust, anti-spatter and anti-wear performance. Lightweight, cost-effective and easy for shipping, perfect for general metal fabrication workshops.
- Surface Hardness: HRC 35+
- Table Thickness: 12/25mm optional
- Flatness Grade: 0.10–0.15mm/1000mm
- Application: Standard welding, sheet metal frames, general structural parts

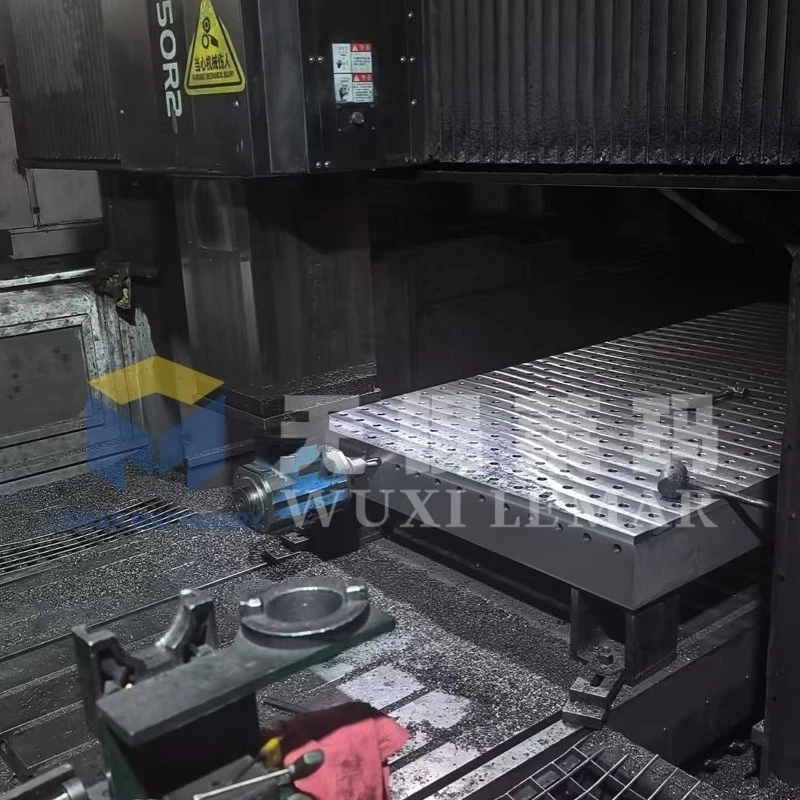

Cast Iron HT300 Version
Integral box-type cast iron structure with high-temperature annealing and secondary vibration aging. Excellent vibration damping performance, minimal thermal deformation, ultra-stable precision. The best choice for aerospace, robot welding stations, high-precision inspection and mold calibration.
- Material Hardness: HB 180+
- Flatness Grade: 0.03–0.05mm/1000mm (0 precision level)
- Service Life: 15–25 years long-term precision retention
- Application: High-precision welding, automation stations, inspection & calibration

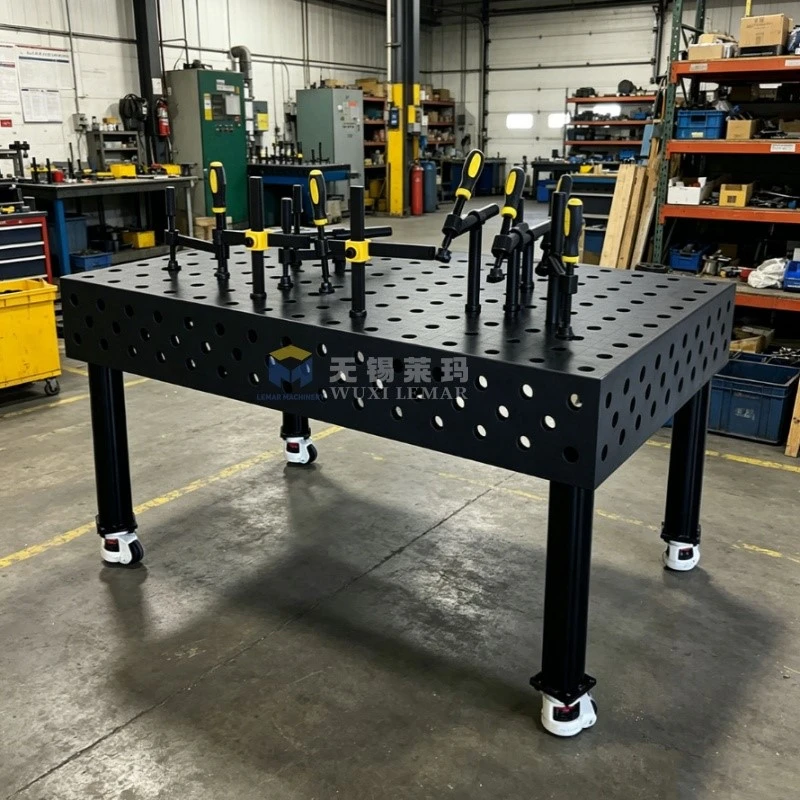

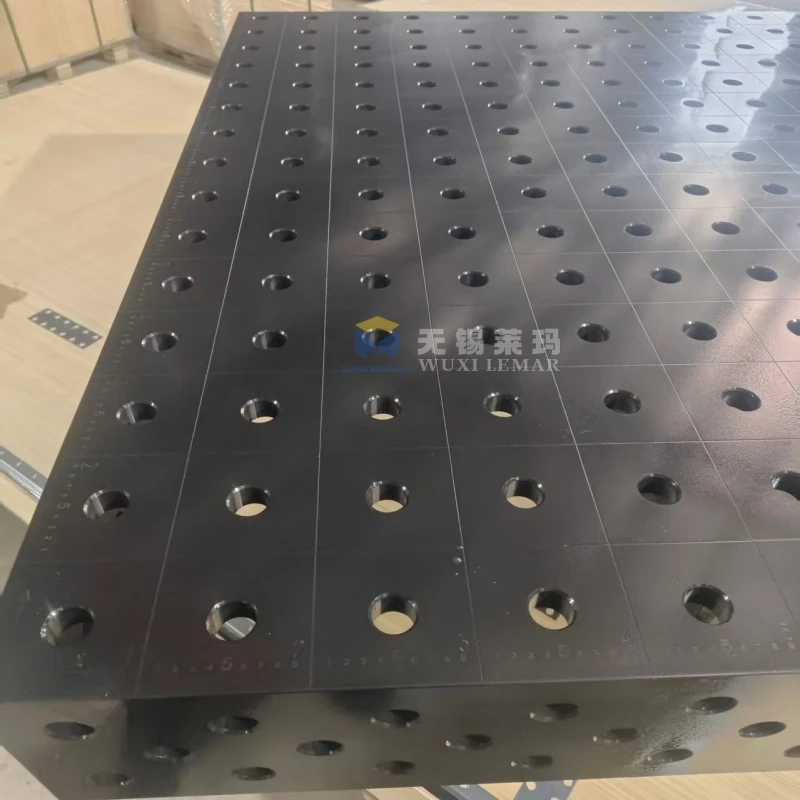

D16 / D28 Series Full Parameters
|
Specification Item |
D16 Series (Precision Light Duty) |
D28 Series (Heavy Industrial Duty) |
|---|---|---|
|
Standard Hole Diameter |
φ16mm (Precision tolerance: φ16.065–φ16.149mm) |
φ28mm (Industrial heavy-duty tolerance) |
|
Grid Pitch |
50×50mm (±0.02mm high precision) |
100×100mm (±0.02mm industrial precision) |
|
Table Plate Thickness |
12mm / 16mm / 20mm (Steel version) |
20mm / 25mm / 30mm (Thickened heavy-duty plate) |
|
Max Load Capacity |
3–5 tons/㎡ |
6–10 tons/㎡ |
|
Flatness Standard |
0.05–0.10mm/1000mm |
0.10–0.15mm/1000mm |
|
Verticality Tolerance |
≤0.03mm/200mm |
≤0.05mm/200mm |
|
Surface Roughness |
Ra 1.6 (high-precision finish) |
Ra 1.6 (industrial precision finish) |
|
Surface Hardness (Nitrided) |
HV450+ |
HRC 38+ (higher wear resistance) |
|
Fixture Compatibility |
Universal D16 standard pins, clamps & supports |
Universal D28 heavy-duty full accessories |
|
Core Application |
Small & medium precision parts, sheet metal, aluminum welding, cabinet fabrication, high-tolerance batch production |
Large steel structures, vehicle frames, chassis parts, heavy equipment assembly, robot welding stations |
|
Feature Advantage |
Dense grid, ultra-high positioning accuracy, flexible for complex small workpieces, cost-effective |
Super high rigidity, strong impact resistance, heavy load bearing, stable for long-time heavy welding |
Products Description
Certification & Factory Inspection
packaging & Shipping
Why Upgrade to Our Precision Fabrication Table?
1. Save Huge Jig Cost
Traditional production requires custom dedicated jigs for each product, causing high mold costs and long lead times. Our modular table supports one platform for hundreds of products. All fixtures are reusable, greatly reducing your fixture investment and warehouse occupation.
2. Dramatically Improve Production Efficiency
Fast positioning and clamping replace manual marking and repeated calibration. Setup time reduced by over 70%, overall productivity increased by 30%–40%. Perfect for frequent product switching and small-batch customized orders.
3. Zero Deformation & Low Rework Rate
Integrated high-rigidity structure and stress relief technology effectively absorb welding thermal stress. Stabilize product size, reduce welding deformation, and cut rework and scrap loss by over 80%.
4. Perfect Repeatability for Batch Production
Unified high-precision benchmark ensures every batch of parts maintains consistent tolerance. Suitable for standardized batch production and robot automatic welding stations.
Wide Application Industries
Mold & Inspection: Precision calibration, flatness detection, tooling verification
Automation & Robot Welding: Fixed benchmark platform for robotic welding stations
Construction & Hardware: Stair railings, frames, steel structure parts
Sheet Metal & Cabinet Fabrication: Equipment housings, electrical cabinets, stainless steel profiles
Aerospace & Precision Machinery: High-precision alloy structural assembly & welding
Contact Info
Tell us your required precision metal fabrication table size, hole system (D16/D28), material type and working scenario. We will provide you with the most cost-effective solution and full quotation within 24 hours!
Wechat / Whatsapp：+86 180 0619 3916
