Flexible Welding Table
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
One-Stop 3D Welding Table Factory In China
Send your inquiry about 3D welding tables to us and witness remarkable upgrades to your fabrication business. Our high-precision welding workbench solutions help you boost machining accuracy, streamline production efficiency, and seize more development opportunities in metal manufacturing industry.
Products Description
Flexible Welding Table is a core piece of equipment for modern welding "flexible manufacturing". With standardized hole systems, modular parts and high-precision positioning, it solves the pain points of traditional tooling such as "high cost, long cycle and poor adaptability". It is widely used in multi-variety, small-batch and high-precision welding scenarios, significantly improving efficiency and quality and reducing overall costs.
- Flexible and Versatile Adaptability: One welding table covers dozens of products, eliminating the need for new fixtures during production changes and reducing dedicated tooling costs by 90%.
- Rapid Changeover: Traditional tooling design and manufacturing takes 1-3 months; the flexible platform completes new workpiece tooling setup within 30 minutes.
- High-Precision Welding: A mesh hole system and rigid platform suppress welding deformation, ensuring dimensional consistency and meeting automotive/aerospace-grade precision requirements.
- Cost Reduction and Efficiency Improvement: Reduced tooling inventory, shorter lead times, and lower rework rates make it highly cost-effective for small-batch, multi-variety production.
- Durable and Stable: Cast iron/steel structure with aging treatment resists high-temperature vibration and has a lifespan of 10+ years.
Structure and core parameters
- Material: HT300 gray cast iron (wear-resistant and vibration-damping), Q345/S355JR steel (strong and tough), stress-relieved by high-temperature aging + natural aging, resistant to welding heat deformation.
- Flatness: ≤0.1mm/1000mm, high-precision models can reach 0.02mm/m.
- Hole Standards:

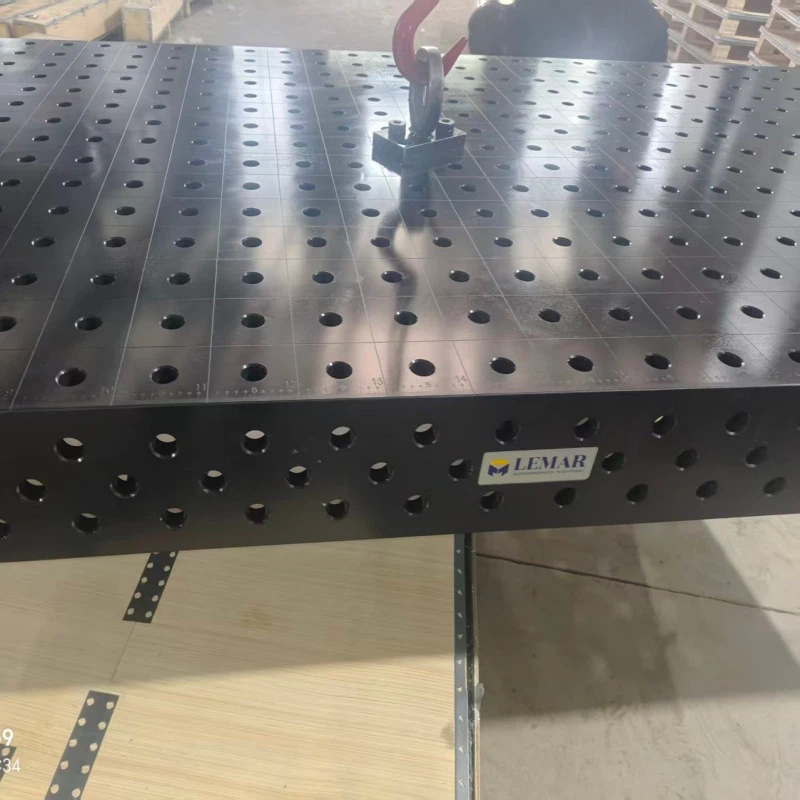

D28 Series: Hole diameter φ28mm, hole spacing 100×100mm, commonly used for heavy-duty and large workpieces.

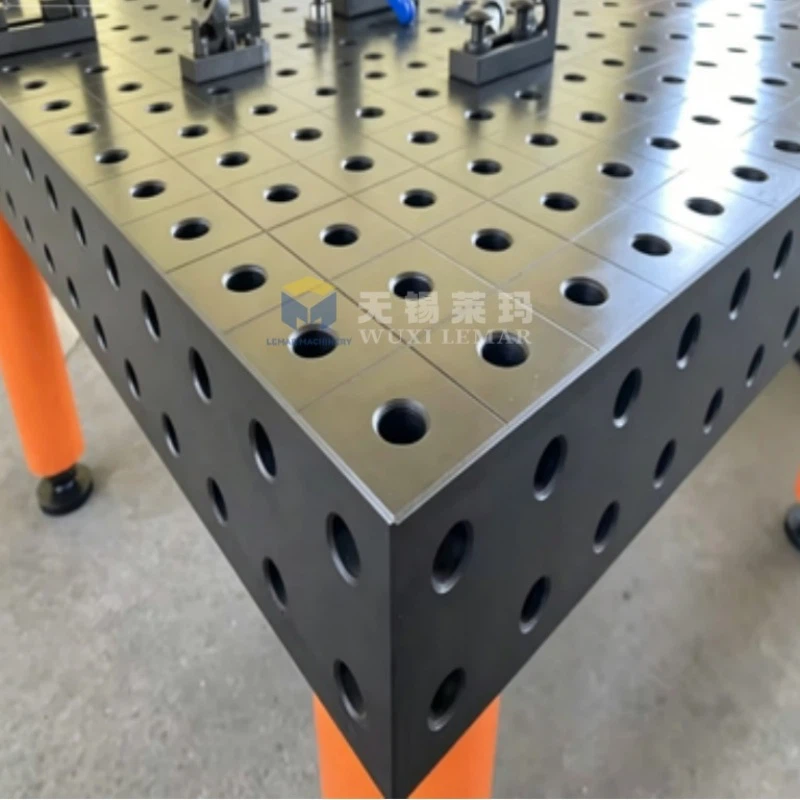

D16 Series: Hole diameter φ16mm, hole spacing 50×50mm, commonly used for precision and small parts.
- Positioning Accuracy: Hole position accuracy ±0.05mm, repeatability ±0.03mm.
- Surface Treatment: Gas nitriding (hardness HRC35-45), anti-splash, corrosion-resistant, wear-resistant, and lifespan increased by 3+ times.

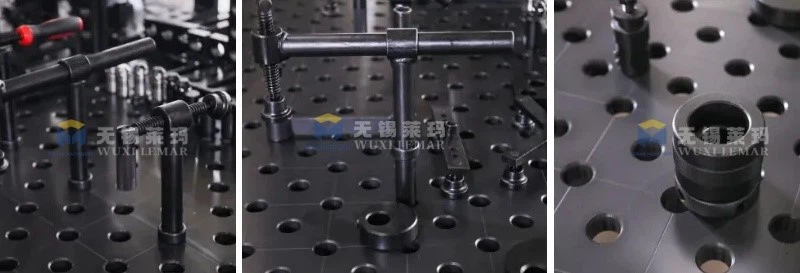

Standard components (modular combination)
Positioning locking pin (PC pin): Core connector, locked with 3 steel balls, quick insertion/removal, and stable positioning.
Right-angle block/positioning block: Base positioning, 90°/any angle support.
Column/extension: Z-axis height adjustment, multi-layer space construction.
Quick clamp: Manual/pneumatic, one-button clamping, adaptable to different workpiece shapes.
V-block/angle adjustment seat: Precise positioning of round tubes and irregularly shaped parts.
Certificate of Product Quality

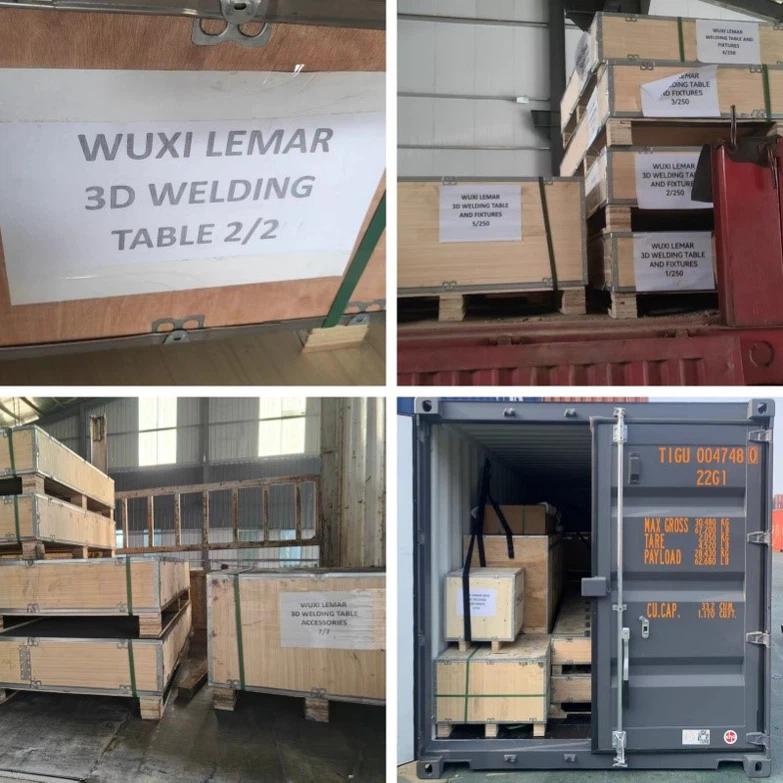

Actual shipping photos
FAQ
Other information about Flexible Welding Table
Can you customize table size?
-
Yes, standard sizes in stock, customized dimension acceptable.
Available trade terms?
-
EXW, FOB, CFR, CIF, DDP all supported.
Payment terms you accept?
-
T/T, L/C at sight, flexible negotiation for bulk orders.
How long is service lifespan?
-
5-8 years for regular model; over 10 years for nitrided heavy duty table.
Can you send product catalog and quotation?
-
Sure, contact us to get detailed price list and technical datasheet.
Contact Us
Company profile
Founded in 2005, LEMAR MACHINERY is a professional manufacturer and supplier of welding equipment in China. We started with core welding machines like roller frames, positioners and manipulators, and expanded to CNC drilling machines, 3D welding tables and flexible tooling solutions in 2008. Since 2007, we have focused on global business, upgrading products to meet international standards. With CE and GS certifications obtained in 2015, we have successfully entered European and American markets, and now export to over 30 countries and regions. Our products are widely used in automotive, shipbuilding, aerospace, oil & gas, wind power, pressure vessels and robotic welding industries. We are committed to providing reliable welding equipment and comprehensive solutions to global customers.
