4’*4’ Welding Fixture Table
Application:Welding&Assemble
Process:CNC Machining
Surface:Nitrided/Normal
Contact us for Quote:Eva(WA:+8615995269947 Evasummer@lemarmetal.com) Type:3D
Brand:Lemar
Products Description

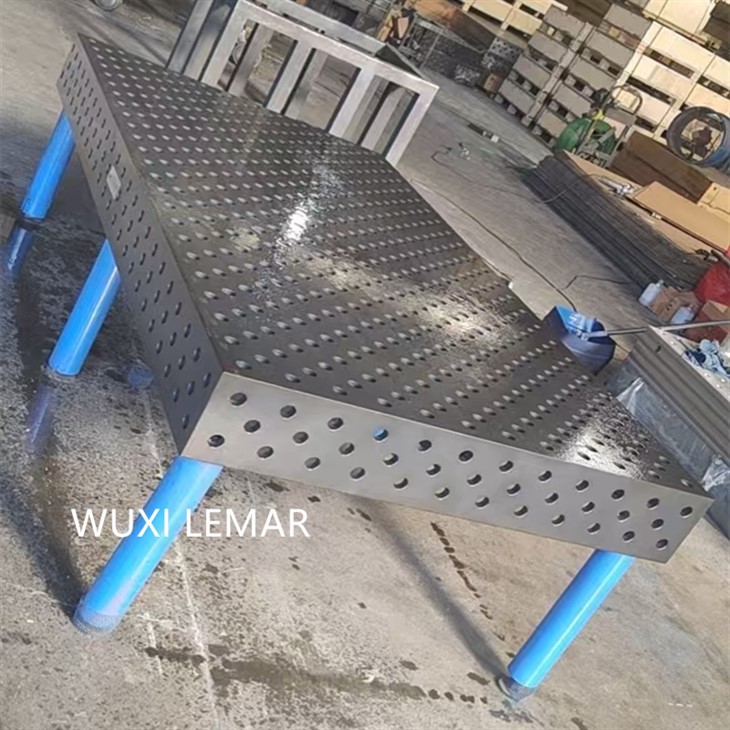

4'*4' Welding Fixture Table is a modular, high-precision, multi-purpose work platform of vital importance in metalworking and manufacturing.
Simply put, it is an exceptionally robust and precise platform featuring standard grid holes, enabling welding, assembly, measurement, and fixture construction tasks with unparalleled flexibility, accuracy, and efficiency.
Our address:505-1 NO.8 JIEFANG WEST ROAD,LIANGXI DISTRICT,WUXI,CHINA
Phone Number:+86 159 952 699 47
Evasummer@lemarmetal.com
Products Specification
| Feature Category | Specifications and Description |
|---|---|
| Dimensions | The standard "4'×4'" refers to a tabletop size of 4 feet × 4 feet (approximately 1220 mm × 1220 mm). This is one of the most common industrial sizes; other specifications such as 2'×4' and 4'×8' are also available. |
| Tabletop Structure | Main Body: Made from high-strength carbon steel or tool steel, undergoes precision machining and stress-relieving treatment to ensure long-term stability and resistance to deformation. Grid Hole System: This is the core feature. The entire tabletop is populated with precision-machined round holes at standard intervals (typically imperial 2 inches / 50.8 mm or metric 50 mm / 100 mm). Threaded Holes: Each round hole has an internal thread at its base or side (commonly imperial 5/8"-11 UNC or metric M16), allowing direct attachment of various fixture elements. |
Products Size
Products Function
Primary Functions
--4'*4' Welding Fixture Table
This workbench far surpasses conventional welding tables, functioning more as a "cornerstone of manufacturing systems":
Precision Positioning and Clamping: Utilising accompanying components such as stops, angle irons, clamps, pressure arms, locating pins, and V-blocks, workpieces can be swiftly and accurately secured at any position and angle on the worktable surface.
Repeatable Production: Once a fixture layout is established for a workpiece, all component positions can be recorded via worktable coordinates (row and column numbers of holes). This enables rapid reconstruction of identical fixtures for subsequent production runs, ensuring batch consistency.
Multi-functional assembly: Suitable not only for welding but also for mechanical assembly, gauging fixture construction, measurement, drilling, tapping, and mould debugging.
Modular expansion: Multiple workbenches can be joined side-by-side to form a larger continuous work area. The grid system aligns perfectly, enabling the machining of oversized workpieces.
Products application
Main application scenarios
A platform of this size is a "versatile workstation" in the workshop, especially suitable for:
• Welding of small and medium-sized parts: brackets, brackets, small frames, housings, door frames, etc.
• Prototype production and research and development: very suitable for small-batch trial production and new product development, and can quickly verify tooling schemes.
• Repair and maintenance workshops: used for repairing, transforming or manufacturing replacement parts, with flexible clamping methods.
• Education and training: It is an ideal equipment for teaching precision welding and tooling principles in technical schools or enterprise training centers.
• As a supplement to large-scale production lines: next to the main production line, used for prefabricating small components or sub-components.
Typical Workflow
1. Planning: Determine the positioning datum plane and clamping points based on the workpiece drawings.
2. Setup: Clean the table surface, select and install appropriate support blocks to pad the workpiece to a suitable height.
3. Positioning: Use locating pins, stoppers, or right-angle clamps to determine the precise position of the workpiece on the X-Y plane.
4. Clamping: Use quick clamps, bolts, or toggle clamps to firmly fix the workpiece from the vertical or lateral direction.
5. Welding and Inspection: Perform welding. Due to precise positioning, after spot-welding several key points, the main fixtures can usually be loosened, and the platform can be used for the next workpiece to achieve assembly line operation.
6. Reset: After completion, remove all fixtures, restore the table surface to a clean state, and prepare for the next setup.
Our Service Processes
Pre-sales Consultancy
1
>>
Confirmation of order
2
>>
Production
3
>>
Multi-Channel Shipping
4
>>
Confirmation of receive
5
>>
After-sale Services
6
FAQ
FAQ
01.What's the lead time for orders?
02.What kind of packaging should we use?
We use fumigation-free wooden crates that meet export standards for packaging.
03.Do we have a minimum order quantity?
04.What documents do you provide for export?
05. How do I place an order?
06.Would it be possible for us to visit your factory ?
Products certification
Customer Review
After Sales Service
We are always at your service when you need
★Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
★Extended Warranty: Optional coverage up to 36 months.
★Global Support: 24/7 technical assistance and spare parts supply.
★Training: On-site or remote operation/maintenance training.
active members
years experience
events & challenges
expert instructors
Summary
who choose Lemar Welding Tables And Benches?

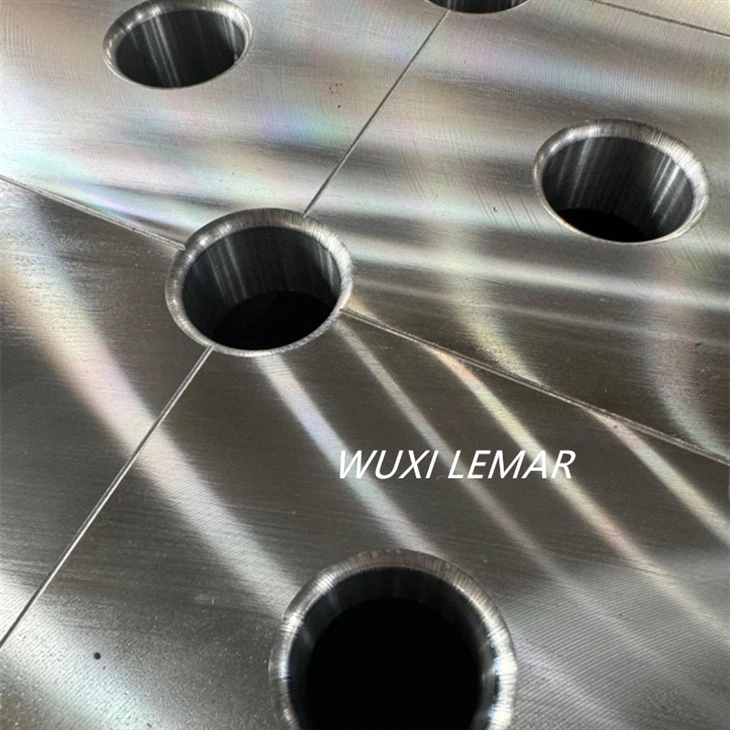

Our 3D welding platform boasts higher precision, lower tolerances, flatness: <0.01mm/mm, smooth inner holes without burrs, and special nitriding treatment that makes welding slag easier to clean. Furthermore, our nitriding process enhances our tabletop hardness to HV:600 at least.
