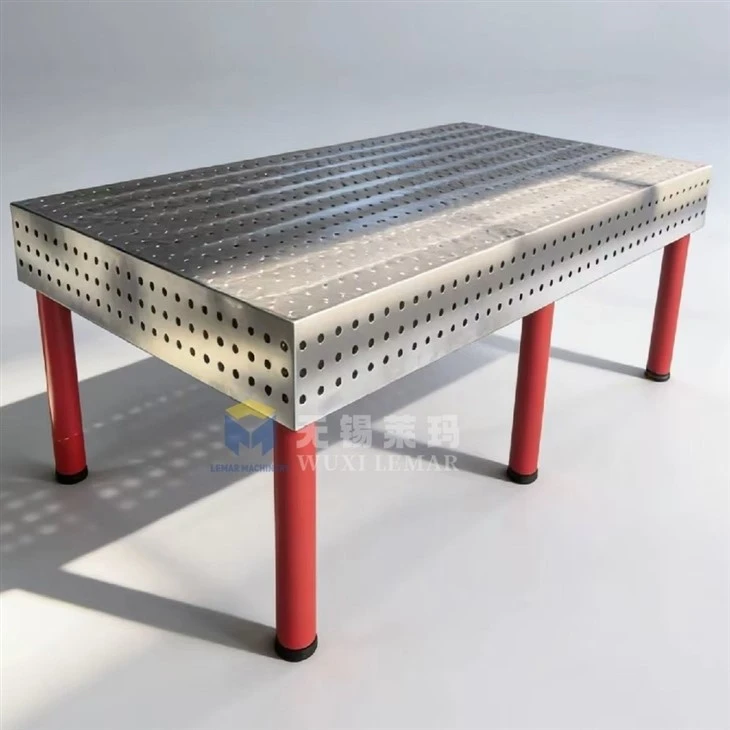

Fixture Welding Table With Clamps
Material:Q355 Steel
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Nitrided
Type:3D D28
Size:1000*2000mm
Brand:Lemar
Contact Us:Eva(+8615995269947/Email:evasummer@lemarmetal.com)
WUXI LEMAR
Product Overview
Our Fixture Welding Table with Clamps is a complete modular 3D fixturing solution for metal fabrication workshops. Built with precision‑machined grid hole system, this welding worktable comes with full‑range clamping and positioning accessories, enabling fast setup, accurate workpiece locating and firm holding during welding processes.
Eliminate time‑consuming custom fixture fabrication and manual scribing work. Whether for manual welding stations or robot welding cells, this heavy‑duty fixture welding table delivers stable flatness, high repeat positioning accuracy, and great flexibility for various frames, chassis, sheet metal and tubular parts. Cut your fixture cost, shorten change‑over time and keep consistent welding quality batch after batch.
Product differentiation
| Item | Fixture Welding Table with Clamps | Ordinary Simple Welding Table |
|---|---|---|
| Positioning Reference | Precision grid hole system with complete fixture system | Plain surface without positioning holes |
| Accuracy | Strict tolerances for flatness and hole‑position | No precision requirements |
| Function | Positioning + clamping to guarantee welding dimensions | Only holds workpieces; fixed by manual marking and C‑clamps |
| Changeover | Rapid fixture reconfiguration for multiple workpieces | One‑off clamping setup for specific workpiece only |
Load bearing parameters
1. D16 system welding station
- Uniformly distributed load: 2-4 t/㎡
- -Single point concentrated load: ≤ 800 kg
Suitable for small sheet metal, thin materials, and sample production.
2. D28 system welding station
- -Uniformly distributed load: 5-10 t/㎡
- -Single point concentrated load: ≤ 2000 kg
Frame, construction machinery, thick plate, robot welding unit.
>Usage taboos: *Prohibit single point heavy pressure and hammering on the tabletop , as it may cause local dents and permanent damage to the flatness.
Shipping & Packaging
Products Description
"I may sell it and buy another. I'm checking what extra tooling I need."
This customer sent us onsite photos of our Professional‑Grade 3D Welding Table working inside his metal shop. Impressed with the table's rigidity and fixturing performance, he is planning to get a second unit for his production. Real‑world workshop usage proves our table's solid construction and reliable precision.
Procurement avoidance pit
1. Insufficient stress relief: The new welding table looks flat and gradually bends after six months to a year of use.
2. Ordinary drilling instead of CNC precision drilling: large hole spacing error, fixture insertion and removal lag, and large clearance.
3. Thin countertop, material degradation (HT200 impersonates HT300), bending under heavy load.
4. Paint replaces nitriding: peeling at high temperatures and damage to the reference surface.
Our Fixture Welding Table with Clamps perfectly avoids the above defects, providing customers with reliable quotes for their welding processes.
Contact us
Stop wasting time on inefficient fixturing solutions. Our heavy‑duty Fixture Welding Table with Clamps helps cut fixture costs and reduce welding rework.
Please leave your inquiry with your project specifications, and we will reply promptly with detailed product suggestions and pricing.
📞 Contact our sales team now
📧 Email: amywang@lemarmetal.com
📞 Phone: +86 180 0619 3916
*All Lemar products come with a 12-month warranty against manufacturing defects. Bulk and OEM orders are welcome.*
