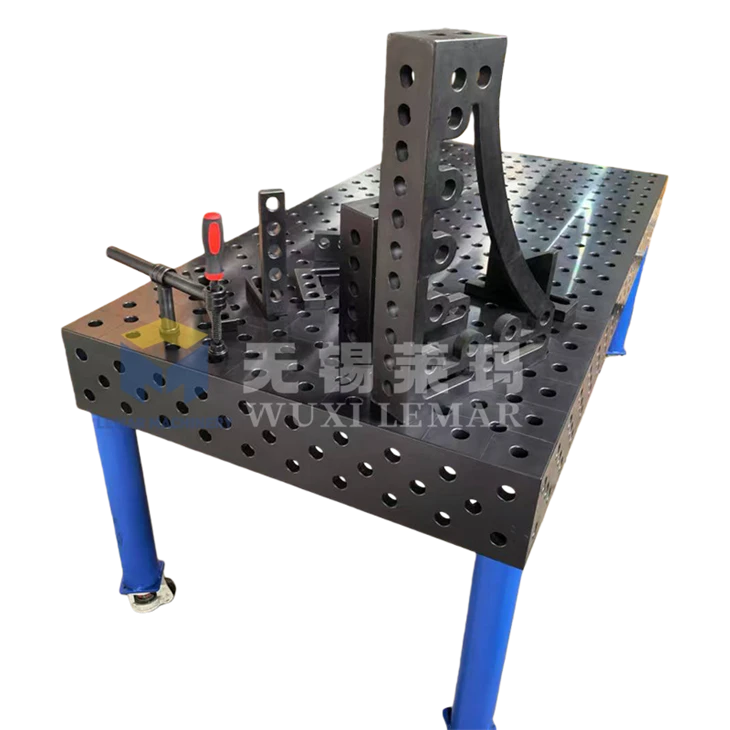

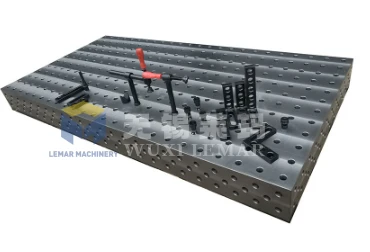

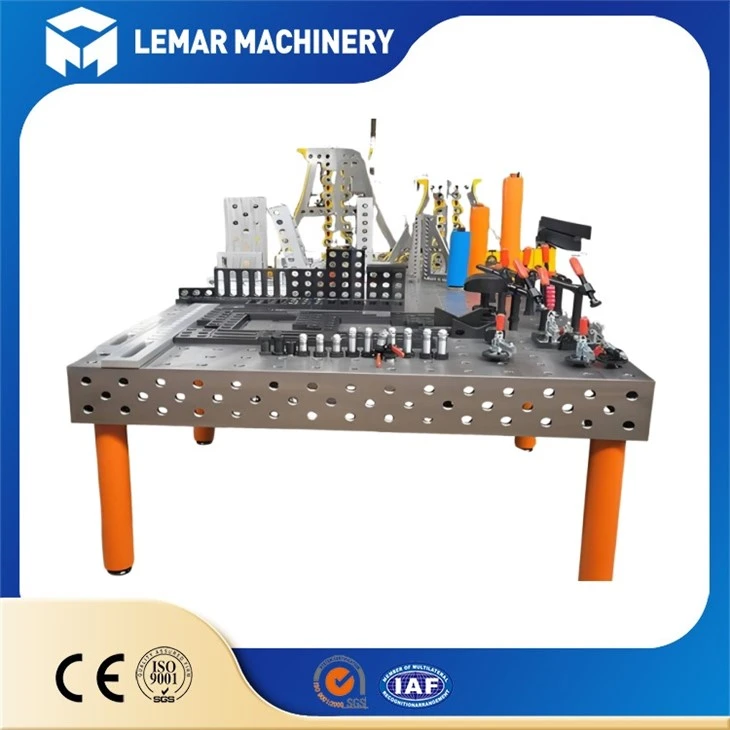

3D Welding Table with Fixtures
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
product introduction
|
|
The 3D Welding Table with Fixtures is a core piece of equipment for modern manufacturing to achieve flexibility, lean production, and intelligence. It completely overturns the traditional dedicated fixture model with a standardized hole system and modular fixtures, ensuring high precision while enabling rapid model changeovers, cost reduction, and efficiency improvement, as well as unlimited reusability. It is particularly suitable for multi-variety, small-batch, and high-precision welding and assembly scenarios.
Large enterprise scale
wide application of technology
high-quality customized services
High quality
advanced equipment
professional team
one-stop solution
Product Series
D16 series
1. Workbench surface grid specifications: 100x100±0.05mm (D28 series); 1mm scale lines on each of the two adjacent sides of the workbench in the X and Y directions.
2. Hole diameter and accuracy: φ28.15±0.03mm (D28 series)
3. Hole spacing: 100±0.03mm (D28 series)
4. Flatness: 0.1mm/m²
5. Perpendicularity: 0.1mm/200mm
6. Parallelism: 0.1mm/1000mm
7. Parallelism and perpendicularity (adjacent sides): 0.1/1000mm
8. Platform surface finish: 1.6μm
9. Platform support: Leg type: 2T/m², Frame type: 3T/m²
D28 series
1. Workbench surface grid specifications: 50X50±0.05mm (D16 series); 1mm scale lines on each of the two adjacent sides of the workbench in the X and Y directions.
2. Hole diameter and accuracy: φ16.15±0.03mm (D16 series)
3. Hole spacing: 50±0.03mm (D16 series)
4. Flatness: 0.1mm/m²
5. Perpendicularity: 0.1mm/200mm
6. Parallelism: 0.1mm/1000mm
7. Parallelism and perpendicularity (adjacent sides): 0.1/1000mm
8. Platform surface finish: 1.6μm
9. Platform support: Leg type: 2T/m², Frame type: 3T/m²
| Dimensions (length × width) | Countertop material | Hardness | Working surfaces |
| 1000 × 1200mm | HT300/Q355 | HRC 50–55 | 5 precision faces(top + 4 sides) |
| 1000 × 1500mm | HT300/Q355 | HRC 50–55 | 5 precision faces(top + 4 sides) |
| 1000 × 2000mm | HT300/Q355 | HRC 50–55 | 5 precision faces(top + 4 sides) |
| 1200 × 2000mm | HT300/Q355 | HRC 50–55 | 5 precision faces(top + 4 sides) |
| 1200 × 2400mm | HT300/Q355 | HRC 50–55 | 5 precision faces(top + 4 sides) |
| 1200 × 3000mm | HT300/Q355 | HRC 50–55 | 5 precision faces(top + 4 sides) |
| 2000 × 2400mm | HT300/Q355 | HRC 50–55 | 5 precision faces(top + 4 sides) |
| 1500 × 2000mm | HT300/Q355 | HRC 50–55 | 5 precision faces(top + 4 sides) |
| 1500 × 2400mm | HT300/Q355 | HRC 50–55 | 5 precision faces(top + 4 sides) |
| 1500 × 3000mm | HT300/Q355 | HRC 50–55 | 5 precision faces(top + 4 sides) |
| 2000 × 2400mm | HT300/Q355 | HRC 50–55 | 5 precision faces(top + 4 sides) |
| 2400 × 3000mm | HT300/Q355 | HRC 50–55 | 5 precision faces(top + 4 sides) |
| 4000 × 2000mm | HT300/Q355 | HRC 50–55 | 5 precision faces(top + 4 sides) |
Product video
Core structure and composition

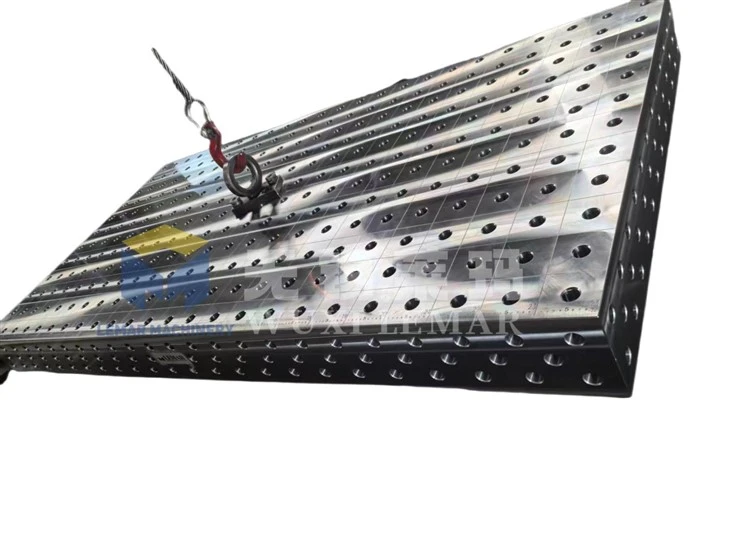

1. Workbench Main Body (Table)
- Material: Mostly HT200–HT300 high-strength cast iron (for shock absorption, wear resistance, and deformation resistance) or Q345 high-quality alloy steel (for heavy loads and good toughness).
- Surface Treatment: Plasma nitriding / quenching, resistant to high temperatures, anti-welding splatter, corrosion-resistant, high hardness (HRC55+).
- Packing Standard: Mainly D28 (φ28mm) or D16 (φ16mm) precision positioning holes, with hole spacing typically 100mm×100mm, precision reaching ±0.01mm, which is the basis for achieving universal clamping.
- Specification: Common sizes 1000×1000mm, 1200×2000mm, 1500×3000mm, thickness 200–300mm, load capacity up to 5–10 tons.
- Structure: Internal "grid-like" reinforcing ribs, ensuring high rigidity and stability, and not deforming over long-term use.
2. Universal Fixture System
- All modules are compatible with D28/D16 packing, and can be quickly inserted and combined:
- Positioning Module: Positioning pins (cylindrical / rhombic), positioning blocks, angle gauges, V-blocks (for round pipes / shafts).
- Clamping Module: Quick clamps (horizontal / vertical / push-pull type), screw compressors, floating pressure blocks, tensioners.
- Support Module: Equal-height support blocks, adjustable support columns, universal support feet.
- Auxiliary Module: Connecting plates, extension rods, rotating seats, angle regulators, magnetic seats.
Core working principle
- Unified Base: The workbench surface and all fixture modules are based on the D28/D16 hole system as a unified reference point, ensuring repeat positioning accuracy.
- Building Block Combination: According to the shape of the workpiece, insert positioning pins / support blocks at any position on the workbench surface, clamp them with a quick clamp, and complete the assembly of the tooling within a few minutes.
- Three-Dimensional Adjustment: Through different height modules, angle blocks, and rotating seats, the workpiece can be fixed and processed in any posture in space.
- Fast Changeover: During production changeovers, remove the existing fixtures, recombine the new modules, and there is no need to re-align, significantly reducing the changeover time.
Company Advantages
Significantly reduce the preparation time for tooling and enhance efficiency
- Traditional workwear: several hours to several days
- Three-dimensional workbench: clamping and positioning can be completed in just a few minutes
- Production changeover efficiency increased by 80% or more
Reduce the overall cost
- Eliminate a large amount of costs related to the design and manufacture of specialized fixtures
- Reduce the time for manual alignment and debugging
- Save workshop storage space and enhance the utilization rate of the site
Support customization and integration with automation
- The size, load-bearing capacity and structure of the workbench can be customized according to the customer's workpiece and workshop dimensions.
- It supports integration with welding robots, mechanical arms and transfer machines.
- We provide overall tooling solution design to help customers achieve automation upgrades.
Our Service Processes
Our free service hotline:+86 180 0619 3916
Pre-sales Consultancy
1
>>
Confirmation of order
2
>>
Production
3
>>
Multi-Channel Shipping
4
>>
Confirmation of recei
5
>>
After-sale Services
6
About us
Company profile
With years of dedication in welding fixture industry, we focus on quality and innovation. Centered on 3D Welding Table with Fixtures, we provide global customers with high-precision, modular and efficient flexible workholding solutions for welding and intelligent manufacturing.
From design and production to after-sales service, we adhere to strict standards to deliver reliable products and professional support.
Welcome worldwide customers for inquiry, cooperation and business negotiation.
