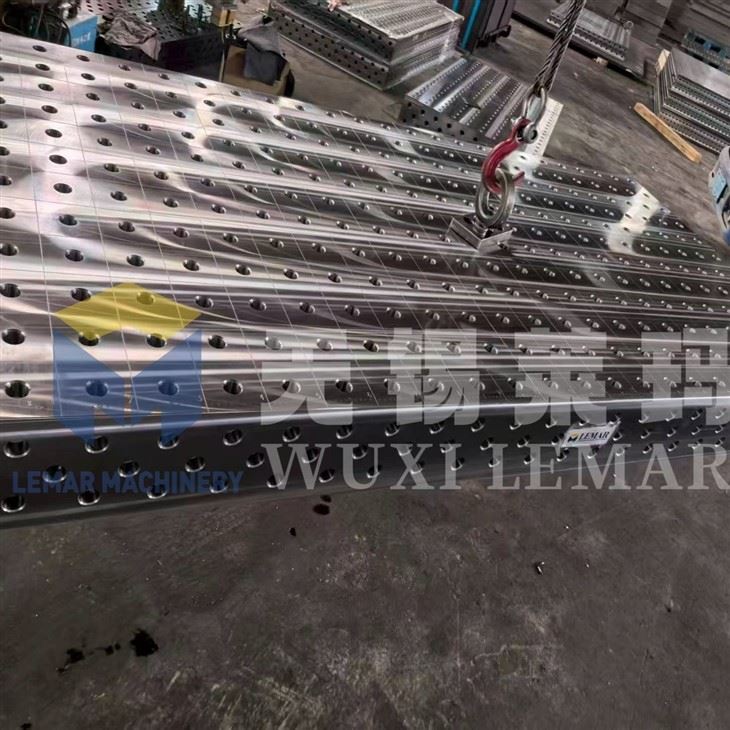

D28 3D Flexible Welding Platform
Material:Q355 Steel
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Nitrided
Type:3D D28
Size:1000*2000mm
Brand:Lemar
Contact Us:Eva(+8615995269947/Email:evasummer@lemarmetal.com)
WUXI LEMAR
Product Overview
D28 3D Flexible Welding Platform is a heavy‑duty modular welding fixture system, designed for positioning, clamping and assembly of large‑size heavy‑duty workpieces. Adopting Φ28 mm H7 precision hole system with 100 × 100 mm grid pitch, the table is 5‑sided perforated (tabletop plus four side faces). Combined with matching locking pins, angle blocks, square boxes, V‑blocks and clamps, it can build flexible 3D positioning fixtures quickly without custom‑made special jigs. It is widely applied in engineering machinery, vehicle frame manufacturing, steel structure fabrication, robotic welding workstations and workpiece dimension inspection.
Core hole system specifications
- Hole diameter: Φ28mm (H7 tolerance, φ28.065－φ28.149mm), compatible with M16 locking pins/bolts
- Grid hole spacing: 100×100mm, tolerance ±0.05mm
- Table thickness: 25mm; side height: 200mm
- The table and four sides have holes for lateral tooling extension and height adjustment.
D28 welding table vs D16 welding table Simple Comparison
| Item | D28 (This Model) | D16 |
|---|---|---|
| Hole Diameter | Φ28 mm | Φ16 mm |
| Hole Pitch | 100 × 100 mm | 50 × 50 mm |
| Tabletop Thickness | 25 mm | 15 mm |
| Suitable Workpieces | Heavy‑duty & large‑size steel structures, engineering machinery, vehicle frames | Medium‑small parts, precision small components |
| Load Capacity | High, 5‑10 tons | Medium, 1‑3 tons |
Two mainstream substrates
1. Q355B (Q345) High-Strength Steel Plate (Steel D28 3D Flexible Welding Platform)
- Integral CNC machining, artificial aging for stress relief; nitriding treatment, nitrided layer 0.25-0.35mm, surface hardness HV550-900, resistant to welding spatter, not easy to adhere to weld slag, wear-resistant and impact-resistant.
2. HT300 Gray Cast Iron (Cast Iron D28 3D Flexible Welding Platform)
- Casting + annealing and aging, better shock absorption performance, anti-deformation, suitable for high-precision welding; slightly higher cost, heavier.
Precision Specifications:
> - Flatness: ≤0.1mm / 1000mm (Grade 0 can achieve ≤0.05mm/1000mm, selected for robot welding)
> - Side perpendicularity to table surface: 0.1mm / 200mm
> - Surface roughness Ra3.2μm; table surface engraved with 100mm grid lines for easy and quick positioning.
Shipping & Packaging
Certification and testing documents
- CE certified (essential for export to Europe), compliant with EN standards;
- ISO9001 quality system;
- Standard warranty: 12 months for the main countertop, 1 year for accessories; extended warranty negotiable;
- Factory inspection protocol (Measurement Protocol) available, including measured data on flatness and hole tolerances, for customer acceptance upon warehousing.
Real‑World Customer Feedback
This real‑world workshop photo comes from one of our US customers using our Heavy‑Duty Steel Welding Table. Fully equipped with a complete range of modular fixtures and put through daily heavy‑duty welding‑shop operations, this table demonstrates excellent rigidity and reliable hole‑system compatibility. Highly satisfied with its real‑life performance, the customer plans to repurchase another welding table alongside additional tooling accessories. Repeat‑buy intent from end‑users stands as authentic proof of our table's durability and stable quality for metal‑fabrication work.
Contact us
If you are looking for a reliable D28 3D Flexible Welding Platform for your heavy‑duty welding production, please feel free to send us your inquiry.
We can provide customized size options, complete fixture kits, factory measurement protocol and competitive quotation according to your actual working requirements.
📞 Contact our sales team now
📧 Email: amywang@lemarmetal.com
📞 Phone: +86 180 0619 3916
*All Lemar products come with a 12-month warranty against manufacturing defects. Bulk and OEM orders are welcome.*
