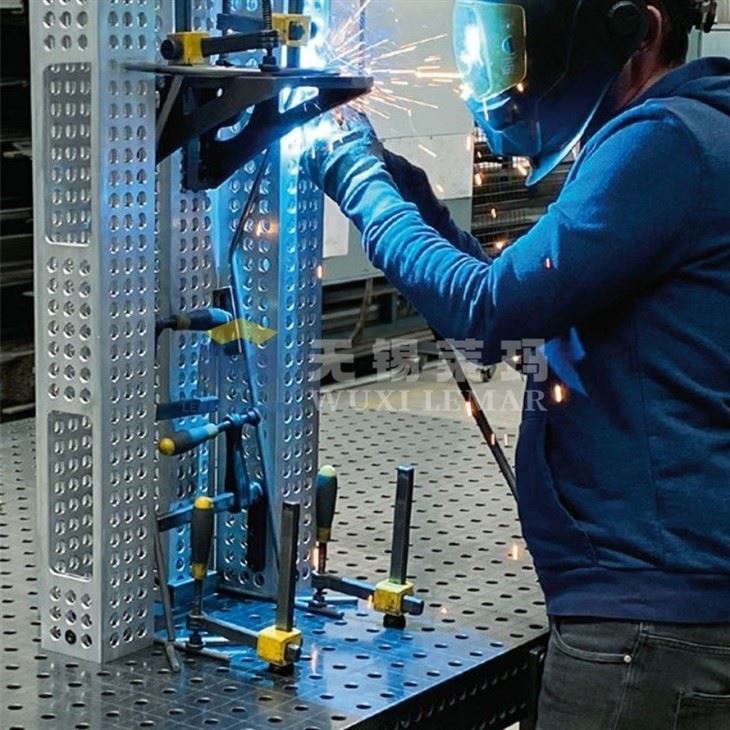

3D Steel Welding Platform







Multi‑plane 3D Positioning Capability

Pre‑drilled holes on top and side surfaces support fixture installation in three‑dimensional directions. Operators complete multi‑angle clamping without extra auxiliary brackets, greatly simplifying complex assembly welding work.

All‑steel Heavy‑duty Structural Performance

Thick steel plate body plus dense inner rib welding structure resist deformation. It can sustain heavy workpiece pressure and welding impact, keeping overall stability under long‑time high‑frequency workshop use.

Quick‑change Flexible Fixture Deployment

Compatible with full series of standard modular fixtures. Clamps, locating blocks and locking pins can be rearranged freely. Switching from one workpiece to another only needs simple disassembly and reassembly.



Heat‑resistant Anti‑spatter Surface Treatment
Special surface processing resists high‑temperature welding spatter adhesion. Molten slag is easy to clear away, protecting hole precision and reducing daily maintenance workload for workshop staff.
Flexible Size And Shape Customization
Besides regular rectangular platforms, special‑shaped structures can be produced according to project requirements. It matches special layout demands of non‑standard production lines and special processing stations.
Convenient Level Adjustment For Workshop Site
Matched fine‑tuning leveling legs help operators calibrate horizontal status quickly even on uneven factory floors. Stable horizontal conditions guarantee consistent welding assembly quality.

Customer Feedback

​​

​​

 ​​​

Multi‑angle complex steel structure assembly welding
Mechanical equipment frame three‑dimensional positioning
Non‑standard metal frame prototype trial‑making
Engineering machinery component processing
Job‑shop multi‑spec workpiece mixed production
Welding station construction for automated production lines

Q1: What is the difference between 3D steel welding platform and ordinary 2D welding table?
A1: The 3D version has mounting holes on side planes, supporting vertical and side fixture installation to realize multi‑angle positioning, while ordinary 2D tables only support fixture layout on the top surface.


Q2: Can I splice multiple 3D steel welding platforms together?
A2: Yes. Corresponding splicing accessories are available. Multiple platforms can be combined to build a larger three‑dimensional working area for oversized workpieces.


Q3: What will shorten the service life of this steel welding platform?
A3: Violent hammer striking on holes or surfaces, long‑term local concentrated overload and accumulated welding spatter without cleaning will cause performance decline. Please operate in accordance with working specifications.


Q4: Does the standard package contain fixture accessories?
A4: Standard delivery includes platform main body and supporting legs. Clamps, locking pins and other fixture parts are sold separately as optional items.


Q5: What information should I provide for custom 3D steel welding platform quotation?
A5: Please offer required dimensions, preferred hole standard, maximum workpiece weight and whether you need special‑shaped structure. Our engineering team will make technical evaluation for you.
