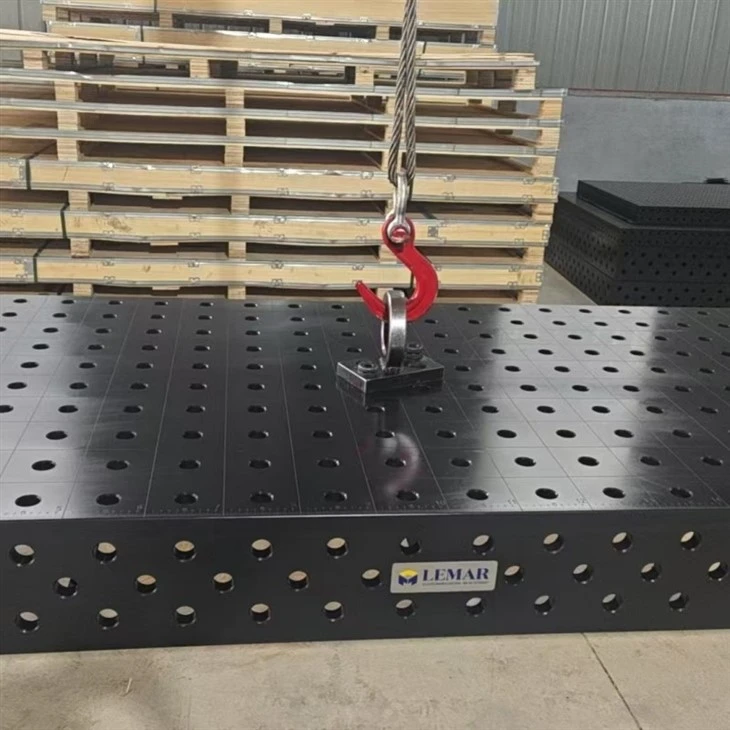

Heavy Duty 3D Welding Platform
Material:Q355 Steel/HT300 Cast Iron
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Nitrided
Type:3D D28
Size:2000*4000mm
Brand:Lemar
Contact Us:Eva(+8615995269947/Email:evasummer@lemarmetal.com)
Product Overview
This heavy‑duty 3D welding platform is engineered for high‑intensity industrial welding and assembling tasks. Adopting three‑dimensional modular hole grid design, it realizes multi‑direction locating and clamping for complex metal workpieces. The high‑strength main body absorbs welding stress and avoids surface deformation under long‑time heavy‑load operation. Operators can combine various fixtures freely to finish multi‑angle welding without repeated workpiece re‑clamping. It brings stable locating performance and simplifies complex assembly workflows for modern manufacturing workshops.
Our address:505-1 NO.8 JIEFANG WEST ROAD,LIANGXI DISTRICT,WUXI,CHINA
Phone Number:+86 159 952 699 47(Eva Summer)
Products Parameters
Products Advantages
Multi‑Direction Modular Locating
Three‑dimensional hole structure supports locating from horizontal, vertical and side directions. Complex shaped workpieces can be fixed firmly, removing frequent repositioning during multi‑surface welding work.
Outstanding Heavy‑Load Bearing Capacity
Thickened alloy steel platform body carries large‑size and heavy metal components. It resists bending distortion under static load and high welding thermal stress for consistent locating precision.
High Compatibility With Modular Fixtures
Matches complete series standard 3D welding accessories. Users can assemble clamps, support blocks and angle positioning pieces to build custom fixture layout for different product batches.
Stable Precision Under Continuous Production
Precision CNC milling processes the whole grid surface. Dimension accuracy remains reliable after thousands of production cycles, lowering defective parts caused by positioning drift.
Flexible Configuration For Batch Or Prototype Work
Perfectly adapts both mass production and one‑off prototype fabrication. No dedicated custom jigs are required when switching between different workpiece styles, saving jig manufacturing expenditure.
Long‑Lasting Surface Durability
Optional nitrided surface improves hardness against welding spatter, scratch and abrasive wear. Even in harsh workshop conditions, the platform keeps clean grid holes for smooth fixture installation.
High Purity Q355 steel Material
Tougher and more resistant to use
In-stock goods
Source manufacturer with guaranteed production capacity
High precision fixtures
Made by CNC machine,16mm/28mm two systems are compatible.
Adjustable legs
4 types legs:standard legs/adjustable legs/caster wheel legs/square legs.
Product Applications
The heavy duty 3D welding platform serves diverse industrial manufacturing scenarios. It applies to heavy machinery frame welding, truck component assembly, construction metal part processing, engineering equipment fabrication, container accessory production and large metal structure assembling. It fits heavy‑duty manufacturing factories, metal processing workshops, equipment repair plants and technical research laboratories.
Shipping & Packaging
Welcome to contact us
If you are seeking a robust 3D welding solution for heavy‑load production demands, feel free to send your inquiry. Share your workpiece size, expected load requirement and accessory demands. Our engineering team will evaluate your working condition and offer suitable platform proposal. Upgrade your welding workshop efficiency with our heavy duty 3D welding platform right now.
📞 Contact our sales team now
📧 Email: evasummer@lemarmetal.com
📞 Phone: +86 159 9526 9947
🌐 Online Inquiry:www.lemarmachine.com/modular-welding-table
*All Lemar products come with a 12-month warranty against manufacturing defects. Bulk and OEM orders are welcome.*
