High Precision Flat Welding Tables
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
Products Description

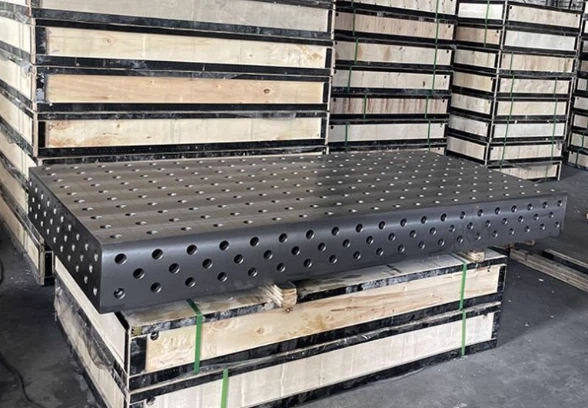

High Precision Flat Welding Tables
High Precision Flat Welding Tables are modular tooling platforms that are ultra-precisely machined and possess excellent flatness, parallelism, and dimensional stability. They are designed for welding, assembly, inspection, and measurement processes requiring extremely high positioning accuracy and repeatability. They serve not only as work surfaces but also as reference platforms for precision manufacturing systems.
Large enterprise scale
wide application of technology
high-quality customized services
High quality
quick delivery for our globad istributors
advanced equipment
quick delivery for our globad istributors
professional team
quick delivery for our globad istributors
one-stop solution
quick delivery for our globad istributors
Specifications and model number
The products are mainly divided into two series: D16 and D28. The D16 series mostly features a 50×50mm grid spacing, while the D28 series mostly features a 100×100mm grid spacing, accommodating different sizes of tooling fixtures.
Mainstream configuration
High Precision Flat Welding Tables
Table Dimensions: Small tables commonly measure 900×600mm, while large industrial-grade tables can reach 3.0m×1.5m or even larger. Some models can also expand their surface area through modular assembly.
Load Capacity: Small tables have a load capacity of approximately 1-1.5 tons, while large, heavy-duty models can support over 6 tons. For example, some models in the Alpha28 series can support up to 6000kg without casters.
Auxiliary Structures: Most tables are equipped with adjustable feet for easy leveling; some high-end models have tables that can be flipped, disassembled and reassembled, and even have positioning holes on the sides to support multi-directional clamping in both vertical and horizontal orientations.
Core application scenarios
| High Precision Flat Welding Tables |
Precision Welding Operations: This is the core welding fixture for workpieces requiring high dimensional accuracy, such as automotive chassis, engineering machinery structural components, and rail transit parts. It effectively reduces workpiece deformation caused by high-temperature welding, ensuring uniform welds and joint strength.
Multi-process Compatibility: In addition to welding, it can also serve as a precision assembly and inspection platform. For example, it can be used for dimensional verification of parts, or for assembly and positioning of precision machinery. Some models can even be used for pre-processing steps such as marking and drilling of workpieces.
Automation Adaptation: Many models can be integrated with automated equipment such as welding robots and positioners. For example, the patented positioning system of the Alpha28 series ensures consistency in fixture positioning during automated welding, meeting the needs of large-scale production.
Products Certification
Our Certificate
After Service
Our company has passed ISO90001 quality system certification, CE Certificate,ISO14001 environmental system certification.
Our company follows the business philosophy of dedication, diligence and meticulousness.
Guided by market demand, driven by technological innovation, capital operation as a means, scientific management as the cornerstone, dedicated to gratitude and feedback, to provide customers with value-for-money services, to bring overdue returns to shareholders and employees, and to start modern manufacturing.
Cost savings
Save your money with our logistics service taking advantage of quickly delivery.
Various services
We provide security of your delivery. You can use our online tracking system to check where your cargo is.
Proven Experience
Thousands of happy clients,hundreds of permanent customers are the result of our work.
Quality products
Our products have reached the international quality standards,
Technical Support
In the after-sales service,we provide technical services such as installation as well as commissioning and maintenance.
Free Support
If you have any product questions, please let us know, and we will provide you with free support for life.
Cross-border logistics optimization
Flexible Production Capacity: To meet the needs of overseas customers for small-batch, multi-batch orders, we have established a modular production system. For example, we pre-manufacture standard-sized tabletops and quickly assemble tooling and fixtures after receiving orders, shortening the delivery cycle (target: within 15-20 days).
Supplier Collaboration: We have signed long-term cooperation agreements with steel suppliers to lock in raw material prices and avoid cost fluctuations caused by rising steel prices; we conduct strict quality control on suppliers of tooling and fixtures (locating pins, clamps) to ensure compatibility and precision matching between parts and tabletops.
Capacity Reserve: Based on historical export data and trade show order forecasts, we reserve 20%-30% of production capacity to cope with surges in orders during peak seasons. We have also established an inventory early warning mechanism to prevent core component shortages from delaying deliveries.
Cross-border logistics optimization
Logistics Solution Customization: We design solutions tailored to different customer needs – air freight is recommended for customers with high time sensitivity, while sea freight (LCL or FCL) is chosen for large orders where cost is a primary concern; we collaborate with professional international logistics freight forwarders to optimize routes and reduce transportation costs (e.g., China-Europe freight trains offer faster transit times than sea freight and lower costs than air freight).
Cargo Tracking and Feedback: We provide customers with tracking numbers and real-time tracking links, and promptly notify customers for customs clearance upon arrival at the port; in case of transportation damage, we coordinate with the insurance company for claims and arrange for replacement parts to ensure a positive customer experience.
Customer photos
Recently, several overseas customers have reported that our Three-dimensional multi-functional steel component welding platform, with its three core advantages of high-precision positioning, flexible modular combination, and stable durability under heavy-duty conditions, has significantly improved their welding production efficiency and reduced tooling costs.
From raw material selection to CNC precision machining, from surface anti-rust treatment to standardized component design, we consistently manufacture every piece of equipment to the highest standards.
Whether in the automotive manufacturing, construction machinery, or rail transit industries, this welding platform can meet the welding needs of different scenarios and create tangible value for our customers!
FAQ
If You Are Interested In High Precision Flat Welding Tables, You Can Contact Us Through The Following Methods.
Our address
No.505 Jiefang Road,Liangxi District,Wuxi City,China
Phone Number
+86 18006193916
amywang@lemarmetal.com
Tips
1. Environmental Requirements
Temperature: 20±1℃ (AA grade), 20±2℃ (A grade)
Humidity: 40-60% RH
Cleanliness: ISO 7 or higher
Vibration: ≤0.5μm amplitude (10-100Hz)
2. Operating Procedures
Preheating: Preheat for 1-2 hours after power-on to reach thermal equilibrium
Load Distribution: Evenly distributed, avoid concentrated loads
Cleaning Procedure: Use specialized tools, avoid scratching the surface
Prohibited Actions: Direct impact, overheating during welding, chemical corrosion
