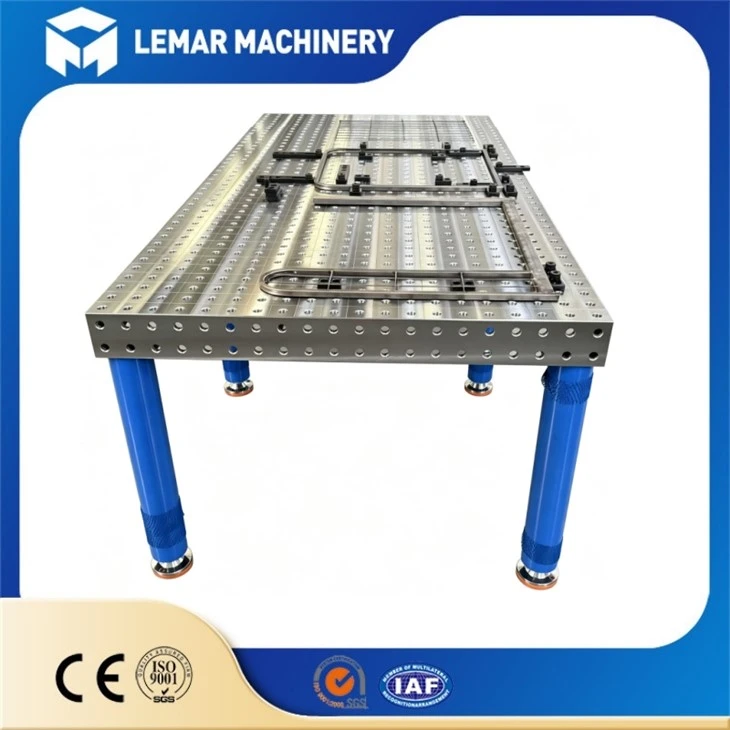

Modular 3D Welding Bench







Multi‑Face Spatial Fixturing Capacity

Five‑side hole layout supports multi‑angle clamping for complex spatial workpieces.

Two Standard Hole‑Grid Choices

Select D16 or D28 system to fit light‑medium or heavy‑load production scenarios.

Optimized Nitrided Surface Durability

Well‑controlled thin white compound layer reduces spatter sticking and surface wear.

Cut Custom‑Jig Procurement Costs

Re‑usable modular accessories remove repeated investment on one‑off tooling.

Fast Workpiece‑Switching Workflow

Quick fixture rearrangement shortens setup time between different product batches.

Stable Mechanical Anti‑Deformation Performance

Full stress relief treatment minimizes plate warping under long‑term workshop use.



High‑Precision Hole Position Consistency

Tight‑tolerance hole drilling guarantees high interchangeability for all matched modular accessories.

Good Compatibility With Collaborative Robots

Smooth stable datum plane fits cobot welding cells for semi‑automated manufacturing workflows.

High‑Quality Export‑Oriented Workmanship

Each unit undergoes complete inspection before shipment to satisfy strict overseas quality standards.

Expandable Combined Working Area

Multiple benches can be locked together to build larger fixture zones for oversized assembly tasks.

Low Long‑Term Operation Cost

Durable nitriding treatment lowers replacement frequency and reduces overall workshop tooling expenditure.

Customer Feedback

​​

​​

 ​​​

Metal part assembly and dimensional inspection
General job‑shop mixed‑batch welding
Equipment frame and bracket manufacturing
Sheet metal cabinet and housing fabrication
Cobot assisted semi‑automatic welding stations
Prototype development for metal processing workshops

Q1:What is the key difference between a welding bench and a common welding table?

This modular 3D welding bench adds multi‑side hole‑grid fixturing functions besides basic bearing support. It handles assembly and inspection work, while ordinary welding tables only provide simple flat welding surfaces.

Q2:How to preserve nitrided surface performance in daily workshop operation?

Clean welding spatter and metal chips after each working shift. Avoid sharp heavy hammer blows onto machined surfaces. Keep leveling feet evenly stressed.

Q3:Is special base frame available for the Modular 3D Welding Bench?

Anti‑vibration base frame belongs to optional add‑ons. It improves overall stability when the bench works with collaborative robot welding units.

Q4:Can you provide partial components instead of the whole welding bench set?

Separate bench body, leveling feet and various positioning accessories can be supplied individually according to customer project demands.

Q5:What payment and logistics options are available for overseas orders?

T/T is our primary payment method. We support EXW FOB CIF and DDP delivery solutions for global client diverse logistics arrangements.
