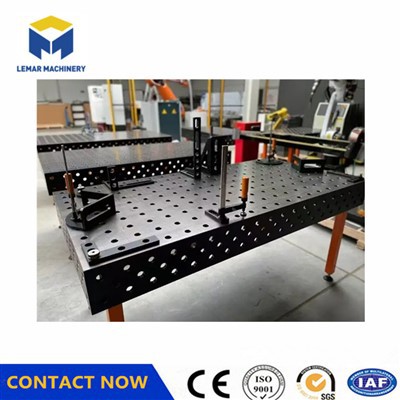

Stable Welding Table With Clamps
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
product introduction
Product Key Model
2D welding Table
Surface material: Q235 steel plate / cast iron
Surface thickness: 8–12 mm
Surface structure: Flat plate + T-slot or simple round hole
Workbench size: 1000×500 / 1200×600 / 1500×750 mm
Load-bearing capacity: 300–800 kg
Flatness: ±0.3–±0.5 mm/m
Height: 700–800 mm
Fixtures: Ordinary T-type clamp, quick clamp
Function: Only for flat welding, simple clamping
Applicable: Sheet metal, flat plates, simple workpieces
3D welding Table
Surface material: 45# steel / cast steel / nitrided hardened steel
Surface thickness: 16–28 mm
Piercing specifications: φ16 mm / φ28 mm, spacing 50 mm × 50 mm
Workbench dimensions: 1200×800 / 1500×1000 / 2000×1000 / 2400×1200 mm
Load-bearing capacity: 1000–5000 kg
Flatness: ±0.05–±0.1 mm/m
Hardness: HRC40–55
Repeatability positioning accuracy: ±0.05 mm
Module system: Support angle iron, positioning block, quick fixture, column, angle frame, etc. are fully compatible
Functions: Three-dimensional positioning in X/Y/Z space, three-dimensional frame welding
Applications: Frame, box, construction machinery, high-precision tooling
D16 series
Diameter: Φ16 mm
Pitch: 50×50 mm
Table surface thickness: 11.5–13 mm
Platform height: 100 mm
Load capacity: ≤2 tons
Flatness: 0.1 mm/1000 mm
Verticality: 0.05 mm/200 mm
Adaptor bolt: M8
Material: Q235/Q355 steel, HT300 cast iron
Surface treatment: blackening, nitriding, galvanizing
D28 series
Diameter: Φ28 mm
Pitch: 100×100 mm
Table surface thickness: 24.5–27 mm
Platform height: 200 mm
Load-bearing capacity: ≥10 tons
Flatness: 0.1 mm/1000 mm
Verticality: 0.05 mm/200 mm
Adapting bolts: M16
Material: Q235/Q355 steel, HT300 cast iron
Surface treatment: blackening, nitriding, galvanizing
We also offer other types of welding machines. If you need them, please contact me.
product dimensions
Product video
Structure and Key Components
Surface material and design
Industrial-grade models are mostly made of thick steel plates (Q235 / low-carbon steel, thickness ≥ 50mm) or high-grade cast iron; the tabletop often has grid holes / T-shaped grooves, facilitating quick positioning of fixtures; the surface undergoes annealing, sandblasting, blackening / galvanizing treatment, which is rust-proof and not prone to welding slag sticking;
Lightweight / portable models can be selected with aluminum alloy, suitable for small-scale maintenance and mobile operations.
Frame and support: box-shaped closed structure + cross rib plates, combined with adjustable horizontal legs; large platforms will be fixed with anchor bolts; the load capacity ranges from several hundred kilograms to several tons.
Fixture system (standard configuration)
T-shaped clips / T-shaped bolts: Embedded in T-slots or grid holes, for quick positioning;
Toggle clamps: Quick tightening / release, suitable for batch processing;
Magnetic fixtures: Suitable for temporary positioning, for irregular parts;
Angle gauges / positioning blocks: Assist in precise angle welding (90°, 45°, etc.).
Additional features: Ground terminals (anti-electric shock, stable arc), countertop deflection grooves (for removing welding slag), side tool slots, storage layer boards.
Advantages and Work Flow
Comprehensive Understanding of Stable Welding Table with Clamps
Core advantages: Improve welding accuracy, reduce rework; Increase efficiency (multiple weld points per single clamping); Enhance safety (workpiece does not shake, prevents burns); Extend the lifespan of the welding machine and consumables.
Standard usage steps: Adjust the platform surface → Place the workpiece at the designated position → Use fixtures / positioning blocks for locking → Connect the workbench grounding → Start welding → Release the fixtures after cooling.
product picture
Packaging & Transportation
after-sales service
Long-term warranty
Standard product warranty against manufacturing defects.
Prompt replacement or repair service for quality issues within the warranty period.
Strict quality tracking system to ensure accountability and continuous improvement.
