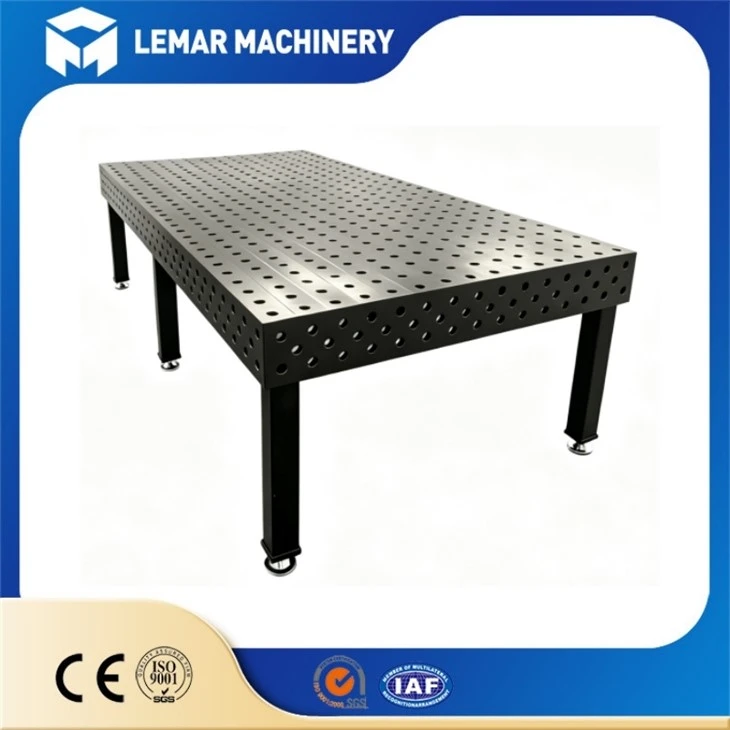

Wide Welding Table
Material:Q355 Steel
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Nitrided
Type:3D D28
Size:1000*2000mm
Brand:Lemar
Contact Us:Eva(+8615995269947/Email:evasummer@lemarmetal.com)
Product Overview
Our Wide Welding Table is purpose‑built for large‑format metal fabrication that demands ample lateral working space. Unlike standard narrow welding platforms, this broad tabletop delivers generous horizontal area to accommodate bulky, wide‑span workpieces without frequent repositioning. Manufactured from heavy‑duty steel plate with full‑coverage D28 or D16 hole grid, it enables multi‑point clamping across the entire broad surface. It removes restrictions caused by limited table width when assembling large panels and wide frame structures. Reinforced internal ribbing prevents lateral bending under uneven distributed loads. It supports simultaneous multi‑component fixture setup and fits both manual welding and robotic cell integration, bringing higher productivity for fabricators handling large‑size parts.
WUXI LEMAR MACHINERY
Tel: +86 510 88886966
Phone:+8615995269947
Email:evasummer@lemarmetal.com
Address: NO.280-25 Xicheng Road,Liangxi District Wuxi,CN
Structure and Key Parameters
 |
Key Advantages
Expansive Broad Working Surface
The widened table layout provides sufficient lateral space for large panels and wide frames. Multiple sets of clamps and locating blocks can be arranged side by side. Operators can secure full‑width workpieces in one single setup instead of shifting parts repeatedly during production.

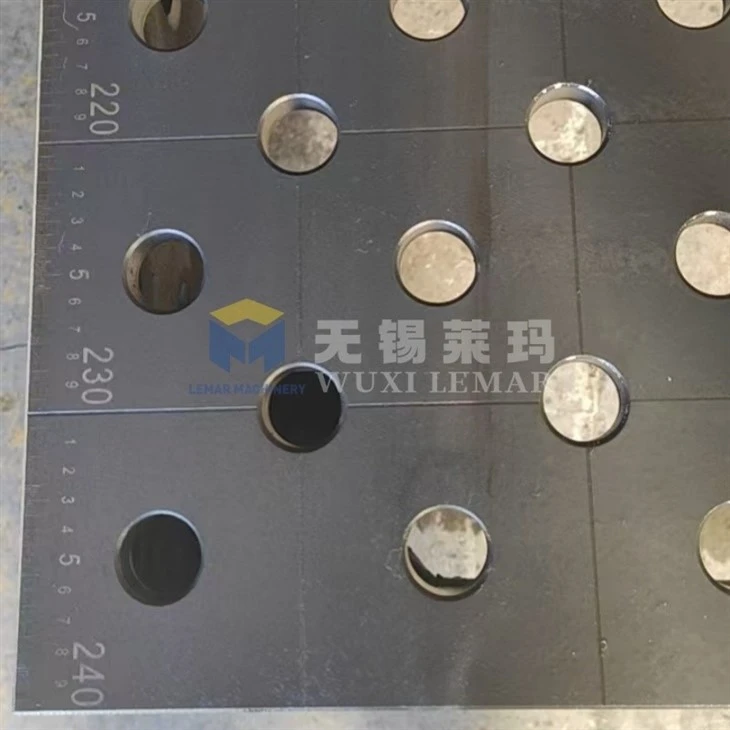

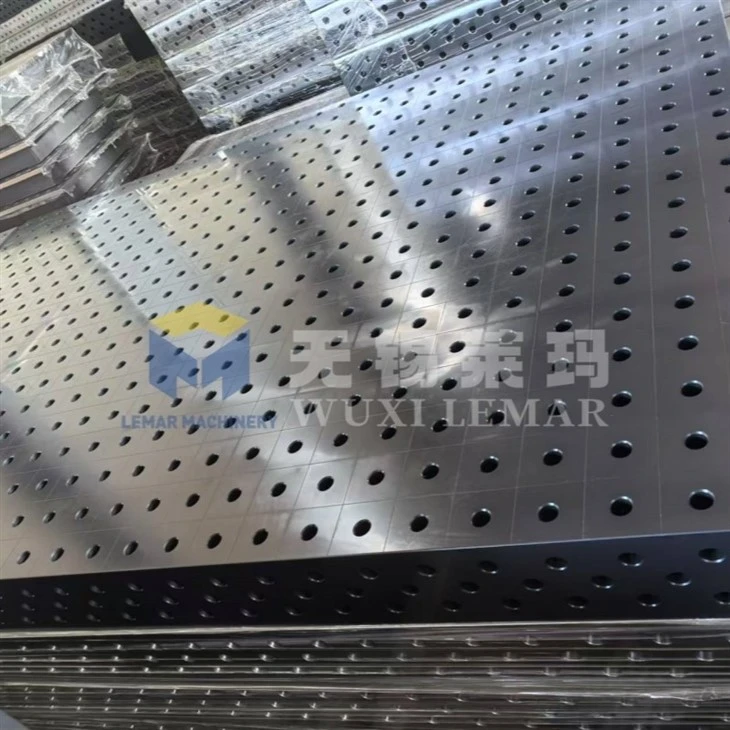

Full‑Width Continuous Hole Layout
Locating holes run across the complete width of the table with no dead zones. Fixtures can be mounted at any lateral position. It supports flexible clamping for irregular wide‑profile components and adapts to constantly changing workpiece outlines.
Anti‑Bending Reinforced Lateral Structure
Extra transverse stiffening ribs are built inside the table core. This design counteracts bending stress generated by heavy loads placed off‑center on the broad tabletop. Long‑term flatness is maintained even under uneven weight distribution.
Reduced Workpiece Handling Times
Large wide workpieces can be fully supported on the table surface. There is no need to partially prop workpieces with external temporary supports. It lowers risks of part slipping, position drift and accidental damage during welding operations.

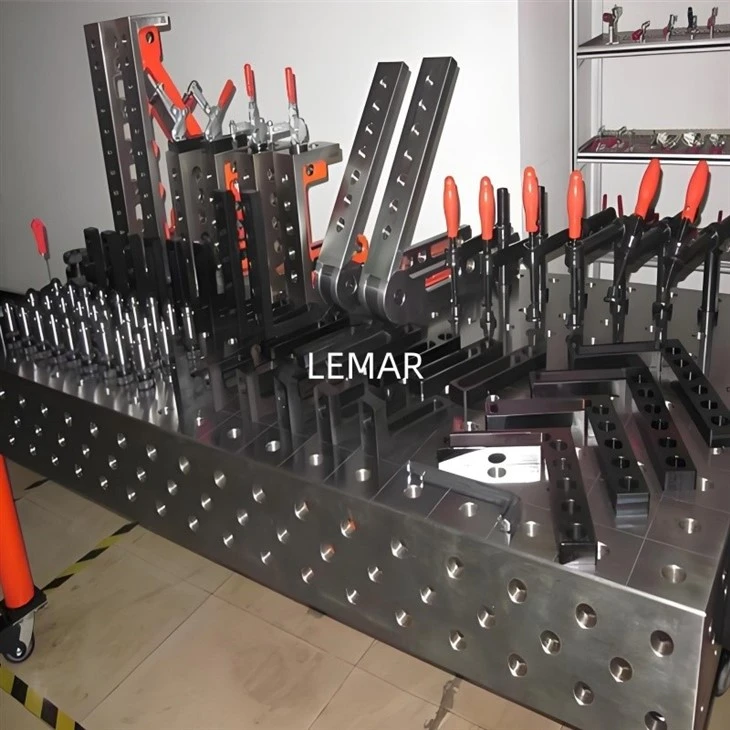

High Compatibility With Standard Modular Tooling
All holes follow international standard dimension. Existing D28 or D16 clamps, angle supports and stops can be used directly. There is no requirement to purchase special exclusive tooling for this wide‑format platform.
Flexible Customization For Workshop Layout
Table width can be adjusted to match factory bay space and typical workpiece dimensions. Support leg spacing can be re‑engineered for extra‑wide versions. It can be configured for manual stations or fitted within robotic welding work cells.
Product Applications
This Wide Welding Table fits multiple large‑scale metal‑working scenarios. It serves large sheet metal panel assembly for cabinet and enclosure manufacturing. It handles wide‑span frame fabrication for agricultural and construction equipment. It supports multi‑part simultaneous positioning for container component welding. It works for heavy base frame assembly in general machinery workshops. It is suitable for prototype building of oversized metal structures. It also performs dimensional checking and correction for large finished welded assemblies.
Shipping & Packaging
FAQ
Q1:What risk comes with placing heavy load on one side of this wide table?
A:Our internal transverse reinforcement minimizes lateral bending. Always keep load within the rated capacity. Concentrated offset heavy loads should be avoided to preserve long‑term table flatness.
Q2:Can I combine several wide tables to create an extra‑large working area?
A:Yes. Matching edge connection accessories are available. Multiple units can be joined side‑by‑side. Hole grids will stay aligned for continuous clamping across combined tabletops.
Q3:Which hole standard should I choose D16 or D28 for wide heavy workpieces?
A:D28 offers stronger locking force and is preferred for bulky heavy components. D16 works well for lighter wide sheet‑metal parts. Your existing clamp inventory should also be taken into consideration during selection.
Q4:Is nitrided surface treatment necessary for wide table models?
A:Nitriding is an optional upgrade. Precision milled surface already delivers accurate positioning. Nitriding mainly improves spatter resistance and surface durability for high‑volume daily production.
Q5:How is the wide table packed for sea export shipment?
A:Use extra stable non-pesticide-treated wooden boxes for packaging. Hard protective pads cover the entire processing surface to prevent scratches and deformation during long-distance sea transportation.
Q6:Do you supply technical drawings for workshop space planning?
A:We can provide general dimension drawings upon request. For highly customized wide‑size versions, custom layout drawings will be offered after confirming your order specifications.
Contact us
If your workshop frequently processes large‑width workpieces and struggles with insufficient working space, our Wide Welding Table will solve your spatial limitations. Share your typical workpiece sizes, target table dimension and workshop site constraints. Our engineering team will evaluate your real‑world conditions and deliver practical suggestions plus complete quotation. Reach out to our sales team today to upgrade your large‑format welding fixture solution.
📞 Contact our sales team now
📧 Email: amywang@lemarmetal.com
📞 Phone: +86 180 0619 3916
*All Lemar products come with a 12-month warranty against manufacturing defects. Bulk and OEM orders are welcome.*
