Stepped Dowel Pin
Material:Stainless Steel
Type:Stepped Dowel Pin
Application:Heavy Industry, Mining, Water Treatment, Healthcare, Retail Industry
Products Description
About Product

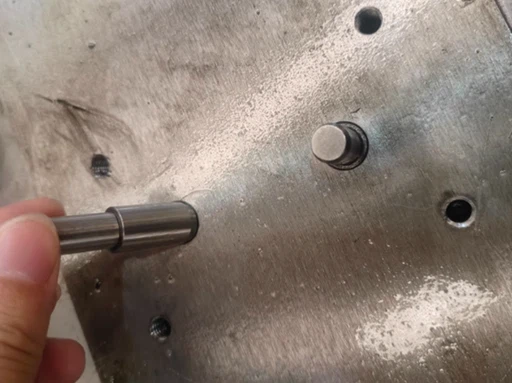

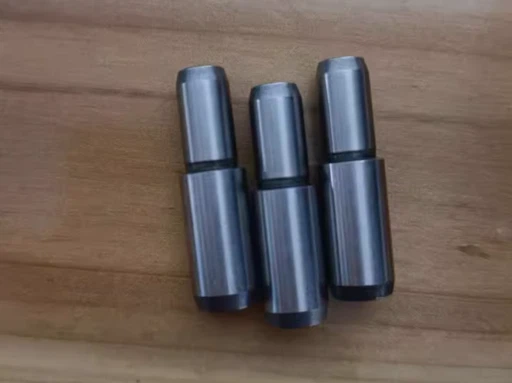

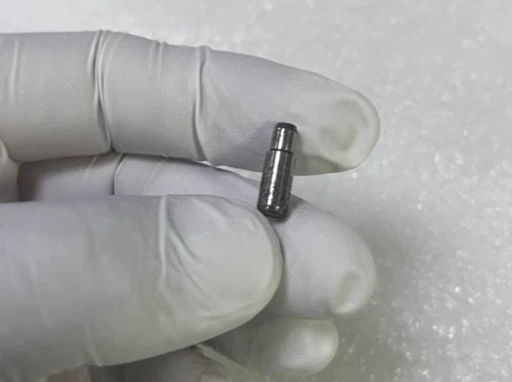

Stepped Dowel Pin belongs to a fixed part and can be used to connect mechanical equipment to make it run stably. Compared with traditional cylindrical pins, this type of cylindrical pin has a step-like structure at one end, which is easier to fix and position during installation.
Products Parameter
|
TYPE D(mm) |
L(mm) | d(mm) | dL(mm) |
| 5 |
15 | 4 |
5 |
| 25 | 10 | ||
| 6 |
20 | 5 |
10 |
| 30 | 15 | ||
| 8 |
25 | 6 |
10 |
| 35 | 15 | ||
| 10 |
35 | 8 |
15 |
| 40 | 15 |
Products application
Stepped Dowel Pin
is widely used in machinery manufacturing, electronic equipment, communication equipment, automobile manufacturing and other fields, such as mechanical parts of the drive shaft, screw lifting mechanism, machine tool transmission mechanism. It is characterized by easy to use, stable and reliable, simple structure, etc.
Products selection
In the process of use
you need to pay attention to the following
First:
When selecting Stepped Dowel Pin, it is necessary to consider the installation environment, the load required and the operating speed, and select the type according to the corresponding standard specifications.
Second:
The surface should be checked before use to ensure that there is no rust and damage;
When installing, it is necessary to ensure that the processing accuracy and size of its accessories meet the requirements;
Third:
Before fixing, the grease, dust and other impurities of the step cylindrical pin should be removed;Do not use too much force when fixing, otherwise it will cause deformation or damage;
During use, check and maintain it regularly .
FAQ
why choose us?
Our company is a professional fastener manufacturer integrating design, production, testing and sales. The company mainly produces and sells stainless steel machine screws, self-tapping screws, set screws, self-tapping self-drilling, rivets and other high-quality precision fasteners.
one-stop solution
professional
high quality
Latest News
What should we pay attention to when designing and processing?
Stepped Dowel Pin should be designed to reduce their volume and weight as much as possible and improve their strength and service life. During the processing process, processes such as cold heading and heat treatment can be used to ensure its accuracy and surface quality. In addition, brightness and hardness tests are also required to ensure that they meet the relevant standards.
