Rubber Bonded Washer
Washer type:Flat
Metal:Stainless steel
Function:Waterproof Sealing washers
Products Description
Rubber Bonded Washer, also known as EPDM anti-loosening washer,EPDM Rubber Bonded Washer,EPDM Bonded Sealing Washers, is a washer specially designed to prevent threaded connections from loosening..

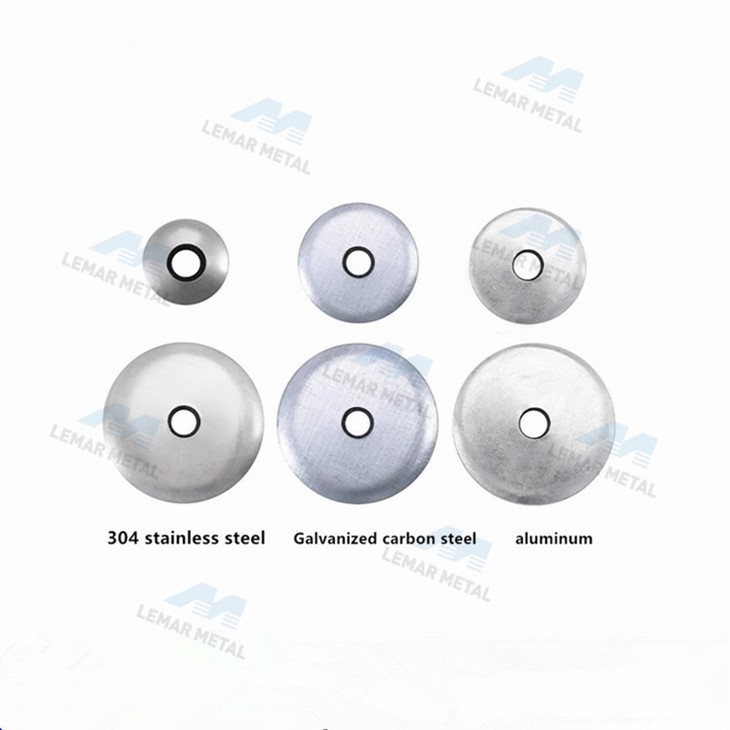

It is usually made of stainless steel/carbon steel/aluminum + EPDM (ethylene propylene diene monomer rubber), which can form an airtight seal between bolts or screws and hard surfaces to provide waterproof and sealing effects.
This sealing gasket has good weather resistance, chemical resistance and elasticity, so it is very suitable for fixed applications in outdoor or harsh environments.
Products parameter
|
Model |
DC |
D |
Thickness H |
|
4.2*12 |
4.2mm |
12mm |
2.5mm |
|
4.8*14 |
4.8mm |
14mm |
2.5mm |
|
5.5*16 |
5.5mm |
16mm |
2.5mm |
|
6.3*16 |
6.3mm |
16mm |
2.5mm |
Products characteristics
EPDM Rubber Bonded Washer have the characteristics of good weather resistance, good anti-loosening effect, easy installation, efficient locking effect and wide application range. These characteristics make it an indispensable component in the fields of machinery, automobiles, construction, electronics, chemicals, etc.
