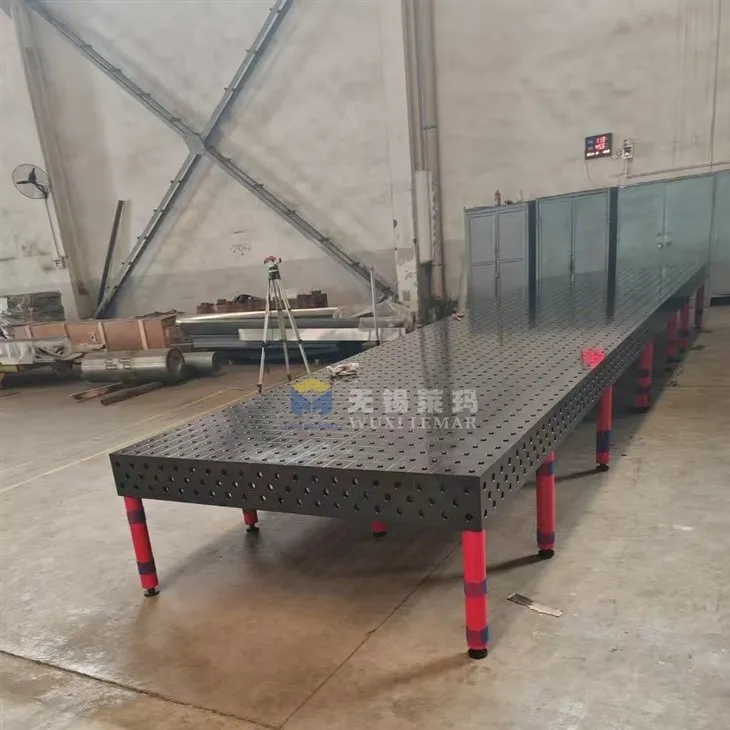

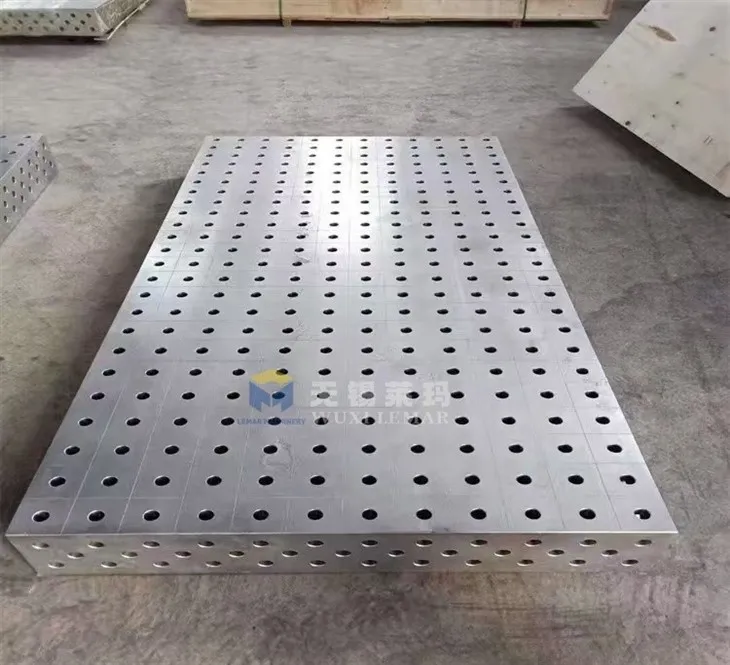

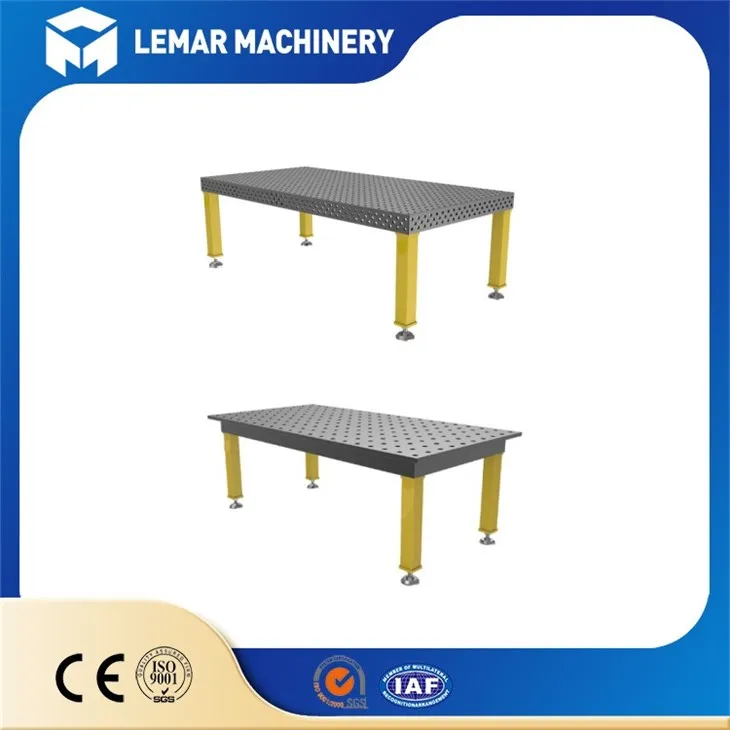

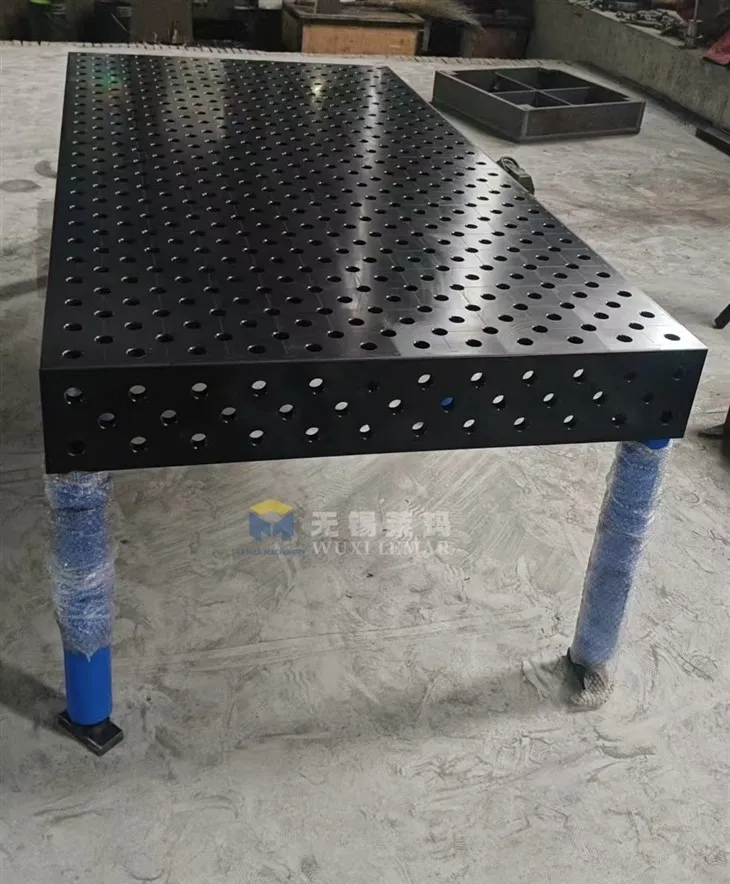

2D 3D Combined Welding Table
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
product introduction
2D 3D Combined Welding Table
2D mode: Uses only the top surface for X/Y axis planar positioning, suitable for planar workpieces such as flat panel splicing and simple frames.
3D mode: Simultaneously using the top surface + four sides (a total of 5 precision-machined surfaces), it achieves full-space positioning in X/Y/Z three axes, suitable for complex three-dimensional structures and multi-faceted welded workpieces.
The 2D 3D Combined Welding Table solves the problems of traditional tooling being simple, inefficient, and lacking precision. Through modular, standardized, and hole-system design, it achieves a high-precision, high-efficiency, and highly flexible production method, making it the preferred equipment for small-batch, multi-variety manufacturing enterprises.
Product Specifications
The following are the standard dimensions of the welding stations manufactured by our company.
Unsure if this applies?
Our company offers free consultation services. If you are unsure how to choose the right welding station, simply send me a photo of your workpiece via private message, and I will provide you with the most suitable solution.
Accessory set
Are you still struggling to choose accessories?
-----------DM us for more accessory options
Main functions and advantages
2D 3D Combined Welding Table
- High Flexibility: One platform covers all planar and three-dimensional welding scenarios without the need to change equipment.
- Quick Changeover: Utilizing locating pins/quick clamps, tooling changes can be completed in minutes, significantly reducing preparation time.
- Guaranteed Precision: High repeatability ensures consistency in batch products and reduces rework.
- Space Expansion: Can be clamped on five sides, and multiple units can be spliced or vertically expanded to accommodate extra-large/extra-high workpieces.

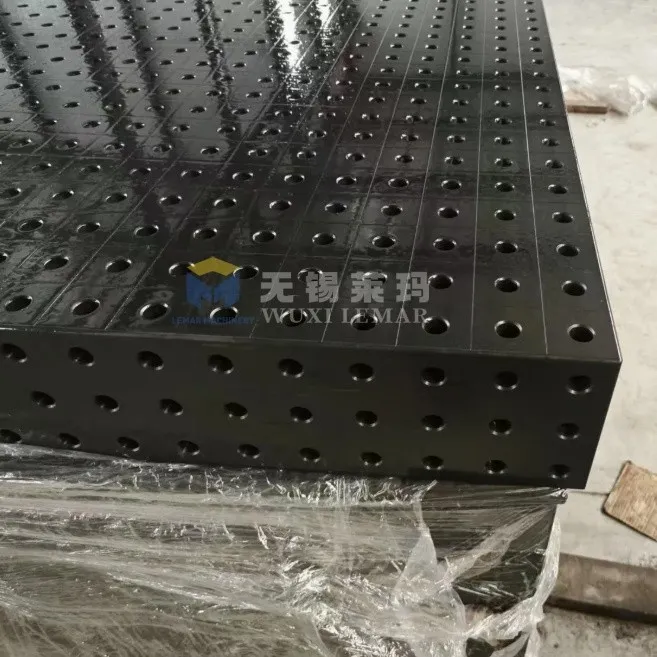

- Durable and Easy to Maintain: Nitrided surface prevents weld slag adhesion, high hardness, and long service life.
Product video
Core factory advantages
Our unique advantages
Modular clamping system, globally compatible
- Complete set of D16/D28 standard accessories: locating pins, clamping devices, square boxes, angle rulers, etc.
- 100% compatible with mainstream European brands, allowing customers to freely expand upon their options.
- Quick clamping reduces changeover time by 50%.
High cost-performance ratio, 30%–50% cheaper than European brands.
- Equal precision and quality, more competitive pricing
- Reduce intermediaries, direct factory supply to overseas customers
- Long-term partners enjoy bulk discounts and customized solutions
Company profile
LEMAR MACHINERY
Starting locally and expanding to serve welding fixture partners in over 30 countries worldwide, this is our growth story:
2005 🏭 Founding Vision: Rooted in China, dedicated to welding equipment R&D;
2007 🌍 Going Global: Initiating a globalization strategy and upgrading products to international standards;
2008 ⚙️ Comprehensive Upgrades: Added 3D welding platforms and other production lines, transitioning into a comprehensive solution provider;
2015 ✅ Quality Certification: Obtained CE/GS certifications and entered the high-end European and American markets;
Today 🌟, we are present worldwide, serving high-end manufacturing sectors such as automobiles, wind power, and shipbuilding, earning the trust of global clients with our expertise.
Certificate of Product Quality
Advantages of foreign trade services
Technology First
We offer a variety of welding tables.
Full range product matrix, one-stop procurement more worry free
- From basic welding roller frames and positioners, to core 2D/3D flexible welding platforms, CNC drilling machines, modular fixtures, all categories are independently produced
- Support standard model spot supply+customized solutions, providing solutions from single equipment to the entire production line according to customers' workpiece size, load-bearing capacity, and accuracy requirements
- The modular fixture system is 100% compatible with mainstream European brands, allowing customers to seamlessly replace and freely expand
Mature foreign trade supply chain and delivery capability
- Supported by a professional foreign trade team, familiar with various trade terms such as FOB/CIF/DDP, and able to provide door-to-door logistics solutions
- Regular models have sufficient inventory and respond quickly to short lead times; Customized orders also have mature production scheduling processes to ensure timely delivery
- Provide a complete set of English technical materials, installation manuals, after-sales guidance, and localized communication services to reduce customer communication costs
