Modular Welding Table Kit
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
product introduction

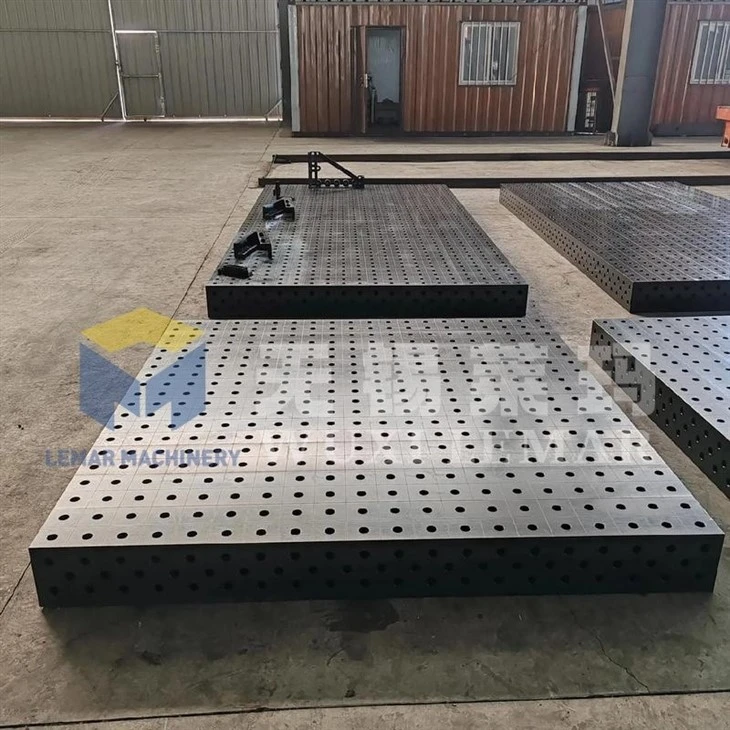

Modular welding table kit
The Modular Welding Table Kit is a fixturing system comprising a platform with a standard grid of holes and freely combinable clamps. Designed for the rapid positioning and clamping of workpieces, it enables high-precision, repeatable welding and assembly operations, serving as a core fixturing solution in modern flexible manufacturing.
For more information and special offers, please contact me.
Product Specifications
The following are the standard dimensions of the welding stations manufactured by our company.
Unsure if this applies?
Our company offers free consultation services. If you are unsure how to choose the right welding station, simply send me a photo of your workpiece via private message, and I will provide you with the most suitable solution.
Accessory set
Are you still struggling to choose accessories?
-----------DM us for more accessory options
Materials and surface treatments
Cast Iron Platform (HT300)
- Impartial casting, annealed, non-deformable, impact-resistant, high-temperature resistant
- Suitable for heavy workpieces and long-term high-precision use
Steel Plate Welding Platform (355 / Thick Plate)
- Lower cost, lighter weight, can be made in large sizes
- Suitable for light / medium sheet metal, general welding
Surface Treatment
- Raw machined
- Nitriding: Rust prevention, wear resistance, prevents weld slag adhesion, high-end standard
- Paint / Spray: Economical, rust prevention but not resistant to weld slag heat
Product Advantages
Ultimate Flexibility:A single tooling system accommodates high-mix, low-volume production-eliminating the need for repetitive custom fixture fabrication and reducing changeover times by over 70%.
High Precision: Features ±0.02mm hole grid positioning and exceptional clamping repeatability, ensuring welding consistency and minimizing rework.
Scalable: Multiple units can be seamlessly joined together, and the tabletop can be fitted with extension plates to accommodate oversized workpieces (such as vehicle frames and large enclosures).
Durable & Economical: The nitrided or hardened tabletop boasts a service life of 5–10 years, resists weld spatter, and is easy to clean; over the long term, the total cost of ownership is lower than that of traditional tooling.
Safe & Efficient: Offers high structural rigidity and stability, effectively minimizing welding deformation; rapid fixture setup and removal boost operational efficiency by 30–50%.
Product video
Core factory advantages
1.Why choose us?
1. Mature D16/D28 Dual-Hole Standards
- Fully compatible with common standards in European, South American, and Middle Eastern markets.
- Hole accuracy, flatness, and locking mechanisms are interchangeable with international brands.
2. Complete Precision Machining Equipment Ensures Precision
- Utilizing CNC gantry milling machines, precision grinding machines, and coordinate boring machines,ensuring long-term stability in flatness, hole accuracy, and repeatability.
3. Unique Surface Treatment Process
- Providing precision milling + gas nitriding treatment,
the table surface is wear-resistant, rust-proof, non-stick to welding slag, and has a lifespan 3-5 times longer than ordinary platforms.
4. Extensive experience in designing clamp kits
- All clamping devices, locating pins, angle rulers, V-blocks, support blocks, etc., are independently molded, resulting in strong clamping force, fast operation, and durability.
Shipping & Packaging
Certificate of Product Quality
Advantages of foreign trade services
Technology First
We offer a variety of Modular Welding Table Kit.
Rapid response & professional foreign trade team
Multilingual support (English, Spanish, etc.), inquiry response within 24 hours, technical solutions and quotations provided simultaneously.
Complete technical solutions are available
Based on the customer's workpiece size, weight, production capacity, and budget, we recommend the most suitable table size, D16/D28 system, and number of fixtures.
Strict quality inspection and shipping standards
Every modular welding table kit goes through raw material inspection, precision machining testing, flatness and verticality detection, load-bearing performance verification and finished product sampling audit. All items are strictly checked dimensionally, structurally and surface-finishedly before warehouse delivery.
Mature export packaging and logistics
Standard export plywood/wooden crates/steel boxes, supporting various terms such as FOB, CIF, and DDP. We have long-term, stable partnerships with freight forwarders and extensive experience on dedicated lines to Europe, America, South America, and the Middle East.
we are here for you
WUXI LEMAR MACHINERY EQUIPMENTS CO.,LTD
