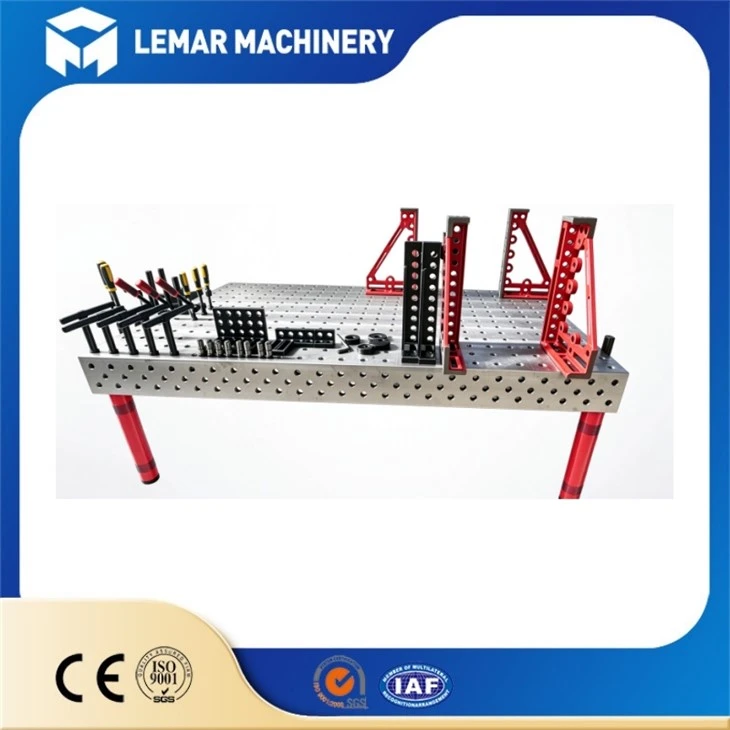

Robust 3D Welding Table

Superior Rigid Anti-Deformation Structure
The reinforced ribbed frame eliminates bending stress generated during long welding cycles. It keeps the table surface flat and stable even under heavy concentrated loads, avoiding dimensional drift of finished workpieces.

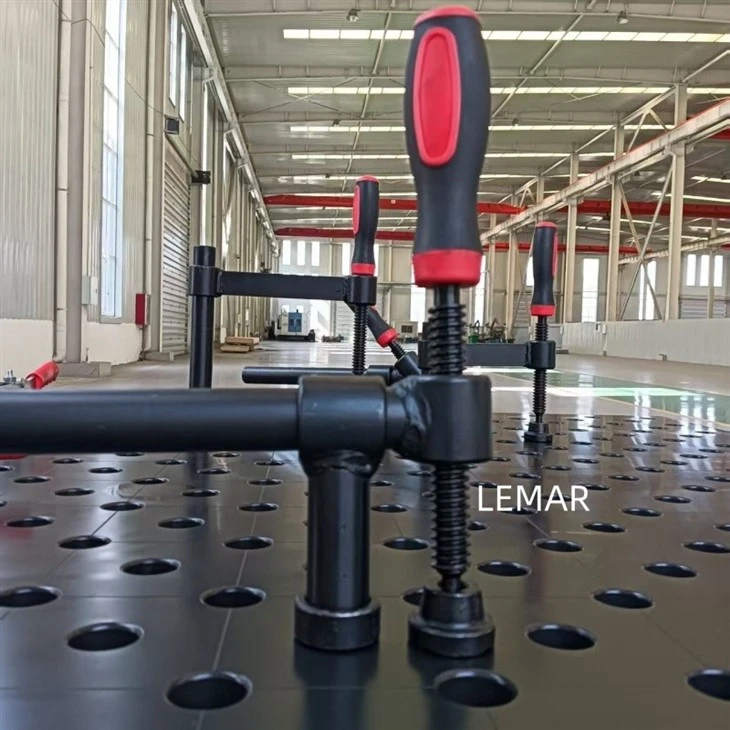

Full 3D Multi-Side Locating Grid

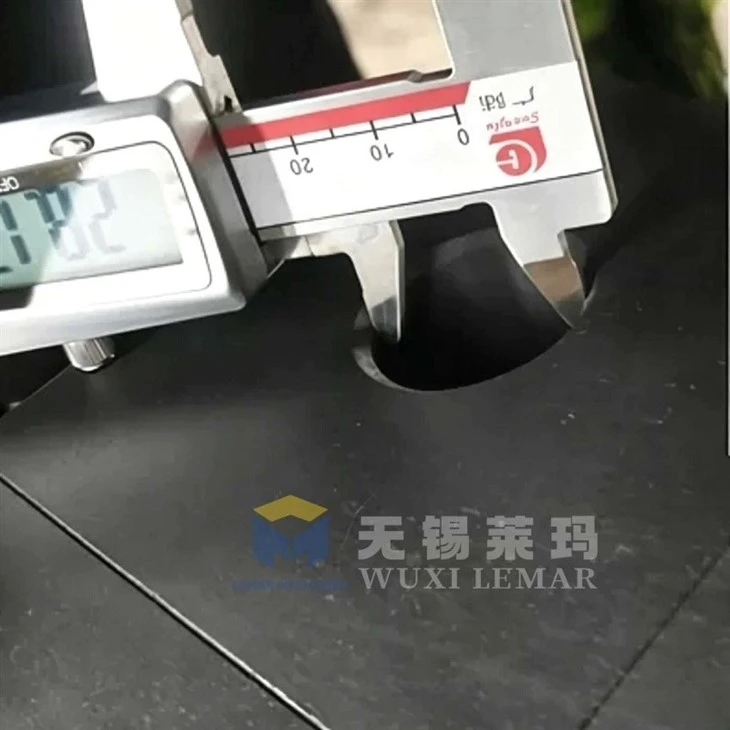

Precision drilled holes run across the tabletop and side skirts. Operators can mount clamps and positioning pins from horizontal and vertical directions to secure complex tubular and frame parts.

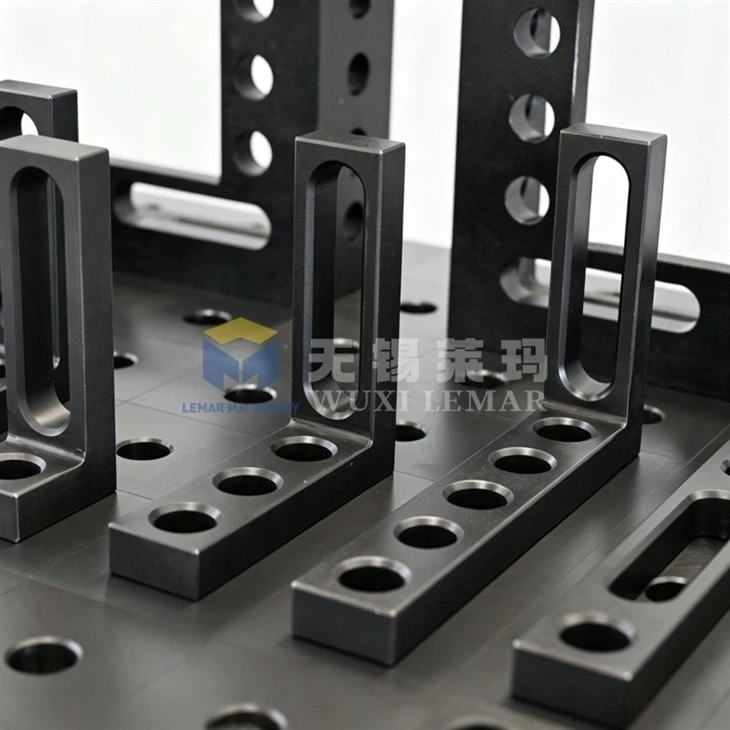

High Compatibility With Standard Fixture Kits
All hole patterns follow universal industrial standards. Clamps, locating pins, support blocks and quick locking components can be installed and swapped without extra modification.

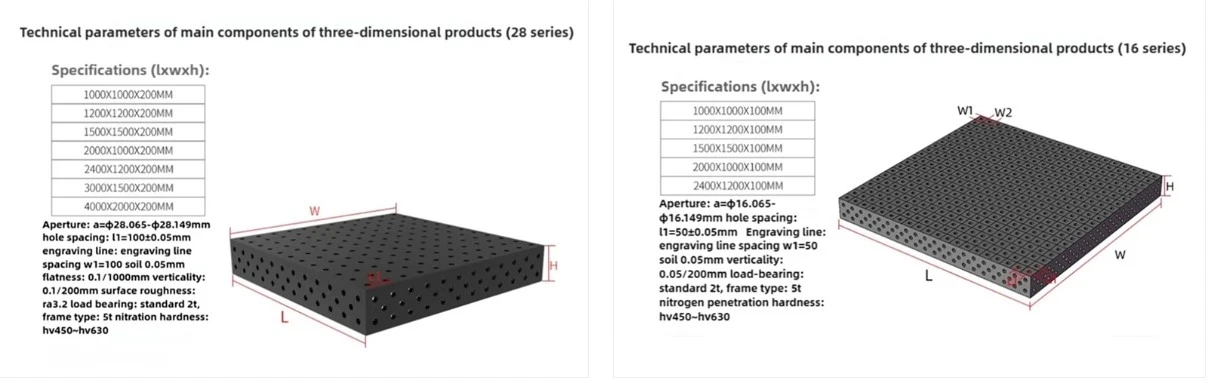

Q1: What is the difference between the 16mm hole and 28mm hole version?

A1: The 16mm hole table suits precision light and medium fabrication jobs. The 28mm hole table carries larger clamping force and is designed for heavy structural welding. Fixture sets for these two systems are not interchangeable.

Q2: Can I order the table without the nitrided surface treatment?

A2: Yes. Raw steel non-nitrided tables are available at a lower cost. This option fits low-frequency use and projects where surface wear is not a major concern.

Q3: Is the table able to be delivered with a full accessory kit?

A3: We can supply matched fixture kits together with the table. We can also send you a separate accessory list if you only need to select individual clamps and pins.

Q4: What warranty coverage do you provide?

A4: We offer a 12 month factory warranty covering manufacturing defects. The warranty does not cover damage caused by improper operation, welding spatter corrosion or overloaded use.
