Universal Welding Table
Application:Welding&Assemble
Process:CNC Machining
Surface:Nitrided/Normal
Type:3D
Brand:Lemar
Product Introduction

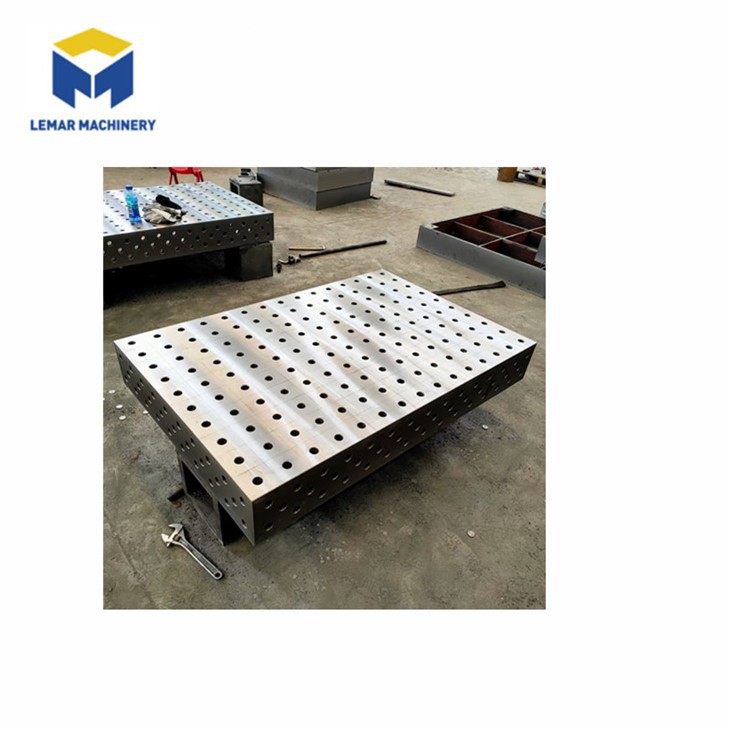

| Universal welding platform and multi-hole tooling platform |
Universal welding platforms and multi-hole tooling platforms are high-precision, modular tooling equipment specially designed for the welding industry.
There are generally five working surfaces, all of which are processed with regular holes and engraved with mesh lines. The side can be used for expansion or auxiliary positioning.
Universal welding platforms and multi-hole tooling platforms are high-precision, modular tooling equipment specially designed for the welding industry. The CNC gantry milling machine is adopted for processing, which can effectively ensure that the dimensions of the welded products, the position accuracy of the holes, the flatness and the perpendicularity of each surface can all be well controlled.
The center tolerance of the positioning holes can be guaranteed to be within 0.05mm.
Product specification
Product grade
Universal welding platform and multi-hole tooling platform is not all uniform. There are several grades to distinguish it, and these relevant grades are clearly defined. These standards are not set by any single manufacturer itself; they are a uniform standard for the machinery industry.
Welding flatness: It is carried out in accordance with the standard metrological verification regulations and is classified into four grades: 0, 1, 2, and 3.
Other measuring tools: cast iron plates, basic plates, marking plates, testing plates, riveting and welding plates, cast iron plates, pyroworking plates, fitter plates, grinding plates, gua sha plates, sand pressing plates, laboratory plates, machine tool worktables (such as floor boring machine worktables), three-coordinate plates, mold pads, assembly plates (also known as assembly plates).
Or: cast iron platform, basic platform, marking platform, testing platform, riveting and welding platform, cast iron platform, firework platform, fitter platform, grinding platform, gua sha platform, sand pressing platform, laboratory workbench (e.g., vibration test workbench, abbreviated as vibration test bench), machine tool workbench (e.g. Floor boring machine worktable, three-coordinate platform, mold worktable, assembly platform (also known as assembly platform).
Product advantages
1. High precision: Processed by CNC gantry milling machines, it can effectively ensure that the dimensions of the welded products, the position accuracy of the holes, the flatness and the perpendicularity of each surface can all be well controlled. The center tolerance of the positioning holes can be guaranteed to be within 0.05mm.
2. High repeat positioning accuracy: Different products can be precisely modularly positioned on a single basic component. When changing product models or switching production, it can ensure product accuracy and conversion efficiency.
3. Extensible and expandable: By connecting platforms with each other, square boxes, Angle irons, etc., adjustable three-dimensional spatial dimensions can be formed, which can adapt to the changes in different product specifications and improve the utilization rate of tooling.
4. Fast clamping: By adjusting the tightness of the quick locking pin, the tooling can be disassembled and positioned within seconds. Various specifications of clamping parts and universal quick clamps can be quickly positioned at the clamping position, achieving rapid clamping.
