D28 Modular Fixture Table

Name: China OEM D28 Modular Fixture Table Manufacturers Suppliers Factory - Wholesale Service
Brand: Lemar
SKU: 319914930

Certification:CE Passed
Material:Q355 Steel
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Nitrided
Type:3D D28
Size:1000*2000mm
Brand:Lemar
Contact Us:Eva(+8615995269947/Email:evasummer@lemarmetal.com)

Send Inquiry

Forget one-off custom jigs that sit idle after a single job. This D28 modular fixture table is the heavy-duty workhorse for your welding bay. Built on the proven Φ28mm hole grid system, it lets you rearrange clamps, stops and supports however your part requires. Nitrided steel or cast iron build options hold their shape under heavy loads and welding heat. Link multiple tables together for extra-long fabrications, hook it up to robots or positioners, and cut your setup time right down. Built for structural steel, chassis, pipework and heavy equipment builds.

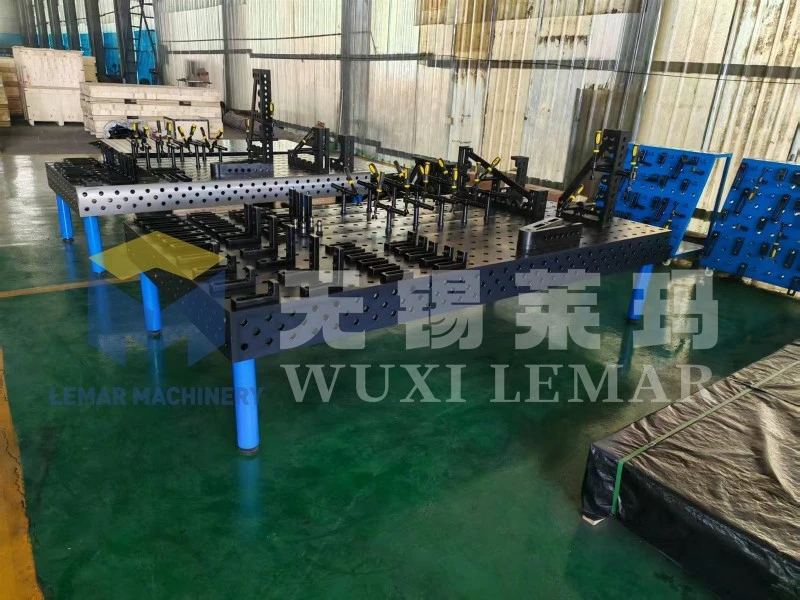

D28 3D Flexible Welding Fixture Table

- Hole diameter: Φ28 mm; H7 tolerance: 28.065–28.149 mm; compatible with D28 locating pins and M16 locking bolts/quick-release locking pins.
- Grid pattern: 100 mm × 100 mm square array, with a hole-center spacing tolerance of ±0.05 mm. For 3D welding tables (five-sided tables), holes are also provided on the four side faces: the top and bottom rows on the sides feature a 50 mm dense grid, while the middle section uses a 100 mm grid, supporting 3D (X/Y/Z-axis) clamping. 2D-style tables feature holes only on the top surface.
- Tabletop thickness: 25 mm
- Flatness: ≤0.1 mm/m

Load capacity per standard support leg: 700–1000 kg

Total static load capacity: 3–5 tons (standard version); up to 8–10 tons for customized, thickened, and reinforced versions

Suitable for heavy-duty frames, racks, construction machinery, and steel structures; distinct from the D16 welding table (designed for light-duty, precision, small-scale components) and the D22 series (intended for medium-duty applications)

Lemar welding table to UK

Lemar welding table to AU

logistics packaging

Product Certification

Everything You Need to Know

Can this table work with welding positioner, robot track and pneumatic clamps?

Absolutely. The 5-sided hole layout allows direct mounting to positioner flanges, robot base plates, pneumatic and hydraulic clamping units. Widely used in automated robotic welding cells.

What is the HS code for D28 fixture table?

HS Code: 73269000

Do you supply the full fixture kit, or just the bare tabletop?

We offer flexible packages. You can order only the tabletop, table with support legs, or a complete package bundled with D28 locating pins, clamps, V-blocks, angle brackets and stacking blocks. Tell us your workpiece type, and we can recommend a matched accessory set.

Do you offer on-site installation guidance or video tutorials?

We supply detailed assembly, levelling and inspection videos and PDF guides free of charge. On-site technician support is available upon request at extra travel cost.
