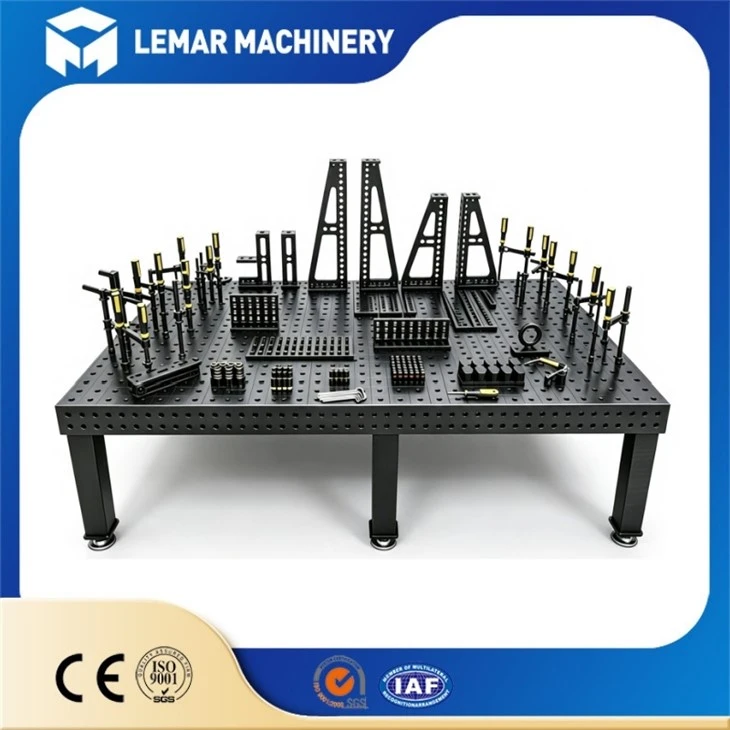

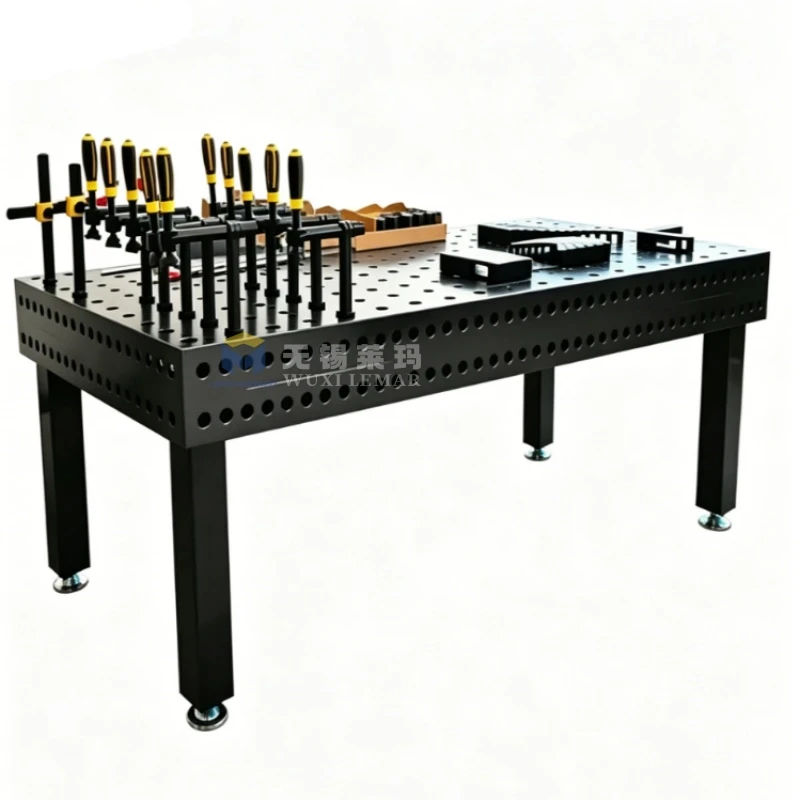

Flexible Welding Table D16
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
Product Description
Our flexible welding table D16 is designed for versatile small and medium metal fabrication projects. Built around the D16 modular hole grid with 50mm spacing, this work platform delivers precise multi point positioning for intricate assemblies and thin gauge metal workpieces. The whole plate undergoes complete stress relief to remove internal tension and keep stable flatness during repeated welding cycles. Operators can freely deploy positioning blocks, angle supports and quick clamps across the grid without custom jig machining. Thanks to its compact hole layout, this table handles complex small part geometries and allows fast switching between different prototype and batch orders. It brings high flexibility to job shops that frequently change workpiece styles and tight tolerance assembly tasks.
Specifications
Core Features and Advantages

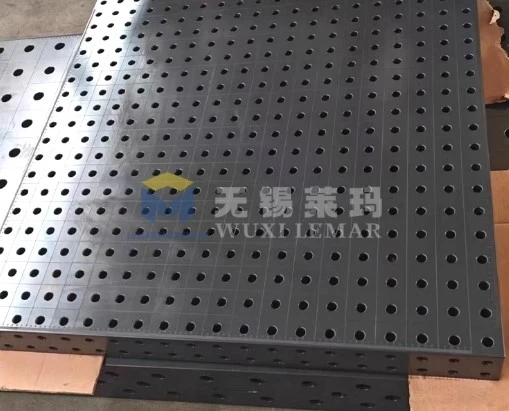

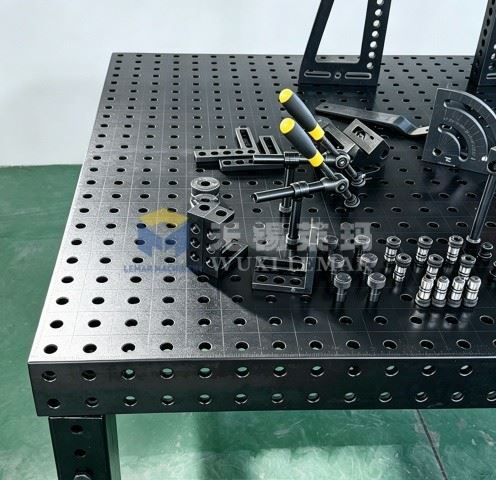

Dense 50mm Grid For Fine Positioning
The compact D16 hole grid provides dense mounting points. It supports precise clamping for small components and complex contours where large pitch holes cannot reach.

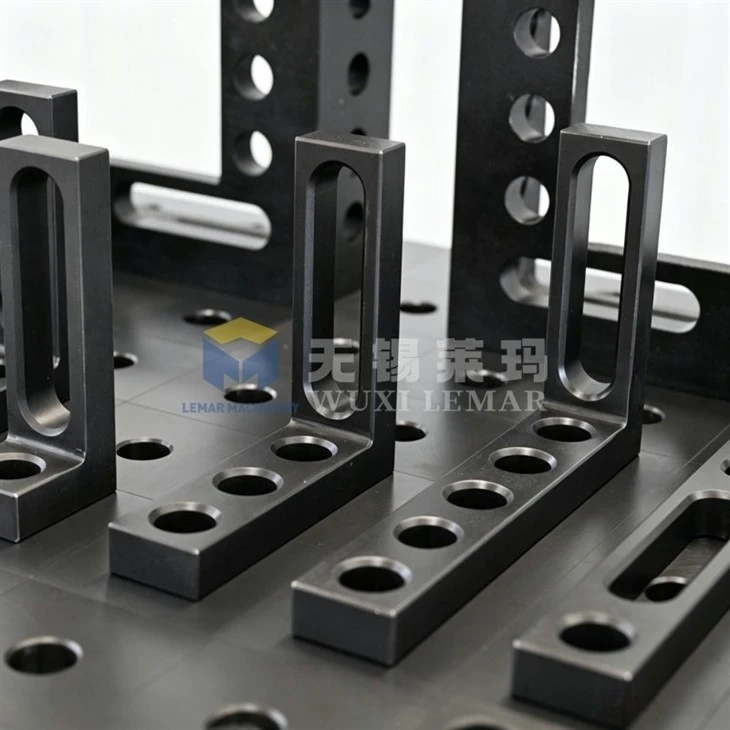

Quick Modular Fixture Redesign
All D16 accessories can be repositioned freely. Operators disassemble and rebuild fixture layouts rapidly when switching to new workpiece designs and cut jig preparation time.
Thermal Stability After Stress Relief
Stress relief processing eliminates internal material stress. The table surface resists deformation caused by welding heat and maintains consistent accuracy through long daily use.

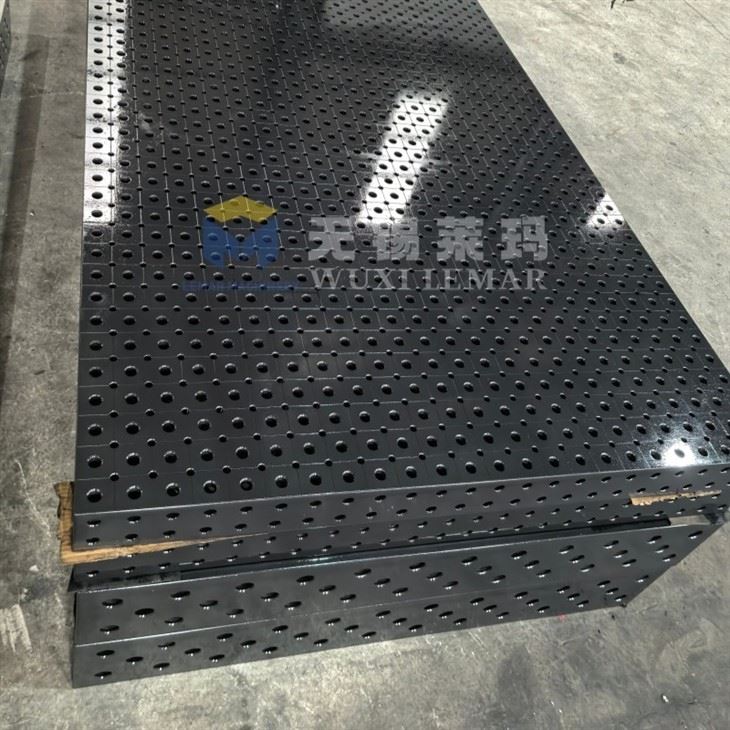

Export packaging
quality assurance
Customer photos
Welcome to our booth! The 3D welding table you see before you is a "precision benchmark" and "efficiency tool" in the metal processing industry. The tabletop is made of high-strength steel with an integrated design, ensuring flatness within 0.1 mm/meter. Combined with a standardized hole system design, fixtures can be installed and used immediately, eliminating the need for time-consuming custom tooling. Whether it's precise positioning of complex, irregularly shaped parts or high-volume welding production of components, it handles everything with ease – achieving positioning accuracy of ±0.05 mm and reducing tooling changeover time to within 20 minutes. This helps you increase product quality and production efficiency while lowering costs and rework rates. It's a truly powerful and reliable solution, and our customers who have used it all agree!
