Heavy Duty Steel Welding Table
Material:Q355 Steel
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Nitrided
Type:3D D28
Size:1000*2000mm
Brand:Lemar
Contact Us:Eva(+8615995269947/Email:evasummer@lemarmetal.com)
WUXI LEMAR
Product Overview

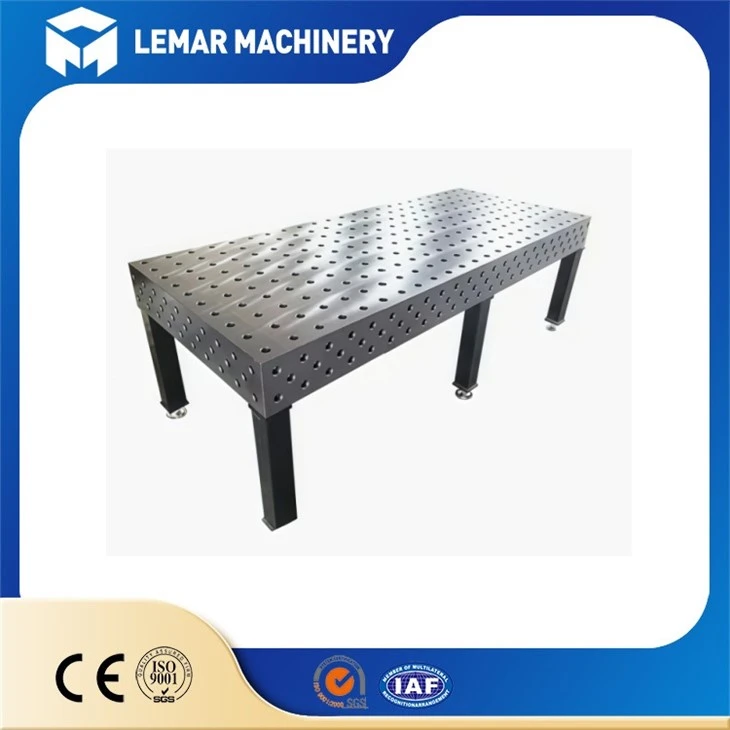

The **Heavy-Duty Steel Welding Table** is a modular, heavy-duty welding fixture platform designed for metal processing and heavy manufacturing. It features a Q345B high-strength alloy steel housing structure, undergoing artificial aging stress relief, CNC milling, and gas nitriding hardening. Equipped with a D16/D28 standard grid positioning hole system, it allows for the rapid assembly of various positioning pins, stops, and fixture components.
This steel welding table balances heavy load capacity, positioning accuracy, and flexible tooling expansion. It is suitable for single-piece, small-batch, and intermittent robotic welding operations, and supports multiple units to create a large working surface. It is widely used in welding and assembly operations for construction machinery, vehicle frames, sheet metal, and rail transportation equipment. Compared to cast iron welding platforms, it is lighter, has a shorter delivery cycle, and offers significant overall cost advantages, making it the preferred welding fixture solution for many metal processing plants worldwide.
Pore parameters
| Item | D16 (Light‑Duty Precision Steel Welding Table) | D28 (Heavy‑Duty Steel Welding Table, Mainstream Model) |
|---|---|---|
| Bore Size | Φ16 mm H7 | Φ28 mm H7 |
| Grid Pitch | 50×50 mm | 100×100 mm |
| Positioning Accuracy | ±0.05 mm | ±0.05 mm |
| Flatness Tolerance | ≤0.1 mm/1000mm | ≤0.1 mm/1000mm, Grade 0 up to ≤0.05 mm/1000mm |
| Uniform Load Capacity per Unit Area | 1‑2 t/㎡ | 2.5‑5 t/㎡ |
| Typical Applications | Sheet metal, small‑size parts, medical equipment, small frames | Engineering machinery, vehicle frames, rail transit, robotic welding, heavy‑duty workpieces |
Common tabletop sizes: 1000×800, 1200×2000, 1500×3000, 2000×4000 mm; multiple units can be joined together to expand the work surface.
Main features
✅ High Rigidity & Heavy-Duty Capacity: Welded box-type structure designed to withstand the weight of heavy workpieces and the impact of hammering or grinding.
✅ Modular Tooling: Standardized hole patterns accommodate clamps, positioning blocks, L-shaped stops, and quick-locking pins; eliminates the need for custom tooling and enables rapid production changeovers. 3D hole configuration allows for vertical and multi-angle workpiece clamping.
✅ Weld Spatter & Wear Resistance: Nitrided surface prevents weld spatter adhesion, making cleanup easy.
✅ Scalable & Expandable: Multiple platforms can be joined together to accommodate large steel structures.

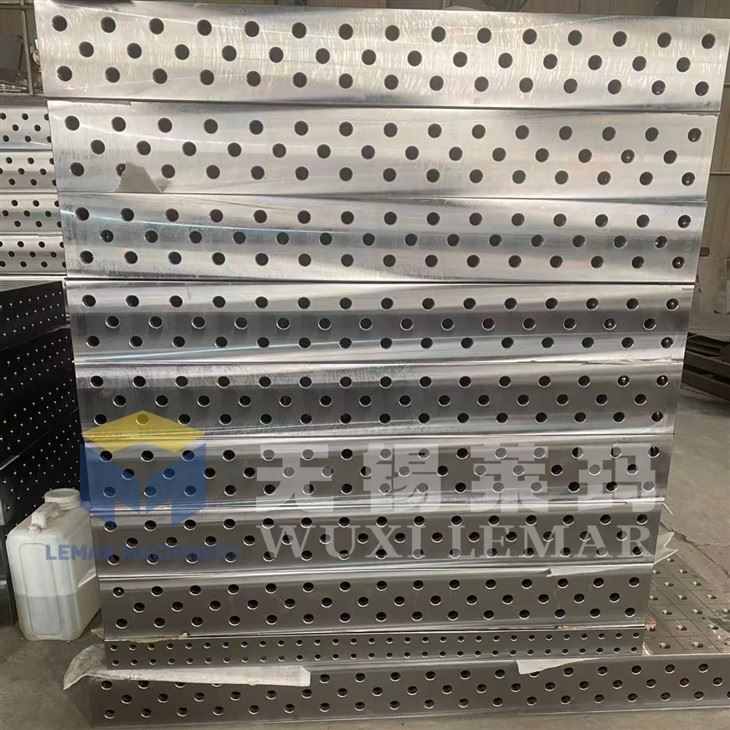

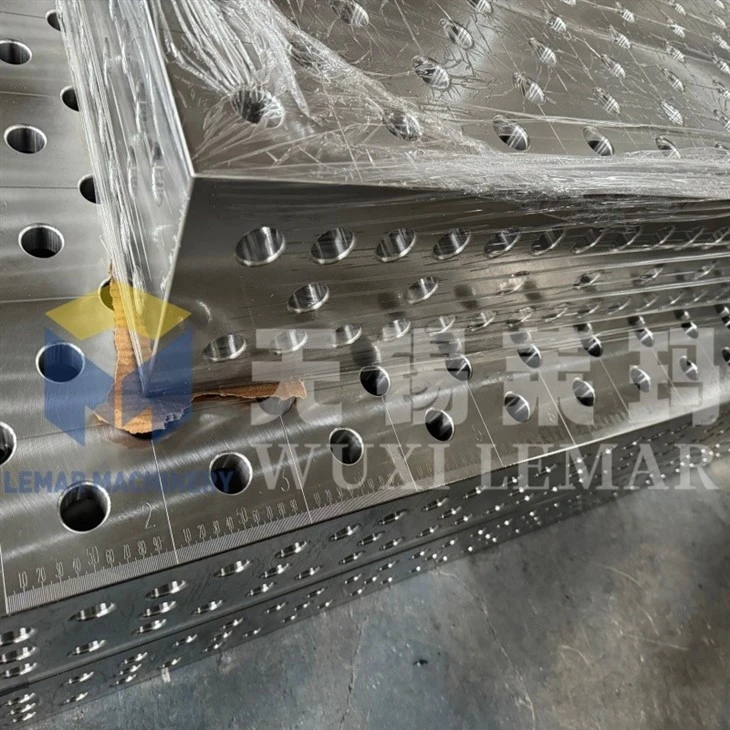

Shipping & Packaging
Installation Steps
1) The floor must be high-strength concrete; soft flooring can lead to subsequent settlement and deformation.
2) Tighten bolts to the specified torque; do not overtighten using excessive force, as this can warp the table base.
3) Use a high-precision level to level the table in both directions, then lock the leveling foot nuts.
4) Install the grounding busbar and connect the welding return ground cable.
5) Re-verify flatness and hole-spacing accuracy using a laser level or straightedge.
> Important: Allow the Heavy-Duty Steel Welding Table to sit undisturbed for 24 hours after installation, then re-check flatness. Vibrations during transport may cause stress release in the tabletop, so accuracy should be confirmed again after this settling period.
Real‑World Customer Feedback

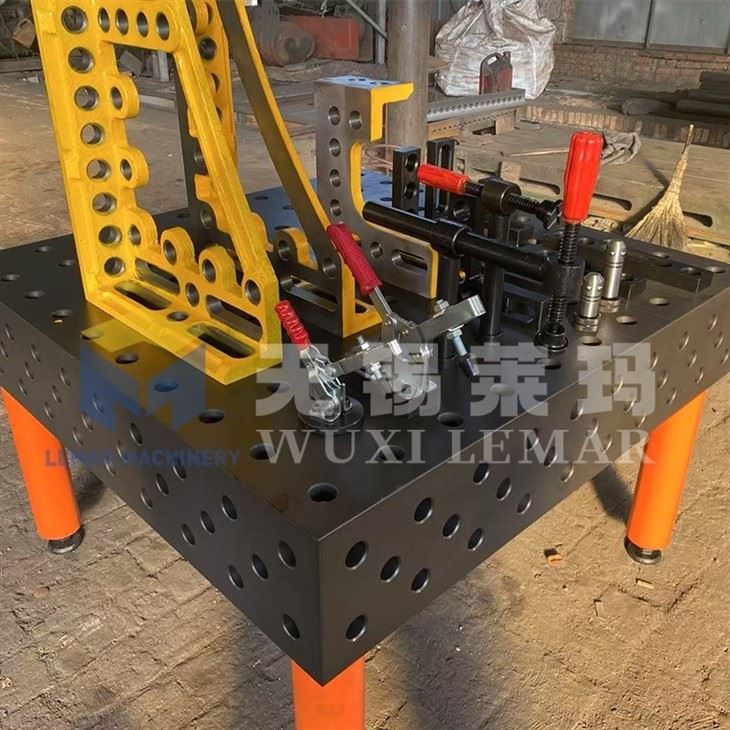

This real‑world workshop photo comes from one of our US customers using our Heavy‑Duty Steel Welding Table. Fully equipped with a complete range of modular fixtures and put through daily heavy‑duty welding‑shop operations, this table demonstrates excellent rigidity and reliable hole‑system compatibility. Highly satisfied with its real‑life performance, the customer plans to repurchase another welding table alongside additional tooling accessories. Repeat‑buy intent from end‑users stands as authentic proof of our table's durability and stable quality for metal‑fabrication work.
Contact us
Our Heavy‑Duty Steel Welding Table covers D16 and D28 modular series to meet diverse metal‑fabrication demands. Custom sizes, nitrided surface and matched accessory kits are available.
Please submit your inquiry with your technical specifications, we will reply with professional proposal and price promptly.
📞 Contact our sales team now
📧 Email: amywang@lemarmetal.com
📞 Phone: +86 180 0619 3916
*All Lemar products come with a 12-month warranty against manufacturing defects. Bulk and OEM orders are welcome.*
