Nitrided Welding Table
Material:Q355 Steel
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Nitrided
Type:3D D28
Size:1000*2000mm
Brand:Lemar
Contact Us:Eva(+8615995269947/Email:evasummer@lemarmetal.com)
WUXI LEMAR
Product Overview
Our nitrided welding table is a precision 3D modular welding fixture table treated with advanced plasma nitriding. Unlike ordinary coated welding tables, nitrogen atoms penetrate into the steel surface to form an integrated hard nitride layer with no risk of coating peeling. It delivers great wear resistance, low weld spatter adhesion, reliable rust protection and ultra-stable flatness. Compatible with D16, D22, D28 standard hole systems and global modular clamping accessories, it works perfectly for robotic welding lines, batch fabrication and high-precision assembly workshops, maintaining consistent positioning accuracy and extending the service life of your welding jigs.
Compared to ordinary welding tables
| Item | Untreated / Painted Welding Table | Nitrided Welding Table |
|---|---|---|
| Surface hardness | Low | HV550–900+ |
| Spatter sticking | Easy to stick, hard clean | Low adhesion, easy clean |
| Anti-rust | Poor, need oil maintenance | Good |
| Wear on holes | Holes wear fast after frequent clamping | Hole wear slow, keep tolerance |
| Service life | Shorter | 3~10x longer |
| Risk | Coating flake off | Thin layer, vulnerable to heavy impact |
| Price | Lower | Premium |

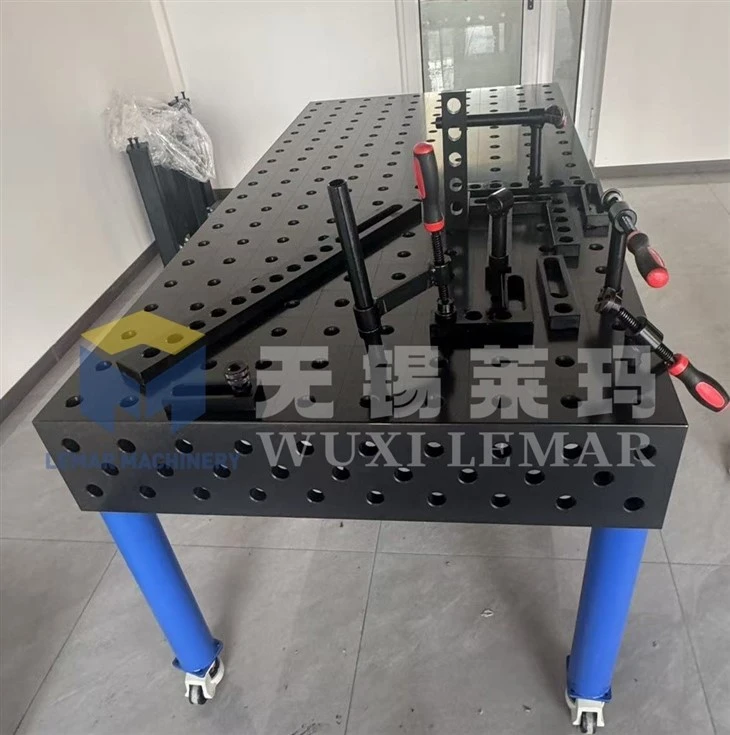

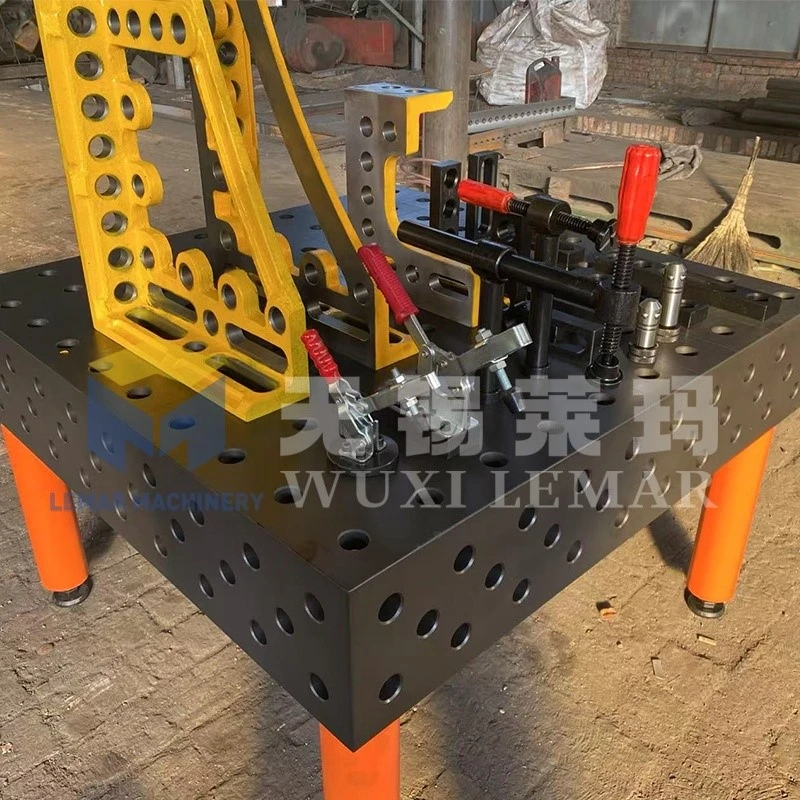

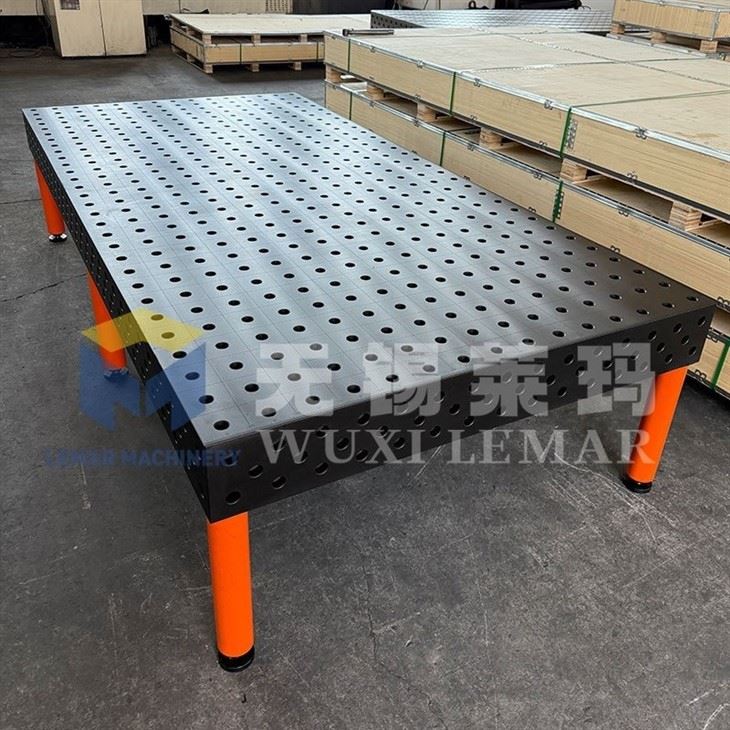

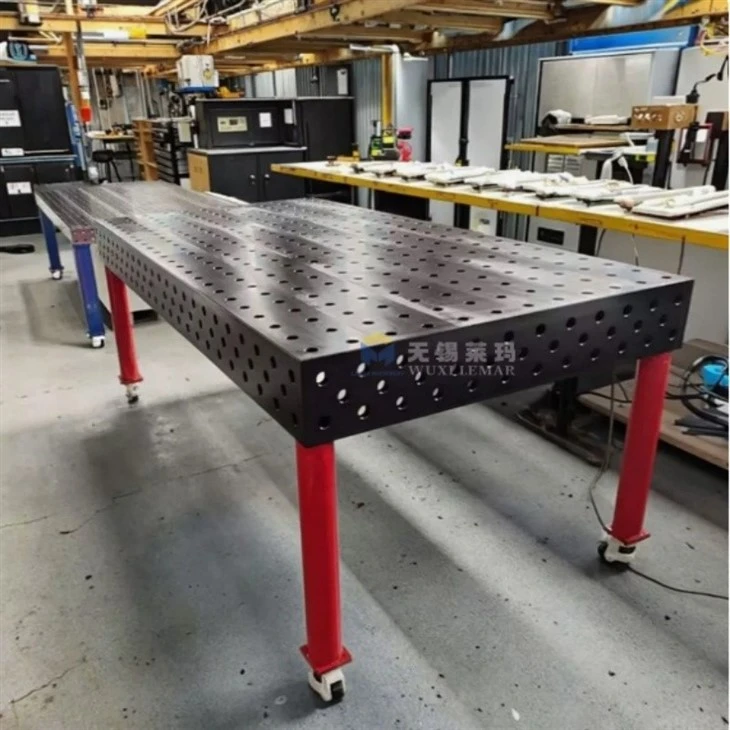

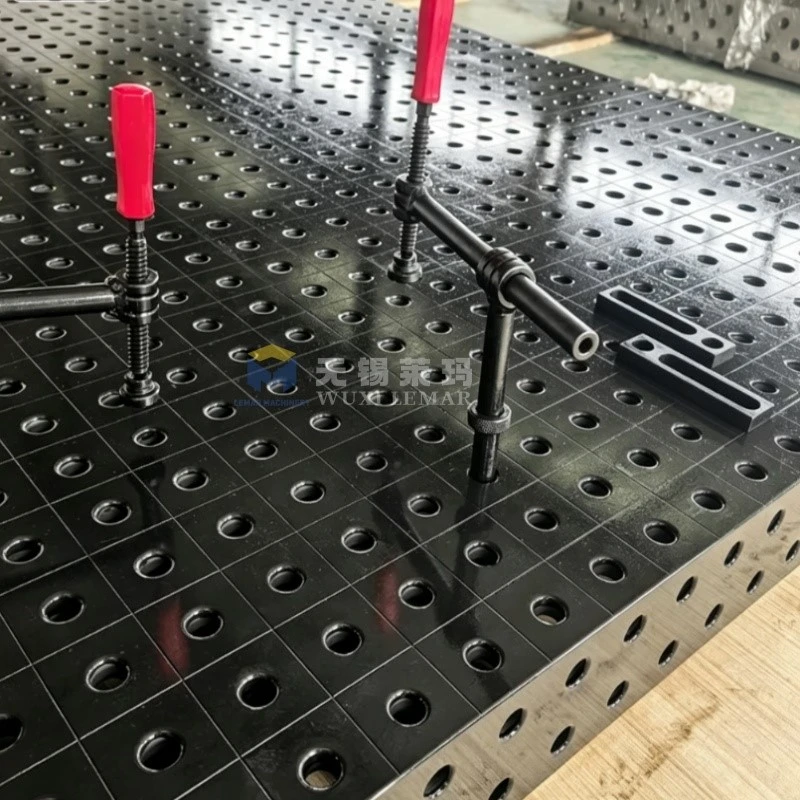

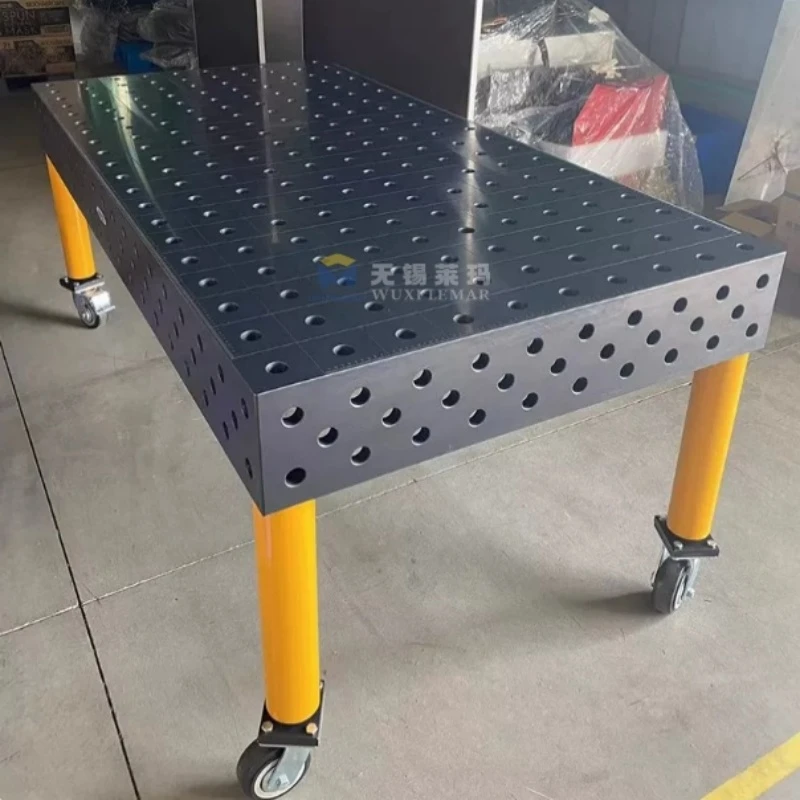

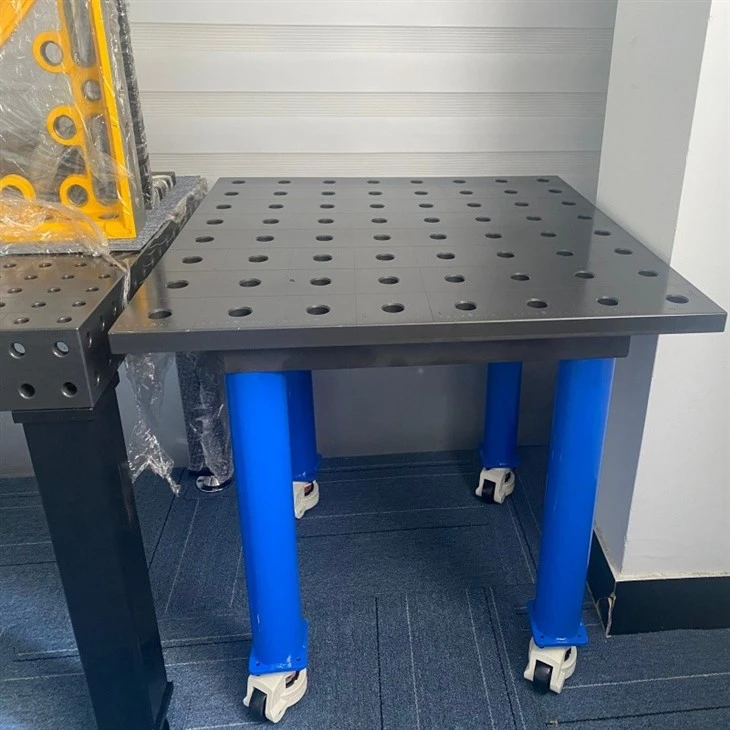

Actual product photos
Our Products
Wuxi Lemar is a welding equipment manufacturer with 20 years of rich experience. We have extensive export experience and mature production processes, providing every customer with the highest quality Nitrided Welding Table.
Core advantages
1. Wear resistance is wear-resistant, and the hole wall is not easily worn
Repeatedly inserting and removing locating pins, locking pins, and clamps, the holes are not easily worn out or out of roundness, and the positioning accuracy is maintained for a long time. It is suitable for batch tooling and robot automation welding lines
2. Low weld splatter adhesion: Welding slag splashes are not easy to stick
The adhesion force of secondary welding and argon welding splashes is significantly reduced, and slag tapping and cleaning are done quickly. There is no need to frequently polish the table surface, reducing the damage to the flatness caused by polishing. Bernd Sieg
3. Corrosion&rust resistance
The dense nitride layer isolates water vapor, making it less prone to rusting in humid workshops and coastal salt spray environments. There is no need to apply anti rust oil every day, making it suitable for new energy and clean welding conditions
5. Good dimensional stability
Low temperature process, minimal heat treatment deformation, long-term stable flatness after aging and nitriding, Nitrided Welding Table is the preferred configuration for high-precision tooling and robot welding
Applicable scenarios
✅ Robot automated welding workstation, batch tooling switching, frequent disassembly and assembly of fixtures
✅ Automobile frame, construction machinery, new energy battery frame, sheet metal precision assembly and welding
✅ Wet workshop, export to overseas high humidity customers, high cleanliness requirements, workstations that do not want oil stains
❌ Rough lifting and continuous strong impact conditions for oversized and heavy forgings (priority should be given to thick base cast iron welding tables, and do not rely solely on nitriding)
Product Certification
FAQ
Everything You Need to Know
What documents can you provide for export?
We can offer material mill certificates, nitriding inspection reports, flatness test records, CE documents, CO, Form A, Form E and other preferential certificates as requested.
What is your lead time?
Lead time depends on size, material, flatness requirement and order quantity. Standard nitrided welding tables normally take 15–25 working days after deposit confirmation.
Can I order nitrided clamps and locking pins together?
Sure. We supply matching nitrided rapid locking pins, angle brackets, support blocks and stops. You can choose a full nitrided set or mix nitrided table with standard black oxide accessories to control cost.
How long can the nitride layer last?
Service life depends on working conditions. For normal robotic welding with proper maintenance, the nitride welding table can stay functional for years. Heavy impact, grinding, concentrated pounding or continuous high temperature above 400℃ will damage the nitride layer prematurely.
Contact us
Nitrided welding tables deliver reliable precision, wear resistance and long-term stability for your welding workshop.
If you have questions about sizes, flatness grades, material options or custom splicing solutions, feel free to send us your inquiry.
Our team is ready to provide a tailored quotation and technical support for your project.
📞 Contact our sales team now
📧 Email: amywang@lemarmetal.com
📞 Phone: +86 180 0619 3916
*All Lemar products come with a 12-month warranty against manufacturing defects. Bulk and OEM orders are welcome.*
