Heavy Duty Welding Fixture Table
Material:Q355 Steel
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Nitrided
Type:3D D28
Size:1000*2000mm
Brand:Lemar
Contact Us:Eva(+8615995269947/Email:evasummer@lemarmetal.com)
Product Overview
This heavy duty welding fixture table is designed for high load fixturing and demanding metal welding tasks. It is engineered as a dedicated reference base for secure workpiece clamping and precise alignment during long cycle production. The uniform grid hole layout supports fast fixture arrangement and stable locking of bulky and heavy workpieces. It minimizes shifting and misalignment caused by strong clamping pressure and welding heat fluctuation. It is a robust workstation built for job shops and production plants that process heavy metal components on a regular basis.
Phone:+8615995269947
Email:evasummer@lemarmetal.com
Key technical parameters
|
|
|
|
Core advantages
Reinforced Anti Deformation Frame
The thickened tabletop and reinforced supporting frame resist bending under heavy workpieces and sustained clamping force. Structural stability is maintained during continuous production.
Secure Fixture Locking Grid

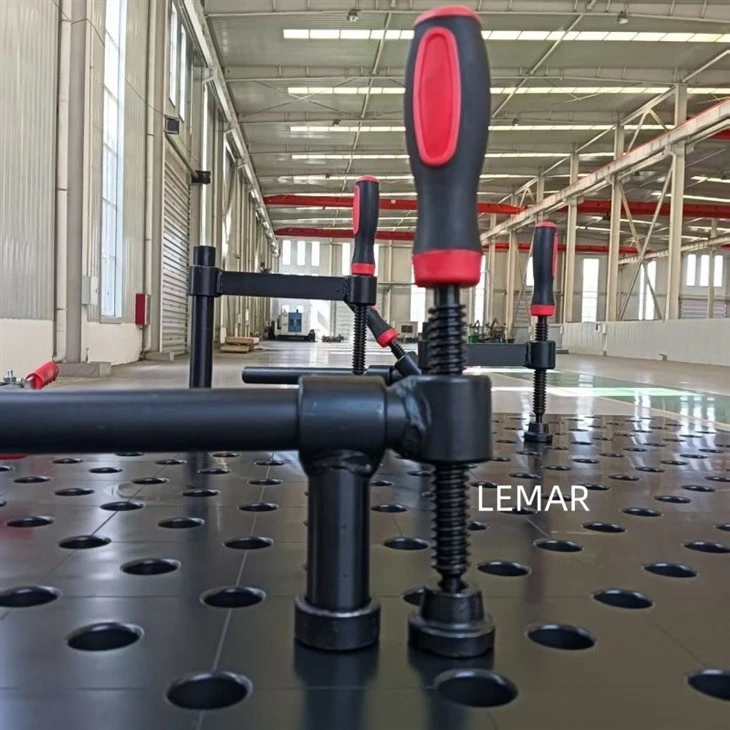

The standard D28 hole grid delivers solid anchor points for clamps, stops and supports. Fixtures stay locked firmly without loosening during welding operations.
Heat Resistant Hardened Table Surface
The nitrided surface withstands welding spatter, thermal impact and repeated friction. It avoids surface indentation and keeps positioning accuracy for long term use.
Adjustable Support Leg System
Equipped with height adjustable support legs. Operators can calibrate the table level easily on uneven workshop floors to guarantee consistent working precision.
High Compatibility With Fixture Kits

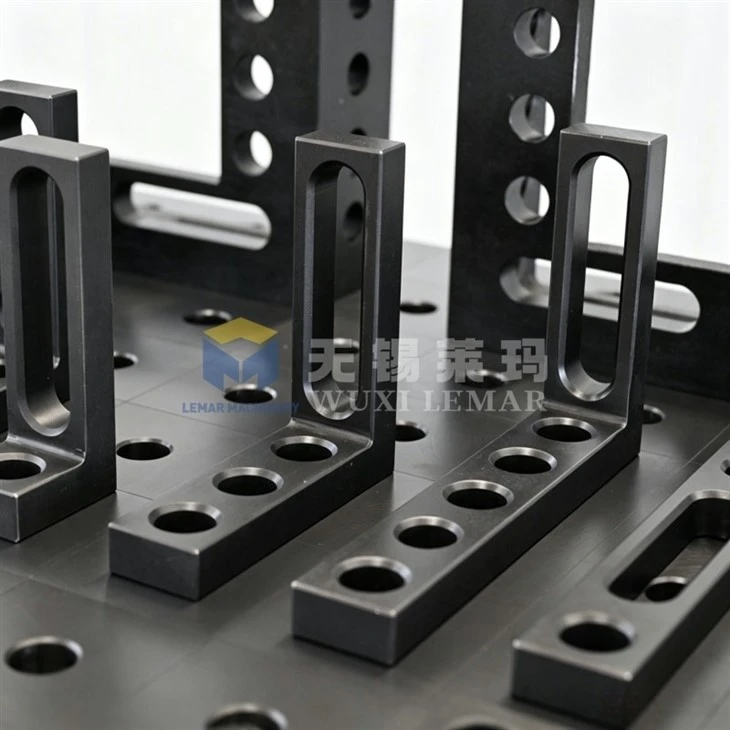

It works seamlessly with standard D28 series fixturing accessories. You can assemble custom clamping layouts for different heavy metal parts quickly.
Simplified Inspection and Quality Control
The flat reference surface helps inspectors check squareness and dimensional accuracy conveniently. It effectively lowers the rejection rate of finished heavy weldments.
Product Applications
This heavy duty welding fixture table serves a wide scope of heavy metal fabrication work. Typical scenarios include truck frame fabrication, agricultural machinery component welding, lifting equipment subassembly, thick steel plate welding, construction bracket production and hydraulic frame assembly. It fits dedicated production lines as well as mixed heavy fabrication job stations.
Shipping & Packaging
FAQ
Q1:What is the difference between this heavy duty fixture table and a standard welding table?
This model adopts reinforced frame design to bear far heavier distributed loads. It prioritizes rigidity and anti deflection performance for bulky workpieces rather than general light fabrication jobs.
Q2:Can I customize the hole spacing or add extra mounting holes on the tabletop?
We keep the D28 grid as standard for universal fixture compatibility. Custom hole layouts can be arranged if you submit detailed engineering drawings in advance.
Q3:How long does the nitrided layer stay effective under heavy welding conditions?
When slag is cleaned routinely, the nitrided layer retains its hardness and wear resistance for years. Heavy grinding directly on the surface will shorten its service life.

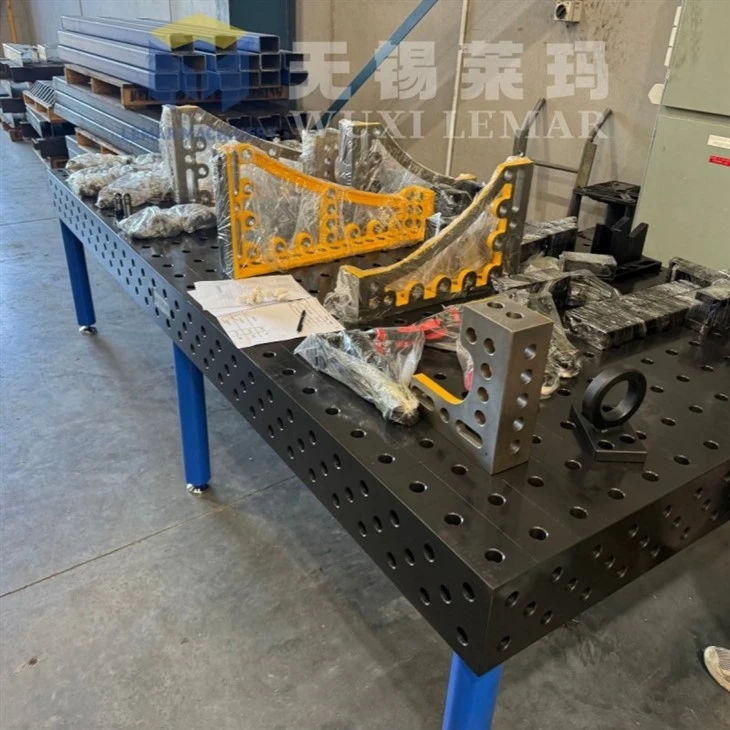

Q4:Do you offer a full set of matching D28 clamping fixtures together with the table?
Yes. We have complete supporting fixture kits including clamps, angle stops and support blocks. You can order them as a combined package or separately.
Q5:What should I do if the table level drifts after long time heavy use?
You can readjust the adjustable support legs anytime. We also provide flatness inspection guidance to help you check and restore the working level.
Q6:Is this table suitable for outdoor workshop fabrication under humid conditions?
The nitrided layer offers decent anti corrosion performance. We still suggest regular anti rust maintenance and covered storage to slow down oxidation in humid environments.
Welcome to contact us
Share your heavy workpiece size, fixture configuration and workshop layout requirements with our team. We will provide professional technical advice and competitive quotation for your heavy duty welding fixture table project. Send your inquiry now.
📧 Email: evasummer@lemarmetal.com
📞 Phone:+8615995269947
