Welding Table For Precision Assembly Work
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
product introduction
Welding Table For Precision Assembly Work
D16 welding Table
Tabletop hole diameter: φ28mm
Standard hole spacing: 100mm × 100mm center distance
Hole spacing accuracy: ±0.02mm
Heat treatment: Artificial aging + natural aging to eliminate internal stress
Tabletop thickness: 10mm / 12mm / 15mm (optional)
Flatness accuracy: 0.03mm/m ~ 0.05mm/m
Surface treatment: Overall nitriding treatment
Surface hardness: HRC 50–58
Surface roughness: Ra ≤ 1.6μm
Single tabletop load capacity: 4~6 tons/㎡
Positioning pin load capacity: Axial clamping force approximately 5 tons, shear force approximately 25 tons
Assembly method: Multiple tables can be spliced indefinitely
Support structure: Thickened square tube / cast iron reinforcing rib structure
d28 welding Table
Tabletop hole diameter: φ28mm
Standard hole spacing: 100mm × 100mm center distance
Hole spacing accuracy: ±0.02mm
Heat treatment: Artificial aging + natural aging to eliminate internal stress
Tabletop thickness: 10mm / 12mm / 15mm (optional)
Flatness accuracy: 0.03mm/m ~ 0.05mm/m
Surface treatment: Overall nitriding treatment
Surface hardness: HRC 50–58
Surface roughness: Ra ≤ 1.6μm
Single tabletop load capacity: 4~6 tons/㎡
Positioning pin load capacity: Axial clamping force approximately 5 tons, shear force approximately 25 tons
Assembly method: Multiple tables can be spliced indefinitely
Support structure: Thickened square tube / cast iron reinforcing rib structure

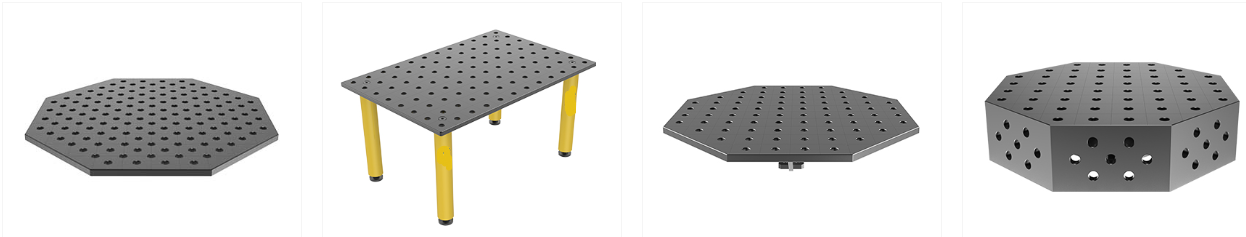

We offer other types of welding tables-such as octagonal welding tables, height-adjustable welding tables, and more. If you require a different type of welding table, please contact us to let us know your specific requirements.
We also offer other types of welding machines. If you need them, please contact me.
Fixtures & Accessories
Clamping accessories for Welding Table For Precision Assembly Work
Choose the plan that suits you best.
Clamping Fixtures
Spiral Clamp / Pressure Clamp
F-Clamp / Insert Clamp
C-Clamp / Heavy Duty C-Clamp
T-Slot Clamp & Pressure Plate
Positioning Tools
Right Angle Bracket / 90° Locating Square
Flat Locating Block / Stop Block
V-Block (for pipe & round bar)
Adjustable Angle Locator
Fastening & Connecting Parts
Quick Locking Pin (D28/D16)
Support Block / Spacer Block
Height Adjustable Support
Table Connecting Plat
Auxiliary Accessories
Magnetic Welding Holder
Anti-splash Cover / Protective Sleeve
Handle & Leveling Feet

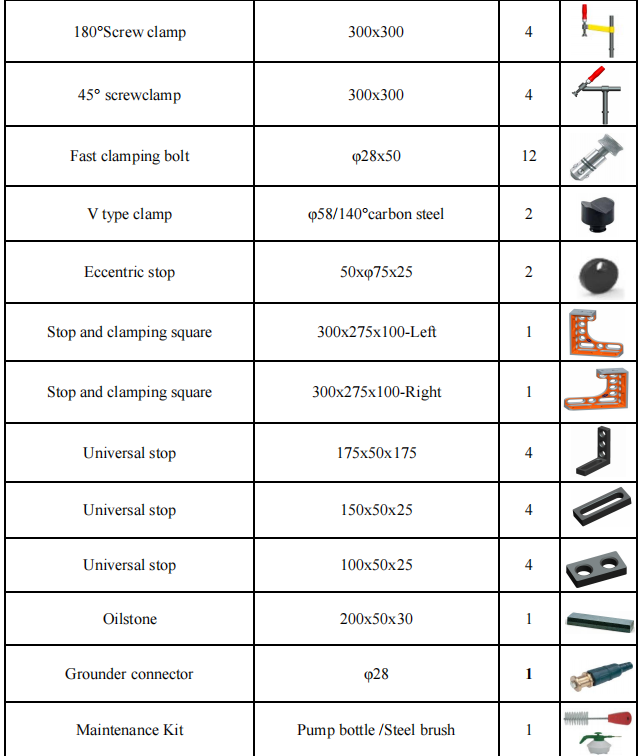

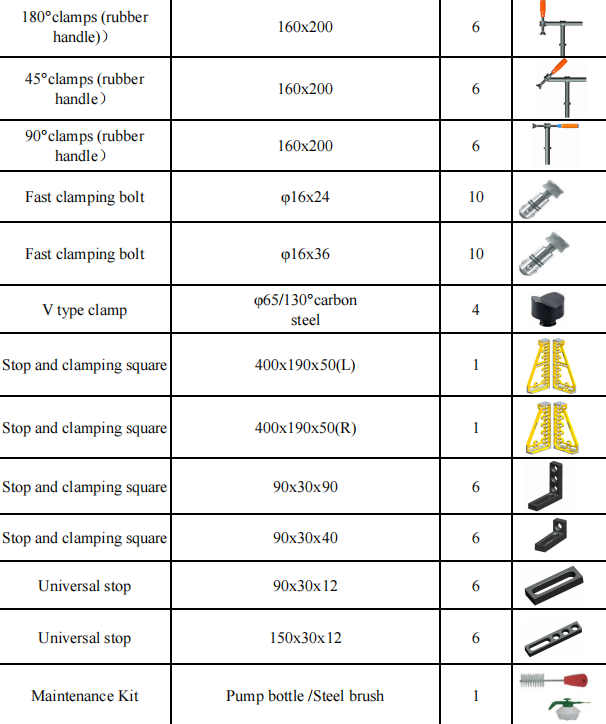

Accessory set
We offer multiple sets of accessory kits. SET1 is the basic version. If you need other accessory kits, please contact me. We will tailor a suitable set for you based on your actual needs.
Structure and Specifications
|
NO. |
Product Type |
Size(mm) |
Load-bearing capacity |
|
1 |
3D Steel /Cast iron Welding table |
1000x1000 |
2–5 tons/m² |
|
2 |
1000x1200 |
2–5 tons/m² | |
|
3 |
1000x1500 |
2–5 tons/m² | |
|
4 |
1000x2000 |
2–5 tons/m² | |
|
5 |
1500x1500 |
2–5 tons/m² | |
|
6 |
2400x1200 |
2–5 tons/m² | |
|
7 |
3000x1500 |
2–5 tons/m² | |
|
8 |
4000x2000 |
2–5 tons/m² | |
|
9 |
2D Steel / Cast iron Welding Table |
1000×1000 |
2–5 tons/m² |
|
10 |
1200×1200 |
2–5 tons/m² | |
|
11 |
1500×1500 |
2–5 tons/m² | |
|
12 |
2000×1000 |
2–5 tons/m² |
Purchase Tips: The above sizes are our standard sizes. In addition, we offer customization services. If you need other sizes, please contact me.
Product video
Core advantages
1.Function of welding station
- Ultimate Precision: Micron-level reference ensures aligned assembly, neat welds, and consistent dimensions.
- Extremely Low Deformation: High rigidity and stress relief minimize welding thermal deformation.
- Flexibility and Versatility: One fixture adapts to multiple product types and small batches, replacing numerous specialized tooling options.
- Efficient Changeover: Tooling changeover completed in 15 minutes, reducing changeover time by 70%+.
- Durable and Long-lasting: Nitrided/quenched surface, wear-resistant and slag-resistant, ensuring stable precision for 10+ years.
- Safe and Environmentally Friendly: Fireproof, electrically grounded, easy to clean slag, and low radiation.
2.Core differences from ordinary workbenches
- Higher precision, can be used as an assembly reference platform
- Hole-based positioning, high repeatability
- Better resistance to deformation and vibration
- Modular fixtures for quick changeover
- Wear-resistant and high-temperature resistant surface
- Suitable for welding, assembly, inspection, and scribing
