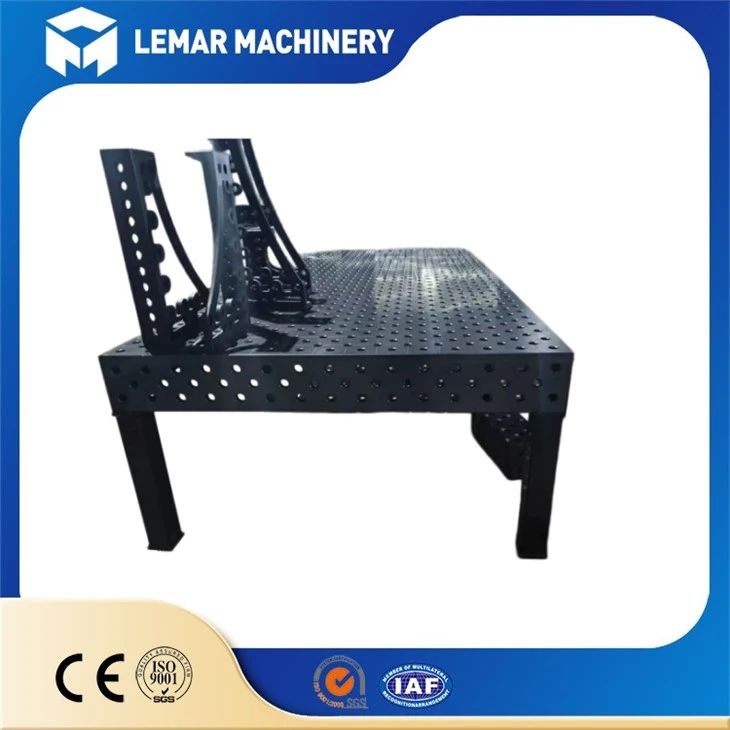

Professional Welding Table
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
product introduction

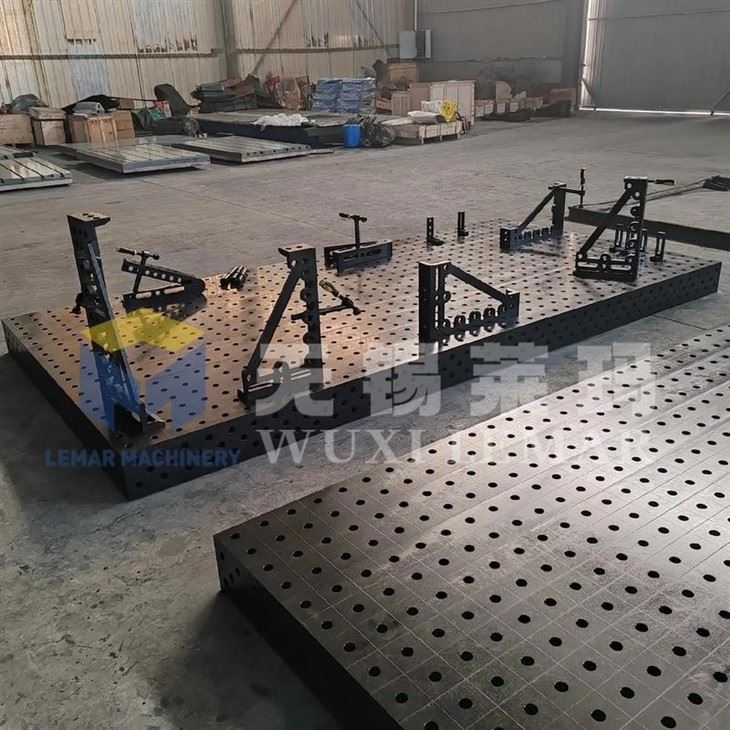

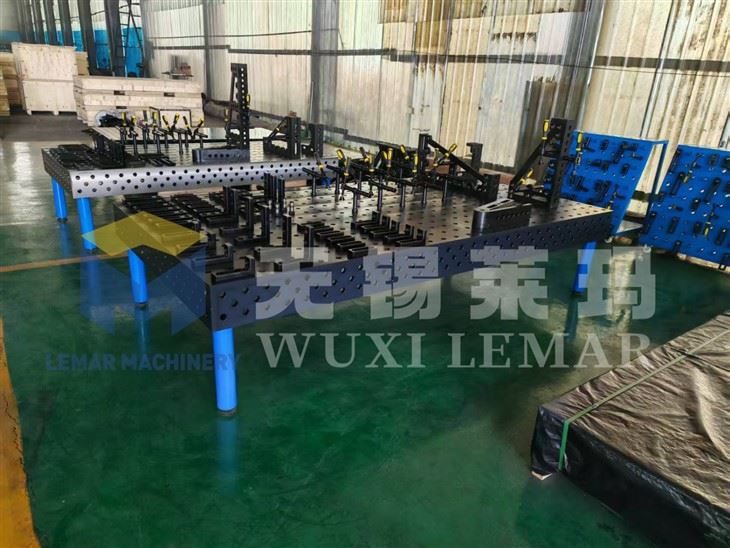

Professional Welding Table is a high-precision modular work platform specially built for industrial welding, assembly and inspection. Adopting high-strength steel or cast iron with strict flatness control and standard D16/D28 hole system, it features excellent heat resistance, anti-deformation performance and flexible clamping. Matched with various supporting fixtures, it enables accurate positioning and repeated processing, widely applied in automotive, machinery, steel structure and robotic welding industries
D16 welding Table
Center distance (grid) of the hole: 50mm × 50mm, tolerance: ±0.05mm
Grinding lines on the tabletop: 50mm × 50mm standard grid lines, with millimeter scale
Adaptive positioning pin: Φ16mm h7 grade precision pin
Flatness: ≤ 0.1mm/m (0.1/1000mm)
Verticality (3D platform): 0.05mm/200mm
Positioning accuracy of holes: ±0.05mm
Surface roughness: Ra3.2μm
Surface hardness: After nitriding treatment, HV550 / HRC45
d28 welding Table
Diameter (D): Φ28mm, Tolerance: Φ28.065–Φ28.149mm (Grade d10)
Center distance of holes (grid): 100mm × 100mm, Tolerance: ±0.05mm
Surface marking lines: 100mm × 100mm standard grid lines, with millimeter scale
Adaptive positioning pins: Φ28mm h7 grade heavy-duty precision pins
Flatness: ≤ 0.1mm/m (0.1/1000mm)
Verticality (3D platform): 0.1mm/200mm
Positioning accuracy of holes: ±0.05mm
Surface roughness: Ra3.2μm
Surface hardness: After nitriding treatment, HRC42–52
We offer other types of Professional Welding Table-such as octagonal welding tables, height-adjustable welding tables, and more. If you require a different type of welding table, please contact us to let us know your specific requirements.
We also offer other types of welding machines. If you need them, please contact me.
Fixtures & Accessories
Clamping accessories for the Thick Plate Steel Industrial Welding Table
Choose the plan that suits you best.
Clamping Fixtures
Spiral Clamp / Pressure Clamp
F-Clamp / Insert Clamp
C-Clamp / Heavy Duty C-Clamp
T-Slot Clamp & Pressure Plate
Positioning Tools
Right Angle Bracket / 90° Locating Square
Flat Locating Block / Stop Block
V-Block (for pipe & round bar)
Adjustable Angle Locator
Fastening & Connecting Parts
Quick Locking Pin (D28/D16)
Support Block / Spacer Block
Height Adjustable Support
Table Connecting Plat
Auxiliary Accessories
Magnetic Welding Holder
Anti-splash Cover / Protective Sleeve
Handle & Leveling Feet
Accessory set
We offer multiple sets of accessory kits. SET1 is the basic version. If you need other accessory kits, please contact me. We will tailor a suitable set for you based on your actual needs.
Structure and Specifications
|
NO. |
Product Type |
Size(mm) |
Fixture compatibility |
|
1 |
3D Steel /Cast iron Welding table |
1000x1000 |
Fully compatible with global standards |
|
2 |
1000x1200 |
Fully compatible with global standards | |
|
3 |
1000x1500 |
Fully compatible with global standards | |
|
4 |
1000x2000 |
Fully compatible with global standards | |
|
5 |
1500x1500 |
Fully compatible with global standards | |
|
6 |
2400x1200 |
Fully compatible with global standards | |
|
7 |
3000x1500 |
Fully compatible with global standards | |
|
8 |
4000x2000 |
Fully compatible with global standards | |
|
9 |
2D Steel / Cast iron Welding Table |
1000×1000 |
Fully compatible with global standards |
|
10 |
1200×1200 |
Fully compatible with global standards | |
|
11 |
1500×1500 |
Fully compatible with global standards | |
|
12 |
2000×1000 |
Fully compatible with global standards |
Purchase Tips: The above sizes are our standard sizes. In addition, we offer customization services. If you need other sizes, please contact me.
Product video
Installation and Maintenance
1.Installation and Assembly
- This is a DIY welding assembly kit, shipped without finished products.
- Included: countertop, frame, leg material, reinforcement ribs, positioning pieces, screw accessories.
- Assembly difficulty: Medium. With a basic welding machine, it can be completed.
- Assembly time: Single person, approximately 3–6 hours.
- Optional choices: Fixed legs / With brake wheels / Adjustable structure.
2.Service life and maintenance
- Under normal industrial use, the lifespan can reach 8 to 15 years.
- After the countertop is worn, it can be re-polished and repaired by welding.
- Regular cleaning of welding slag and light oil application can extend the rust prevention lifespan.
- There are no easily damaged parts, and the maintenance cost in the later stage is extremely low.
Packaging & Transportation
Certificate of Product Quality
safety design
Edge and corner grinding to remove burrs, avoiding scratches
The frame structure is stable and not prone to tipping over
The load-bearing safety factor is high, and it does not deform under heavy loadsThe Professional Welding Table has a high load-bearing safety factor and will not deform under heavy loads
