Welding Table With Drawers
Material:Q355 Steel
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Nitrided
Type:3D D28
Size:1000*2000mm
Brand:Lemar
Contact Us:Eva(+8615995269947/Email:evasummer@lemarmetal.com)
WUXI LEMAR
Product Overview

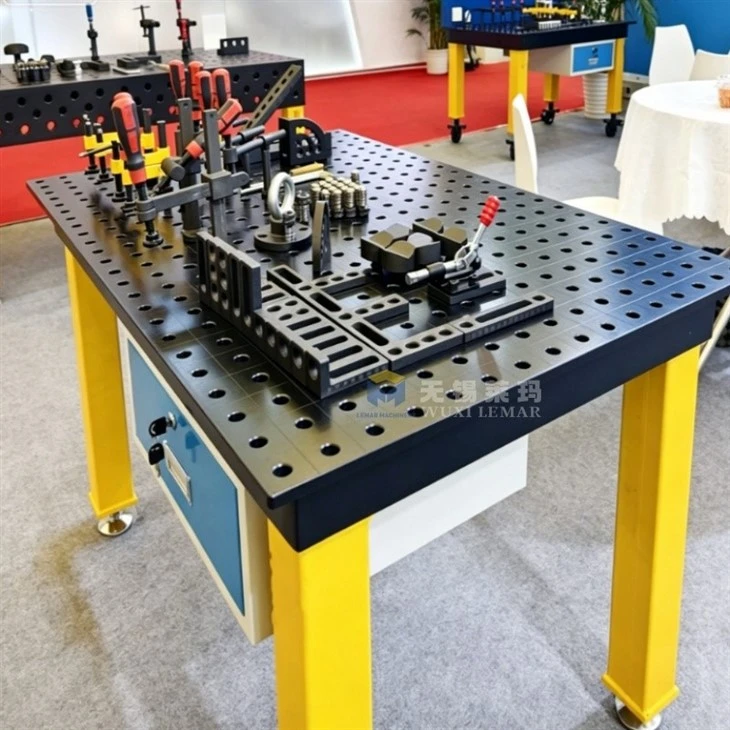

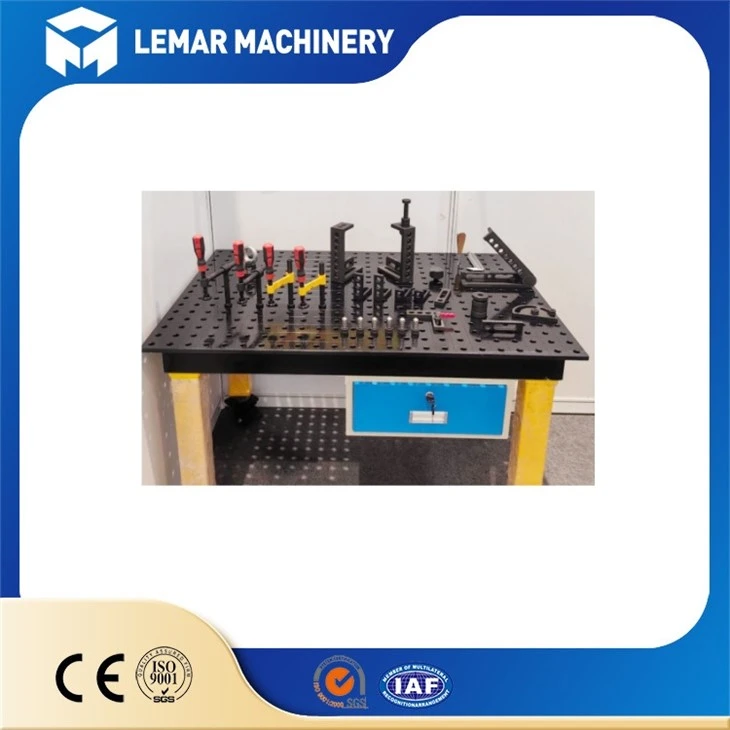

Integrated Heavy‑Duty 3D Welding Workstation With Built‑in Storage Drawers Our Welding Table With Drawers combines high‑precision perforated welding tabletop and heavy‑load drawer cabinet base into one complete workstation. Eliminate separate tool cabinets and tool carts, keep all your welding fixtures, locating pins, clamps, measuring tools and consumables neatly stored right underneath your working surface.
Built for daily heavy‑duty fabrication, batch welding, repair workshops and technical training workshops. The reinforced frame guarantees stable rigidity during clamping and welding operations, while industrial‑grade full‑extension drawers deliver convenient, secure on‑site storage. Custom‑built table dimensions, hole‑grid systems, drawer layouts and surface treatments are available to match your workshop requirements.
Overall structural composition

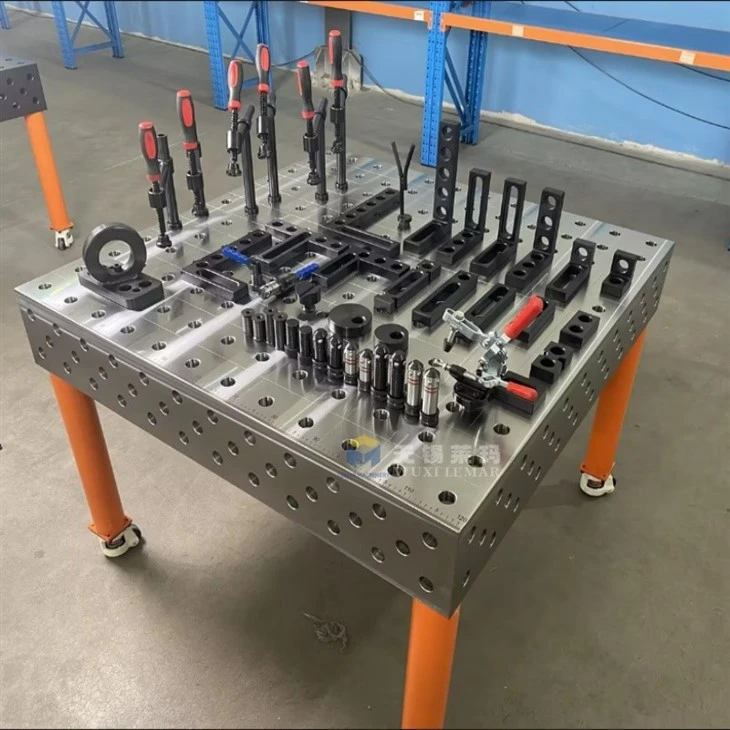

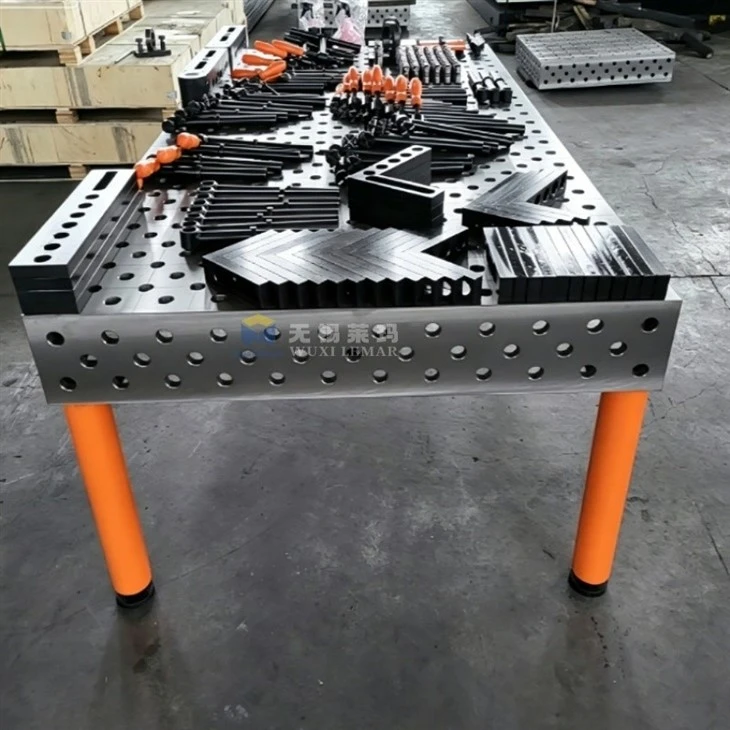

1. Welding Table Top Plate
- - Material: S355/Q345 steel, HT300 cast iron; high-end plasma nitriding treatment for resistance to weld spatter, wear resistance, and rust prevention.
- - Hole System: 50×50mm grid, hole diameter Φ16/22/28mm (D16/D22/D28), H7 precision boring tolerance, for quick clamping of tooling fixtures.
- - Flatness: Industrial grade ≤0.1mm/1000mm; high-precision robotic models can reach ≤0.05mm/1000mm.
- - Thickness: 10-25mm, determining load-bearing capacity and resistance to thermal deformation.
2. Base Frame
- Heavy-duty square tube welded frame, also serving as the drawer mounting base; cross-reinforcing ribs for overall deformation resistance; equipped with adjustable flat feet, casters optional for mobility.
3. Drawer System (Core Feature)
- - Quantity Configuration: Customizable with 2/3/4/6/8 drawers; drawer height options: 60mm, 100mm, 150mm, 200mm; thinner drawers for measuring tools and wrenches; taller drawers for heavy-duty clamps and positioning components.
- - Slides: Heavy-duty steel ball bearing slides, 75-100kg/single drawer, 85-90% full extension; high-end models include locks and soft-close mechanisms.
- - Optional Features: Lockable safety latches to prevent loss of valuable tools; foam dividers can be added inside drawers for tool organization.
- - Some models include side-opening storage cabinets for gas cylinders and large tools.
4. Surface Coating: Electrostatic powder coating, black/blue/gray, resistant to oil stains and welding slag.
Core advantages
✅ Saves workshop space: The welding table and tool cabinet are combined into one unit, eliminating the need for separate tool carts and cabinets.
✅ Improves work efficiency: Fixtures, pins, wrenches, and welding materials are conveniently located beneath the workbench, easily accessible without the need to walk around to retrieve tools.
✅ Protects precision tooling and measuring instruments: The drawers are enclosed, preventing welding slag, dust, and metal filings from contaminating positioning pins and angle blocks.
✅ Enhanced overall rigidity: The drawer cabinet base strengthens the overall rigidity of the workbench, further reducing surface wobbling during welding operations.
✅ Modular and customizable: The number of drawers, tabletop dimensions, hole specifications, and whether casters are included can all be OEM customized.
Shipping & Packaging
Customer Feedback Images - Real Cases
FAQ
Q: What hole systems are available for this welding table?
A: Standard 50×50 mm grid, available in D16 (Φ16 mm), D22 (Φ22 mm) and D28 (Φ28 mm) H7 tolerance locating holes. Custom inch‑size hole patterns are also supported.
Q: Can I put precision measuring tools inside the drawers?
A: Yes. Please note that heat transfers down from the tabletop during heavy‑duty long‑time welding. Protect calipers, digital angle gauges with foam cases before placing into drawers. Do not store heat‑sensitive plastic parts inside cabinet.
Q: How much weight can each drawer hold?
A: Industrial version drawers use 1.5 mm+ steel plates and full‑extension heavy‑load ball‑bearing slides. Each drawer rated 75‑100 kg. Heavy clamps and blocks should be stored in lower drawers.
Q: Can the drawers be locked?
A: Yes, lockable drawers with key are optional, ideal for shared workshop to secure expensive fixtures and tool sets. EVA foam inner liners for tool partitioning are also available.
Q: Will drawers affect table rigidity and flatness?
A: A properly reinforced base frame maintains overall rigidity. Drawer cabinet only provides storage function. Table flatness depends on tabletop material, stress‑relief treatment and CNC milling, not the drawers.
Q: Can I move the welding table around my workshop?
A: This unit is mainly designed for fixed workstation. If mobility is required, select the hybrid configuration: levelling feet plus lockable casters. Always lower levelling feet to bear load and lock casters during welding to keep accuracy.
Q: What surface treatment options do you offer?
A: Tabletop options: milled raw steel, plasma nitriding finish (highly recommended for anti‑spatter and wear‑resistance). Cabinet & drawers: powder‑coated painting against rust and oil contamination.
Contact us
Welding Table With Drawers delivers an all‑in‑one welding solution that combines precise fixturing performance with practical on‑board tool storage. Whether you need a standard model or fully customised dimensions, hole patterns and drawer configurations to fit your workshop layout, we are ready to support your project.
Get in touch with our team today to discuss your requirements, request detailed specifications, quotation or project reference cases.
📞 Contact our sales team now
📧 Email: amywang@lemarmetal.com
📞 Phone: +86 180 0619 3916
*All Lemar products come with a 12-month warranty against manufacturing defects. Bulk and OEM orders are welcome.*
