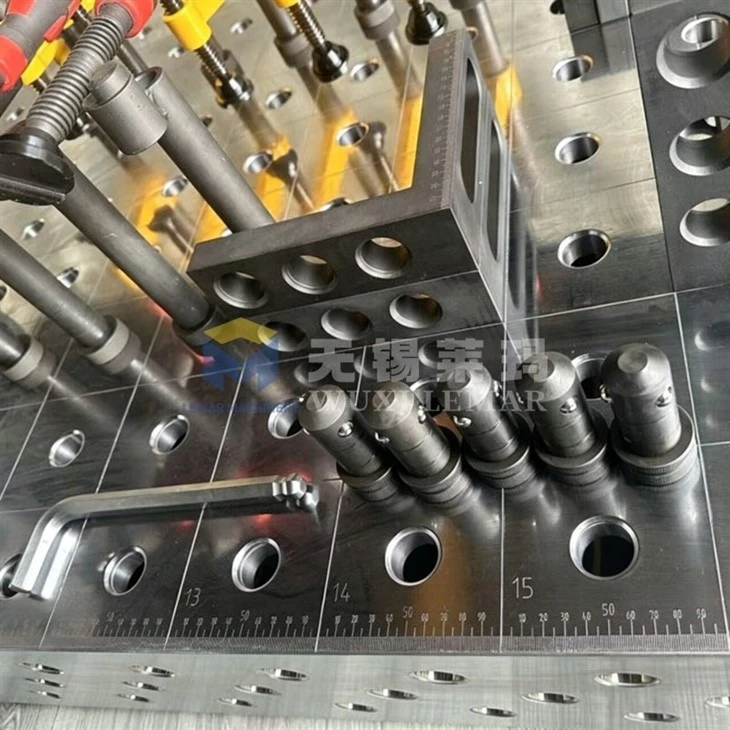

Precision 3D Welding Platform
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar
Product Introduction
Our Precision 3D Welding Platform delivers reliable positioning performance for modern fabrication workshops. Engineered for flexible fixture setup, this platform eliminates repeated measuring and marking during welding operations. The rigid base structure holds workpieces firmly to prevent shifting under welding heat and mechanical stress. Designed for mixed‑batch production, it supports fast reconfiguration for diverse workpiece shapes. Every unit undergoes strict dimensional inspection before shipment to guarantee consistent flatness and hole accuracy. It serves as a core workstation to boost welding repeatability and cut overall assembly time for metal fabrication businesses.
WUXI LEMAR MACHINERY
Tel: +86 510 88886966
Phone:+8615995269947
Email:evasummer@lemarmetal.com
Address: NO.280-25 Xicheng Road,Liangxi District Wuxi,CN
Product Parameters
main advantages
High‑Repeatability Locating Performance Precision‑machined locating holes grant consistent positioning for every workpiece. Operators obtain identical assembly outcomes across repeated batches, lowering reject rates caused by positioning deviation.
Robust Anti‑Distortion Base Structure High‑strength cast iron main body absorbs welding thermal stress effectively. The platform resists permanent deformation under long‑term heavy‑load workshop operation, preserving working geometry year after year.
High Flexibility for Mixed‑Batch Fabrication Modular hole grid supports quick rearrangement of clamps, supports and locating pins. Switching from one workpiece project to another takes minimal time without custom‑made dedicated jigs.
Outstanding Surface Wear Resistance Special surface treatment defends against arc scratches, friction and thermal damage from welding processes. The platform maintains usable surface condition even under high‑frequency daily production cycles.
Seamless Compatibility With Expanded Accessories Matches complete series of modular fixture parts. Users can expand clamping combinations freely according to changing production requirements without modifying the platform body.
Competitive advantages
Other suppliers:
The mold is rough and of poor quality, with poor precision and low flatness.
WUXI LEMAR:
Manufactured using CNC machine,the bottom is reinforced with dense and strong ribs,
providing effective support for the welding table.
Customer Feedback
Certification & Factory Inspection
routine maintenance
Daily
-Clean the countertop, welding slag in the holes, and metal debris; Do not polish vigorously directly on the countertop
-Spray anti splash agent to reduce the adhesion of welding slag
Weekly
-Lock pin cleaning, a small amount of high-temperature grease
Every 6-12 months
-Use a level to recheck the flatness
Prohibited acts
❌ Do not directly pour water onto the Flexible Welding Fixture Table (cast iron is prone to rusting)
❌ Prohibit heavy objects from falling from high altitude and impacting the tabletop
❌ Prohibit long-term single point overload and concentrated heavy pressure
Nitriding Flexible Welding Fixture Table should not be forcibly polished with oilstone, as it will damage the hardened surface layer
FAQ
FAQ
Q1: What decides the flatness performance of this 3D welding platform?
Q2: Can I mix‑use existing old fixtures with this precision platform?
Q3：Does this platform support customized outer dimensions for special projects?
Contact Us
Searching for a dependable precision 3D welding platform to upgrade your metal fabrication efficiency? Our engineering team is ready to analyze your actual production scenarios and recommend suitable platform solutions together with matched accessory combinations. Send over your workpiece information or project demands right now, and we will reply with targeted suggestions and detailed quotation without delay.
Email: evasummer@lemarmetal.com
WhatsApp/Wechat: +8615995269947
