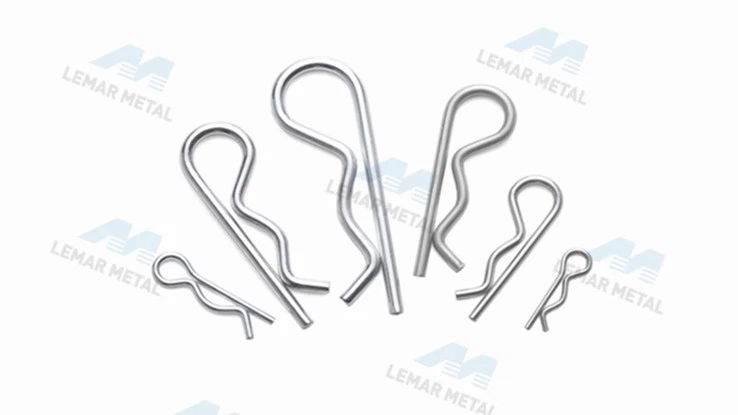

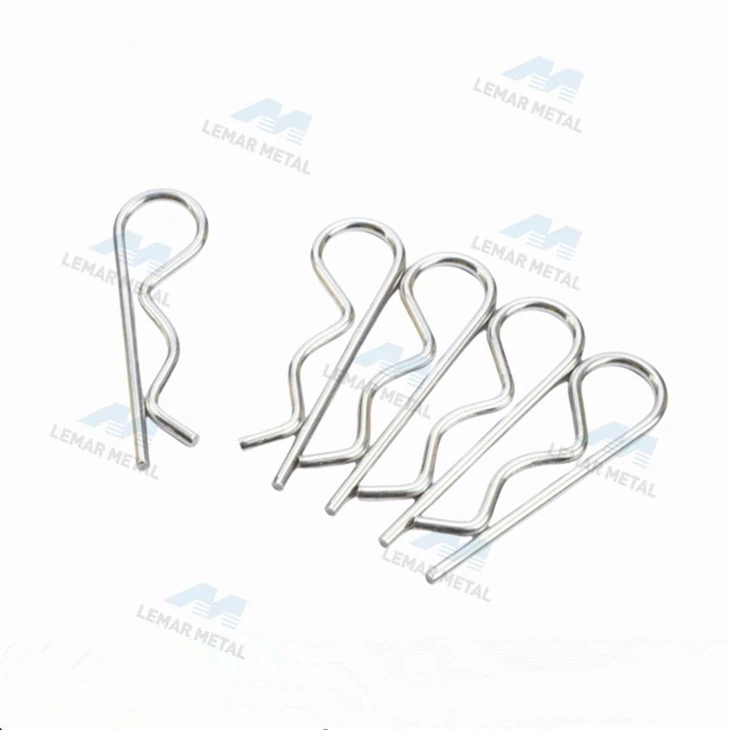

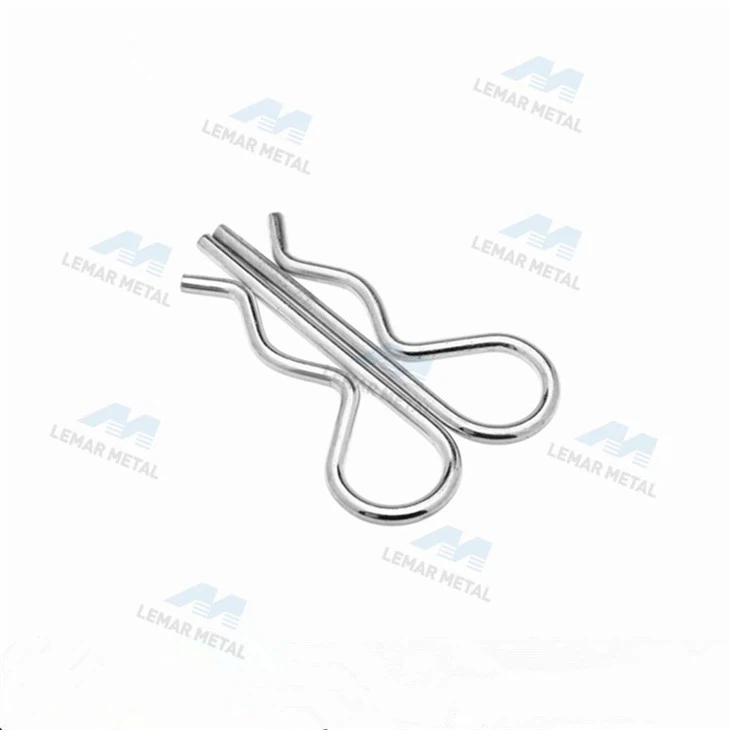

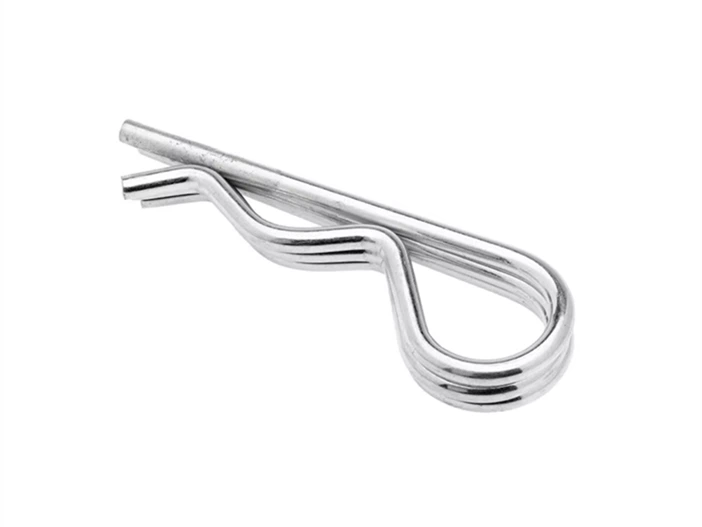

R Retaining Pin

No.:LM-1481
Pin Type:Hitch,Cotter
Material:Stainless Steel
Surface Treatment:Zinc plating\Nickel plating

Send Inquiry

Core function of R Retaining Pin is to firmly connect two or more parts, effectively preventing relative movement or loosening between components. At the same time, thanks to its opening design, the pin also shows good elasticity, making the disassembly and reconnect easy.

Shape

According to shape and position of the opening, the pin can be divided into many types, such as B type and R type.

Standard

These types have different characteristics, different shapes, structures and use methods, which uniformly follow GB / T91-2000 standard, and their nominal specifications cover range of 0.6 to 20mm.

Correct installation method

For R Retaining Pin includes the following steps:

First

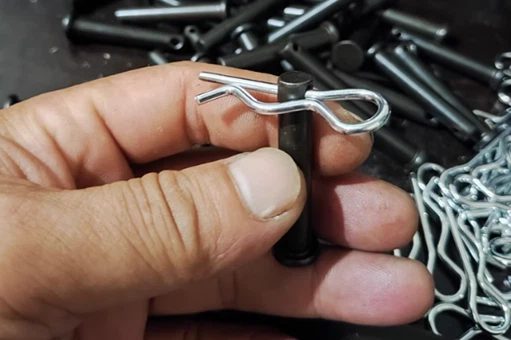

Carefully insert R Retaining Pin into cylinder pin with a hand or pliers to avoid forced penetration with tools such as a hammer.

Second

Use a screwdriver to gradually break feet of the pin, after Angle is usually 60, and it can also be rolled up to accommodate space.

Third

Ensure that the two parts of the open pin remain flat and symmetrical, avoiding varying lengths or bending.

Products Advantages

Core strengths

Choose the plan that suits you best.

Wide application range:

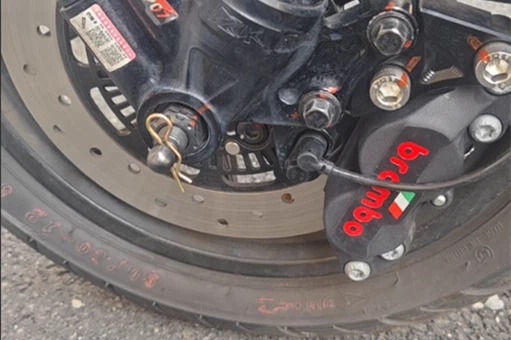

R retaining pin is suitable for a variety of occasions, such as cars, trailers, baby carts, shelves, scaffolding, agricultural machinery, coal mine, etc., its unique R-type design makes it can play a good connection and fixed role in different applications.

Good connection stability:

The shape and structural design of the pin help to provide stronger connection stability and adaptability , Its R-shaped design can adapt to a variety of occasions to ensure the firmness and stability of the connection.

A variety of material choices:

R-type open pin materials, including low carbon steel, 45 # steel, spring steel, 304 stainless steel, etc., according to the specific application scene to choose the appropriate material, can ensure its stability and durability in various environments.

Convenient installation:

Although the installation method of the pin will vary according to the specific shape and structure design, its design makes the installation process relatively simple and easy to operate and maintain.
