3D Welding Jig Table
Application:Welding&Assemble
Process:CNC Machining
Surface:Normal/Nitrided
Contact us for Quote:Eva(WA:+8615995269947 Evasummer@lemarmetal.com)
Type:3D
Brand:Lemar
iMPROVING YOUR WELDING EFFICIENCY
By using Lemar welding tables
Products Description
3D Welding Jig Table is a revolutionary modular tooling system that deconstructs the traditional "special-purpose welding fixture" into a combination of "standardized platform + modular components". Its core is a workbench with a high-precision matrix-type grid hole system. By matching with hundreds of standardized functional components, it realizes rapid, precise, and repeatable three-dimensional spatial positioning and clamping of welded workpieces.
Our address:505-1 NO.8 JIEFANG WEST ROAD,LIANGXI DISTRICT,WUXI,CHINA
Phone Number:+86 159 952 699 47(Eva)
Evasummer@lemarmetal.com
Products Size
Products Type
Products Component
| System Core Components | Description |
|---|---|
| 1. Base Platform | |
| Material | High-strength nodular cast iron or high-quality steel structure, stress-relieved and precision machined |
| Work Surface | Covered with standardized grid holes (common pitch: 100mm, 50mm, 28mm) |
| Precision Grade | Surface flatness and hole pitch accuracy typically within ±0.05mm/m |
| 2. Grid Hole System | |
| Types | Mainly D28 series (28mm hole pitch) and 16mm series (16mm or 100mm hole pitch) |
| Structure | Square holes + counterbore design, matched with trapezoidal or T-slots |
| Function | Each hole serves as both a connection point and a coordinate point, forming a spatial coordinate system |
| 3. Modular Function Component Library | |
| Support Components | Various height blocks, angle blocks, V-blocks |
| Positioning Components | Positioning pins, positioning stops, planar limit blocks |
| Clamping Components | Manual/pneumatic quick clamps, screw clamps |
| Connection Components | U/L-shaped connecting plates, platform extension connectors |
| Special Attachments | Special fixtures for pipes, sheets, irregular-shaped parts |
Products Application
Manufacturing Field
• Automotive Manufacturing: Trial production of body-in-white, welding of chassis parts, battery trays for new energy vehicles
• Aerospace: 3D Welding Jig Table is used for wing ribs, engine brackets, spacecraft structural components
• Rail Transit: Bogies, car body frames, interior frameworks
• Construction Machinery: Excavator booms, crane outriggers, pump truck frames
Production Modes
• R&D and Trial Production: Rapid verification in the new product development stage
• Small-batch and Multi-variety: Mixed-line production, order-based manufacturing
• Tooling Verification: Process verification before large-scale investment in special tooling
• Maintenance and Modification: An ideal solution for non-standard parts and single-piece production

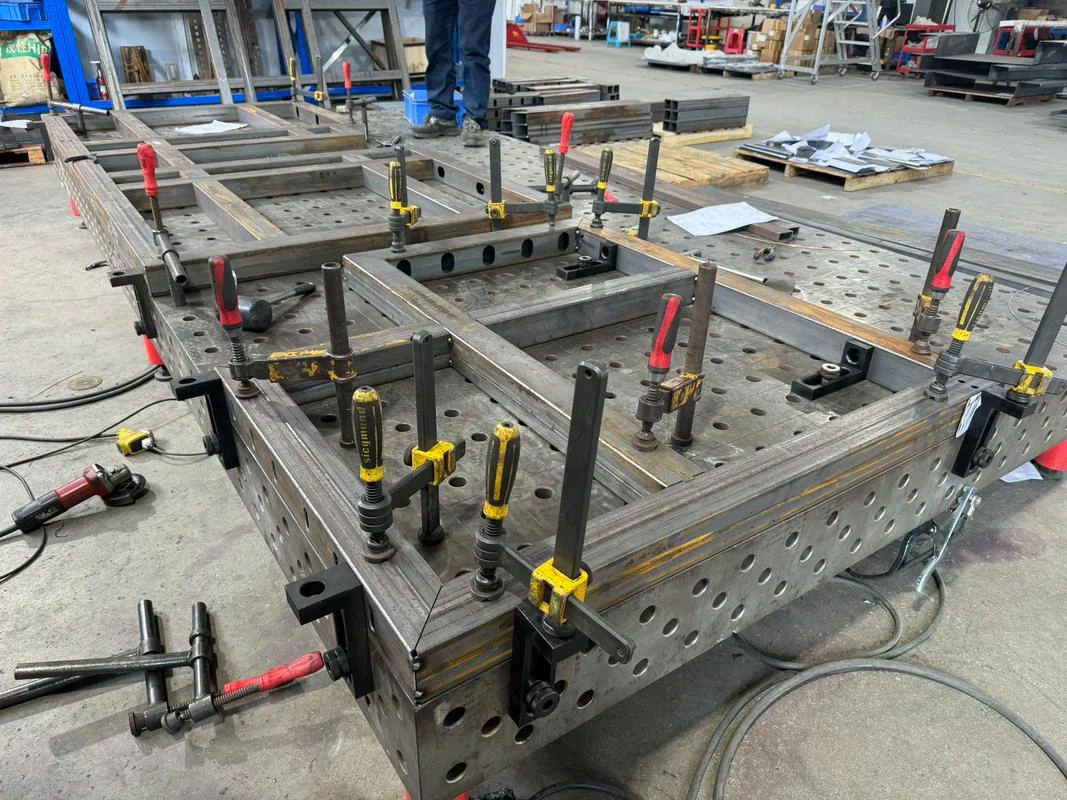

Products Display
FAQ
FAQ
01.What's the lead time for orders?
02.What kind of packaging should we use?
We use fumigation-free wooden crates that meet export standards for packaging.
03.What documents do you provide for export?
04. How do I place an order?
05.Would it be possible for us to visit your factory ?
Products certification
Customer Review
After Sales Service
We are always at your service when you need
★Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
★Extended Warranty: Optional coverage up to 36 months.
★Global Support: 24/7 technical assistance and spare parts supply.
★Training: On-site or remote operation/maintenance training.
3D Welding Jig Table is not just a tool innovation, but also a revolution in production concepts.For modern manufacturing enterprises, the adoption of 3D welding flexible tooling platforms is no longer a question of "whether" but of "when" and "how". It represents the inevitable trend of welding tooling developing from specialization and rigidity to modularization, flexibility, and intelligence, and is a key technological investment for enterprises to build agile manufacturing capabilities and respond to rapid market changes.
