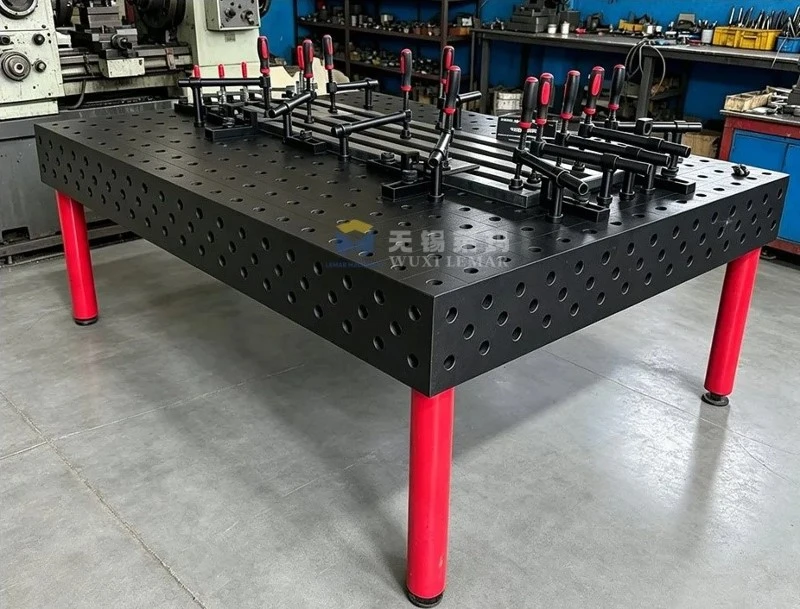

Heavy Duty Welding Jig Table
Material:Q355 Steel
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Nitrided
Type:3D D28
Size:1000*2000mm
Brand:Lemar
Contact Us:Eva(+8615995269947/Email:evasummer@lemarmetal.com)
WUXI LEMAR
Product Overview
Our Heavy Duty Welding Jig Table, also known as 3D Modular Welding Fixture Table, is a high-precision, stress-relieved work platform built for heavy fabrication, robotic welding and assembly. Equipped with standard grid hole system (D16 / D28), this modular jig table enables fast, repeatable positioning and clamping for a wide range of workpieces. It eliminates the need for custom one-off welding fixtures, shortens changeover time and guarantees consistent dimensional accuracy for batch production. Available in nitrided Q355 steel or HT300 cast iron, our welding jig table delivers outstanding rigidity, anti-spatter performance and heavy load capacity for demanding industrial workshops.
Two major standard hole patterns
| Model | Hole Diameter | Grid Pitch | Application Scenarios | Static Load Capacity Per Leg |
|---|---|---|---|---|
| D16 Welding Table | Φ16 mm | 50 × 50 mm | Medium & Small Workpieces, Sheet Metal, Small Frame Fabrications | 900–1000 kg |
| D28 (Heavy Duty Welding Jig Table) | Φ28 mm | 100 × 100 mm | Heavy Steel Structures, Construction Machinery, Large Frames, Robotic Welding | 900–1000 kg; Total Table Static Load Capacity: 3–10 Tons |
- Table flatness: 0.02mm/m
- Hole spacing accuracy: ± 0.05mm
- Repetitive positioning accuracy: ± 0.02mm
- The verticality and parallelism of the tabletop are strictly machined, and the side is also perforated (3D welding table can be used on five sides), supporting vertical clamping of workpieces
Standard supporting tooling accessories
The entire tooling system includes compatibility with D16/D28 hole systems:
- Positioning pins: cylindrical pins, diamond shaped anti mistake pins
- Positioning block, L-shaped angle ruler, angle locator, V-shaped support block
- Quick clamping fixture, screw clamp, connecting pressure plate, locking bolt
- Adjustable height support block, height increasing cushion block, splicing connection plate
- Optional: magnetic fixture, pneumatic/hydraulic clamping module, robot adapter base, flipping fixture
.
Shipping & Packaging
Customer Feedback Images - Real Cases
Core Advantages
1. Flexible and versatile: One set of Heavy Duty Welding Jig Tables is suitable for dozens or even hundreds of products, reducing production time from a few days to just a few minutes, making it suitable for small batch production of multiple varieties
2. High precision repeatability: Batch product size stability, reducing post weld correction and polishing rework
3. Strong rigidity under heavy loads: resistant to welding thermal deformation, impact resistance, and able to withstand the weight and welding stress of heavy components
4. Scalable splicing: Multi platform splicing to meet the needs of ultra large steel structure workpieces
5. Compatible with automation: can directly interface with robot welding workstations to create a benchmark platform for robot welding
6. Multi functional: In addition to welding, it can also be used for assembly, dimensional inspection, marking, and polishing fixture benchmarks
Contact us
Ready to upgrade your welding workstation with a durable Heavy Duty Welding Jig Table?
Share your project details, and we will reply with custom options and competitive pricing. Send your inquiry now.
📞 Contact our sales team now
📧 Email: amywang@lemarmetal.com
📞 Phone: +86 180 0619 3916
*All Lemar products come with a 12-month warranty against manufacturing defects. Bulk and OEM orders are welcome.*
