Industrial Welding Tables
Application:Welding&Assemble
Process:CNC Machining
Surface treatment:Normal/Nitrided
Type:3D
Brand:Lemar

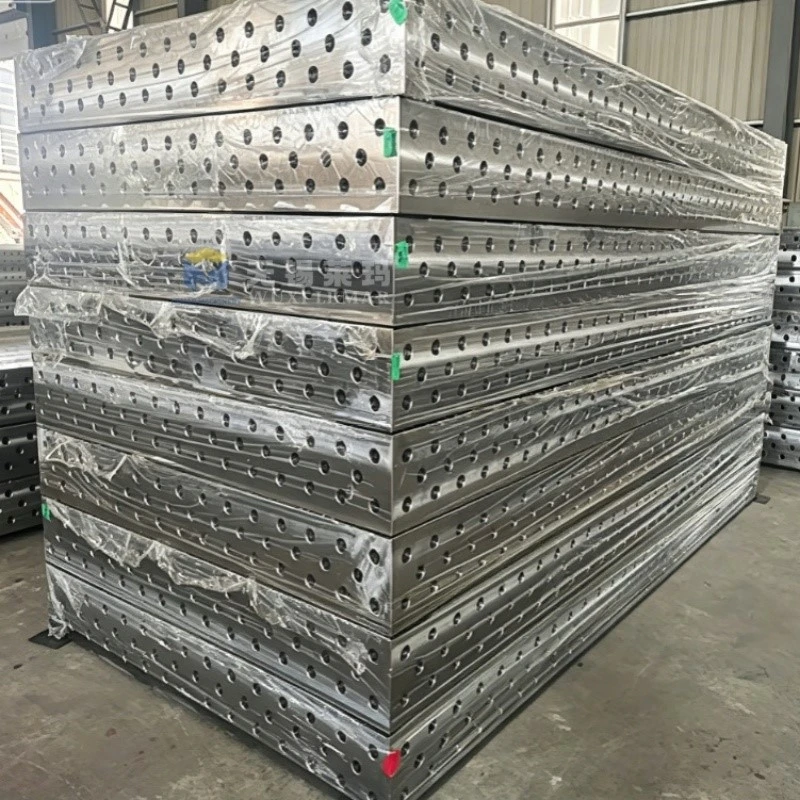

Product Overview

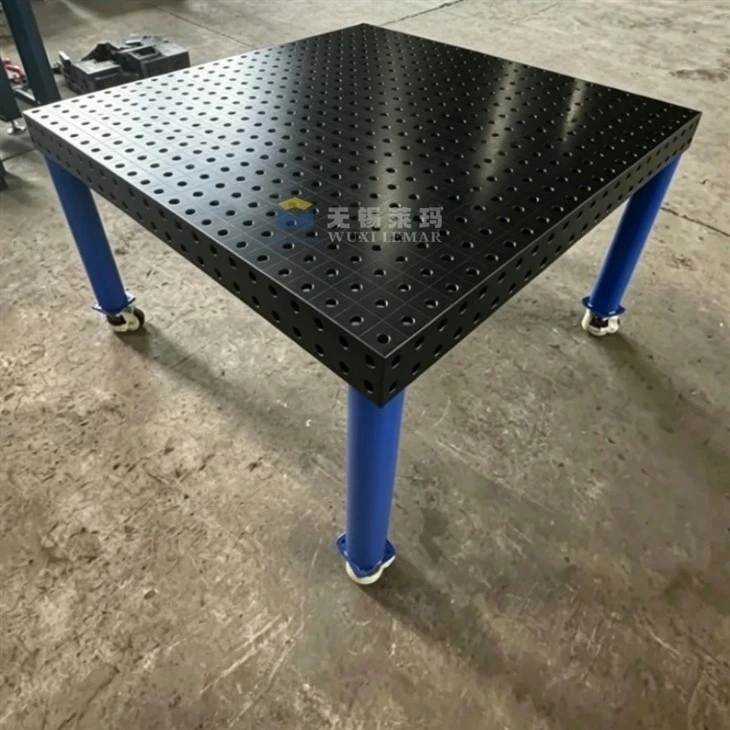

Our industrial 3D flexible welding table is a high-precision modular welding workbench designed for modern metal fabrication, welding assembly, and robotic welding stations. Compared with traditional fixed jigs and ordinary flat welding tables, this 3D system provides full-dimensional positioning, ultra-high repeat accuracy, and unlimited reusability for small-batch, multi-style, and custom metal workpieces.
Widely used in automotive frames, mechanical structures, sheet metal cabinets, pipe welding, energy equipment, and robotic welding lines. All Industrial Welding Tables comply with EU CE safety standards and are fully compatible with global standard D16 / D28 modular fixture systems.
Standard Size Chart
| Table Size (L×W mm) | Grid Standard | Side Verticality | Flatness Tolerance |
| 1000 × 1000 | 50×50mm / 100×100mm | ≤0.1mm / 200mm | 0.05-0.1mm / 1000mm |
| 1000 × 1200 | 50×50mm / 100×100mm | ≤0.1mm / 200mm | 0.05-0.1mm / 1000mm |
| 1000 × 1500 | 50×50mm / 100×100mm | ≤0.1mm / 200mm | 0.05-0.1mm / 1000mm |
| 1000 × 2000 | 50×50mm / 100×100mm | ≤0.1mm / 200mm | 0.05-0.1mm / 1000mm |
| 1200 × 2000 | 50×50mm / 100×100mm | ≤0.1mm / 200mm | 0.05-0.1mm / 1000mm |
| 1200 × 2400 | 50×50mm / 100×100mm | ≤0.1mm / 200mm | 0.05-0.1mm / 1000mm |
| 1500 × 2000 | 50×50mm / 100×100mm | ≤0.1mm / 200mm | 0.05-0.1mm / 1000mm |
| 1500 × 3000 | 50×50mm / 100×100mm | ≤0.1mm / 200mm | 0.05-0.1mm / 1000mm |
| 4000 × 2000 | 50×50mm / 100×100mm | ≤0.1mm / 200mm | 0.05-0.1mm / 1000mm |
D16 & D28
System D16 Full Specifications
Hole diameter: Φ16mm Standard grid spacing: 50mm × 50mm Hole machining tolerance: H7 tolerance range, upper deviation +0.015mm, lower deviation 0mm Matching locating pin diameter: Φ16mm with g6 precision fit Minimum required tabletop thickness: ≥12mm Common standard tabletop thickness options: 16mm, 20mm
System D28 Full Specifications
Hole diameter: Φ28mm Standard grid spacing: 100mm × 100mm Hole machining tolerance: H7 tolerance range, upper deviation +0.021mm, lower deviation 0mm Matching locating pin diameter: Φ28mm with g6 precision fit Minimum required tabletop thickness: ≥20mm Common standard tabletop thickness options: 25mm, 30mm, 40mm
Core Advantages
Competitive advantage
Ultimate Flexibility and Versatility
A single industrial welding table replaces dozens of dedicated fixtures, boosting efficiency by 80% for high-mix, low-volume production and prototyping; new product changeovers require no mold or custom tooling fabrication, significantly shortening R&D cycles.
01
High Precision, Low Rework
Standardized hole-pattern positioning effectively minimizes thermal deformation during welding and keeps weld dimensional errors under control; rework rates drop by 35%, ensuring high consistency across batch production.
02
Long-Term Cost Reduction
Fixtures are infinitely reusable, eliminating the high costs associated with manufacturing and storing dedicated tooling and reducing overall production costs by over 40%; modular components require 90% less storage space.
03
Automation-Ready
Seamlessly integrates with welding robots, laser cutting systems, and vision inspection equipment to form fully automated flexible welding workstations; meets modern smart manufacturing standards and comes with CE safety certification as standard for export.
04
Durable and Easy to Maintain
Nitrided or cast iron surfaces withstand high-temperature weld spatter and are easy to clean; standardized hole-pattern components are globally compatible and easy to replace, ensuring a service life of over 10 years.
05
Our Products
Certification
Key Points for Selection
Bore Selection: Choose D16 for small precision parts and D28 for heavy-duty steel structures.
Material: Choose HT300 cast iron for general high-volume applications, and nitrided alloy steel tables for high-end automated production lines.
Precision Grade: Choose Grade 0 or 00 for precision mass production, and Grade 1 or 2 for standard structural components.

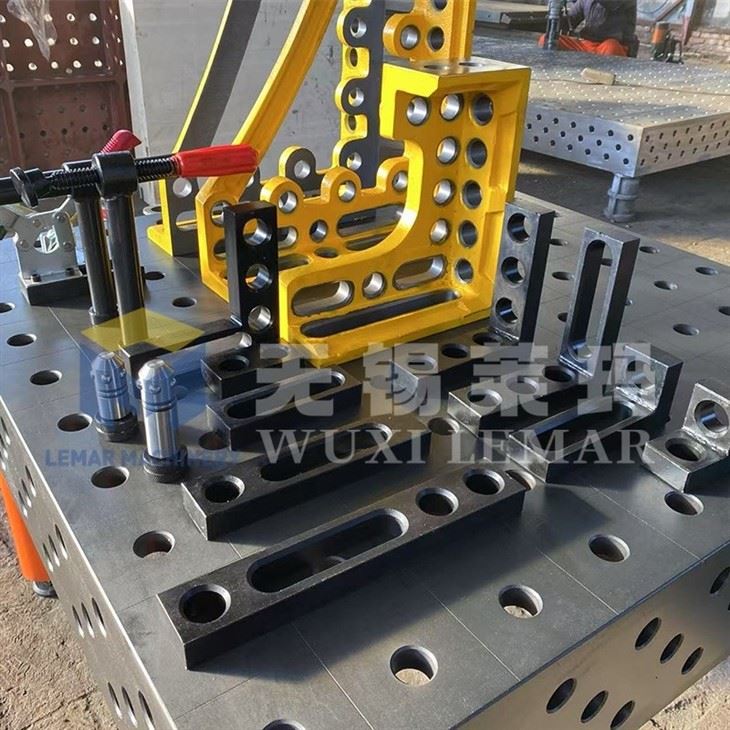

Fixture Configuration: Manual fixtures are suitable for small-batch production, while pneumatic or hydraulic fixtures are compatible with robotic assembly lines.
Certification: CE certification is mandatory for export to the EU; a complete technical manual in English must be provided.
Contact us
Choose our Industrial Welding Table with D16 or D28 system to cut jig costs, boost welding accuracy and streamline your production line. Feel free to contact us for detailed catalogs and factory direct prices.
