Perforated Welding Fixture Table
Product Overview

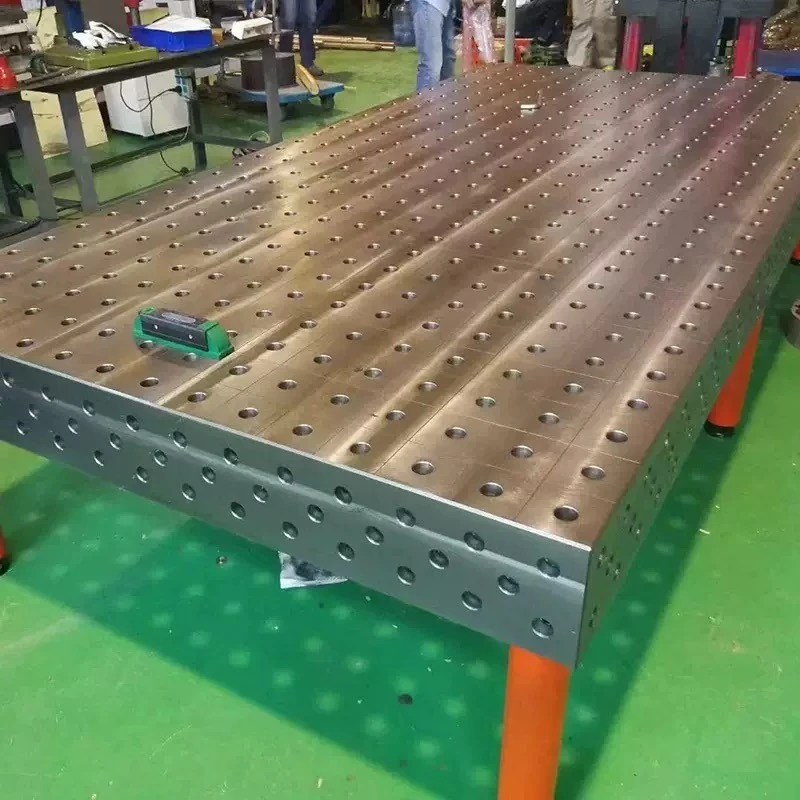

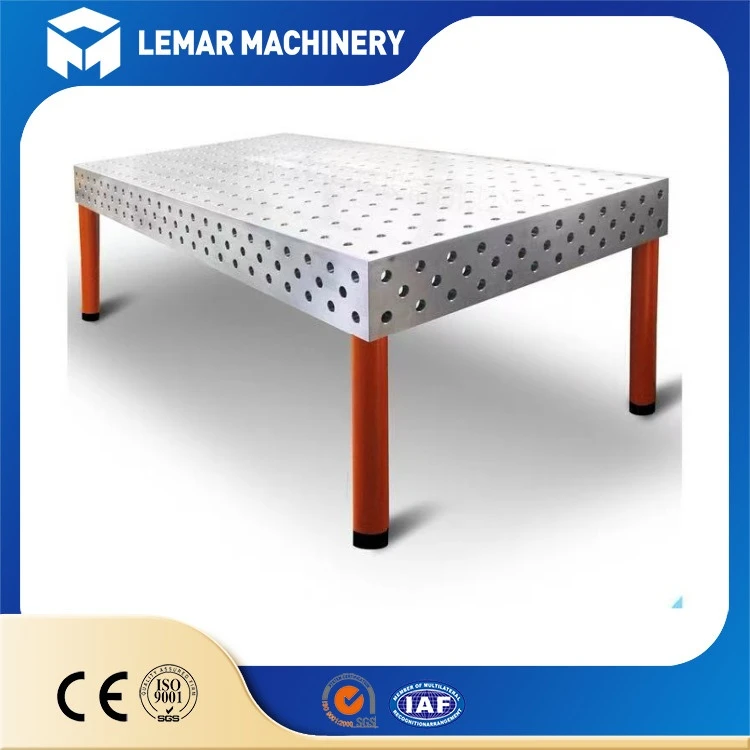

The perforated welding fixture table is a modular grid clamping fixture system for metal fabrication. With regularly perforated datum holes, it serves as a universal fixture base for positioning, tacking, welding, assembly and dimensional checking.
This fixture table is available in 2D single-sided and 5-sided 3D construction. Two standard hole systems are optional: D16 (φ16mm, 50×50mm grid) and D28 (φ28mm,100×100mm grid). Surface options: raw steel or nitrided finish.
All modular clamping components including clamps, locators, stops, angle brackets and support blocks are fully compatible, forming a flexible fixture solution without custom dedicated jigs.
Products Parameters
| Item | D16 Model Welding Table | D28 Model Welding Table |
|---|---|---|
| Hole Diameter | φ16 mm | φ28 mm |
| Grid Spacing | 50 × 50 mm | 100 × 100 mm |
| Structure Type | 2D Single-sided / 5-sided 3D | 2D Single-sided / 5-sided 3D |
| Table Flatness | ≤0.1 mm / 1000 mm | ≤0.1 mm / 1000 mm |
| Material | Q355 Steel / Cast Steel | Q355 Steel / Cast Steel |
| Stress Relief | Yes | Yes |
| Compatible Parts | Clamps, Locators, Stops, Angle Brackets | Clamps, Locators, Stops, Angle Brackets |
| Load Capacity | Customized by table size | Customized by table size |
| Main Application | Precision assembly, small sheet metal parts | Trailer frame, chassis, heavy machinery parts |
Core Advantages
-
Precision Datum Grid

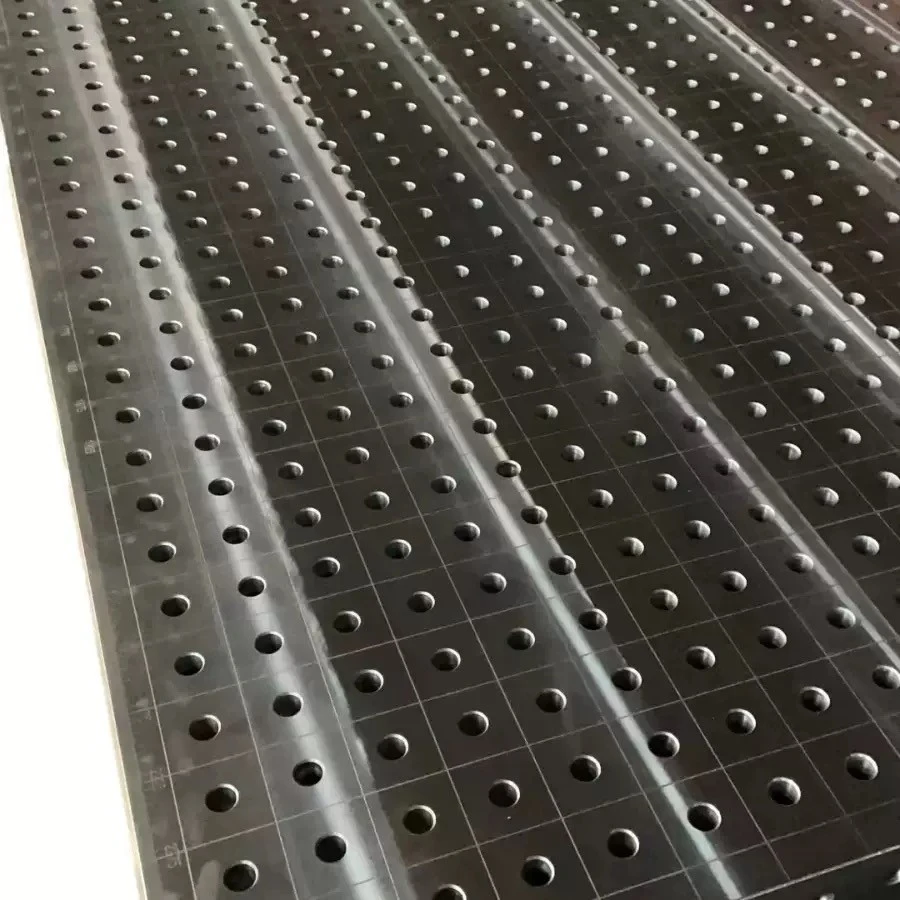

The perforated welding fixture table features CNC-machined hole grid with tight tolerances. Standard datum holes enable flexible mounting of clamps, locating pins and stops anywhere on the table to fulfill various positioning requirements.
-
Flexible Modular Clamping
This perforated welding fixture table is fully compatible with standard modular accessories. Fixture layout can be quickly adjusted for different workpieces, cutting the high cost of custom one-off jigs.
-
Excellent Stability
The perforated welding fixture table body is stress-relieved to minimize thermal deformation during welding. Optional nitrided surface delivers excellent wear resistance and anti-spatter property for easy slag cleaning.
-
Consistent Repeat Positioning
With uniform standard hole grid, the perforated welding fixture table ensures stable repeat positioning accuracy. It serves as an ideal fixture base for robotic welding lines and mass production.
Application Fields
Application Scenarios for Perforated Welding Fixture Table
The perforated welding fixture table is widely used for sheet metal fabrication, automotive and new energy components, motorcycle frames, trailer chassis, agricultural machinery, construction machinery, steel structures, metal furniture, prototype development and robotic welding stations.
FAQ
Q1:What hole systems are available for the perforated welding fixture table?
D16 (φ16mm, 50×50mm grid pitch) and D28 (φ28mm, 100×100mm grid pitch) are optional. D16 for small precision parts, D28 for heavy large workpieces.
Q2:Which structure types can I choose?
2D single-sided type and 5-sided 3D type. The 3D version has side holes for multi-angle spatial clamping.
Q3:Is the perforated welding fixture table compatible with other brands' accessories?
Our accessories follow international D16 / D28 standard, compatible with most standard modular accessories of the same specification on the market.
Certification & Factory Inspection
Maintenance Tips
Clear welding slag inside perforated holes regularly to keep the datum clean.
Avoid heavy impact and direct hammering on the table surface.
Check flatness periodically after long-time heavy use.
Lubricate movable clamping accessories as required.
Contact Us
We provide high-quality perforated welding fixture table together with professional technical service.
We are committed to offering suitable and cost-effective welding fixture solutions for your production. Please feel free to send us your inquiry.
